5

Knob kit (service piece no. 5010247) The knob kit

includes four 1/4 in. flat washers and two 1/4-20 threaded

knobs, which are installed onto both sides of the display

when it is mounted in the CB style.

Plastite

®

screws – The CB style mounting kit includes

four #10 Plastite

®

screws, each 1/2 in. long. Depending on

the chosen CB mount, the screws are used to attach the

mounting brackets to either the headliner or dashboard of

the vehicle.

FRICTION HINGE MOUNTING KIT (PIECE NO.

5010082)

Friction hinge mounting allows the driver to use the sun

visor during the day and the Bendix

®

XVision

®

Night Vision

system at night. The display pivots on a pair of friction

hinges, similar to a vehicle sun visor. The hinges allow the

display to be flipped out of the way of the visor and latched

into either position by use of a magnet and striker plates.

The friction hinge mounting kit includes the following items.

Hinge Supports – Two hinge supports secure the display

to the vehicle headliner when the friction hinge mount is

used. The hinge supports are fastened to the headliner with

four #10 Plastite

®

pan head screws and to the display with

two M2.5 threadroll pan head screws.

Magnet Kit (piece no. 5010524) – The magnet kit includes

a magnet, striker plates, spring, and hardware. The magnet

and spring are attached to the display, and one (1) striker

plate is fastened to the vehicle headliner. The other striker

plates (2) sandwich the sun visor.

Screw and Shim Kit (piece no. 5010249) The screw

and shim kit includes twelve #10 Plastite

®

pan head screws

and twelve spacer blocks. The screws are used to fasten

the friction hinge supports to the vehicle headliner and are

supplied in three different lengths. The spacer blocks can

be used to level the friction hinge supports, if necessary.

Based on the number of spacers needed to level out the

mount, use either the 1/2 in., 3/4 in., or 1 in. long screws.

CB Style (Overhead)

CB Style (Dashboard)

Mounting Brackets

Mounting Brackets

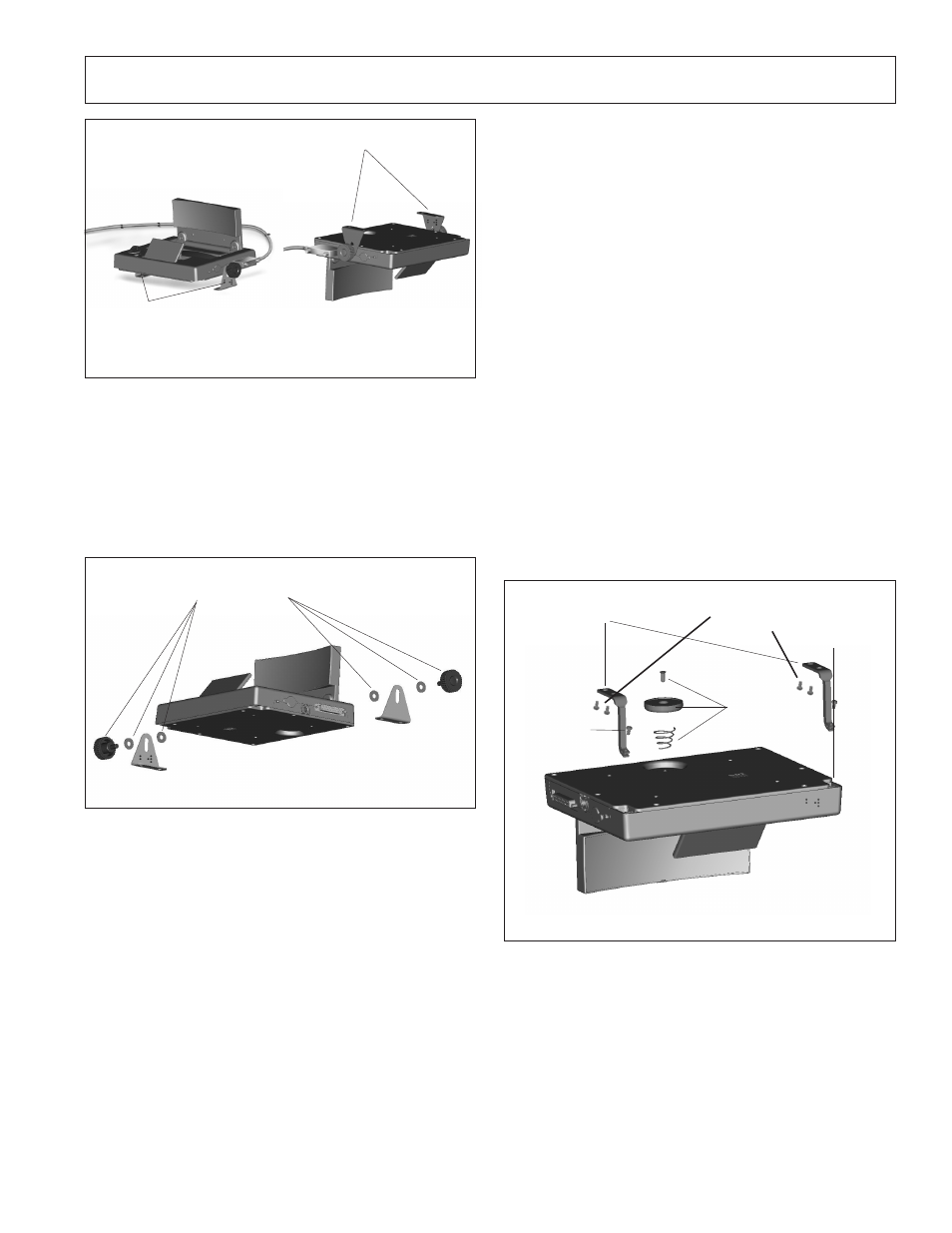

FIGURE 5 - CB MOUNTING BRACKETS

FIGURE 6 - KNOB KIT COMPONENTS

Knob Kit Compo-
nents

Hinge Supports

Magnet Kit
Components

M2.5 Threadroll
Pan Head Screw

M2.5 Threadroll

Pan Head Screw

FIGURE 7 - FRICTION HINGE MOUNTING KIT

COMPONENTS

#10 Plastite Pan Head

Screws (Qty. 4)

Parts/kits listed are now obsolete and are no longer serviceable through Bendix.
