Publication GMSI10-UM004B-EN-P - May 2010
Installing the XM-220 Dual Speed Module 33

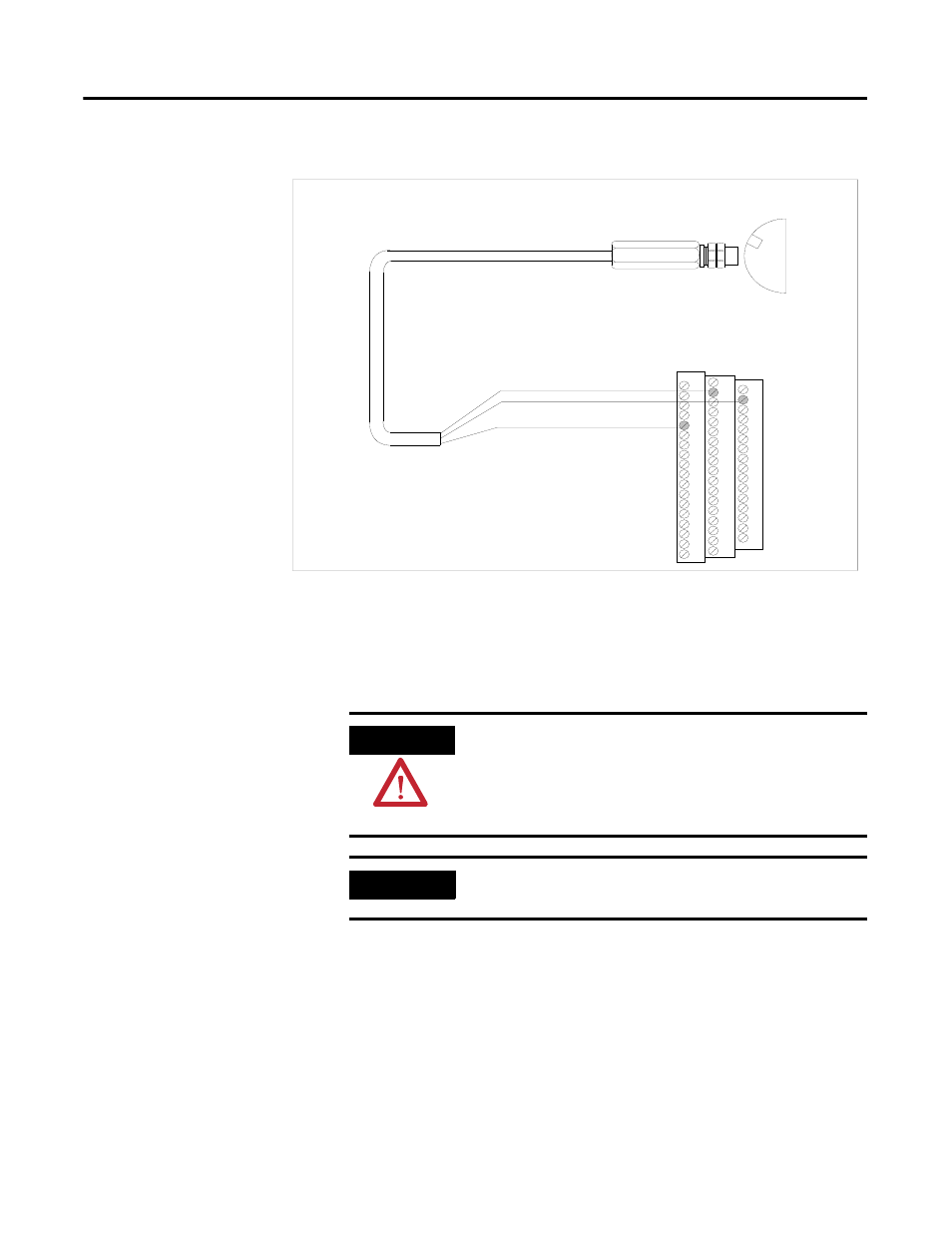

Figure 2.22 Magnetic Pickup to Channel 2 Wiring
Connecting a TTL Output Device
The figures below show the wiring of a TTL output device to the terminal
base unit.
Signal Common
Channel 2 Input Signal
Shield
17
1
38
Cable shield not
connected at this end
T Y P I C A L W I R I N G F O R M A G N E T I C P I C K U P S E N S O R
T O X M - 2 2 0 D U A L S P E E D M O D U L E C H A N N E L 1
ATTENTION
You may ground the cable shield at either end of the cable.
Do not ground the shield at both ends. Recommended
practice is to ground the cable shield at the terminal base
and not at the transducer. Any convenient Chassis terminal
may be used (see Terminal Block Assignments on page 18).
IMPORTANT
The internal transducer power supply is providing power to
the TTL device.
