Rockwell Automation Publication GMC-RM008A-EN-P - September 2011 73
Ultra3000 Drive Systems
LDL-Series Performance Specifications with Ultra3000 (200V class) Drives (continued)
Performance specification data and curves reflect nominal system performance of a typical system with motor at 40 °C (104 °F) and drive at 50 °C (122 °F) ambient and rated line voltage. For additional
information on ambient and line conditions, refer to Motion Analyzer software, version 4.7 or later.

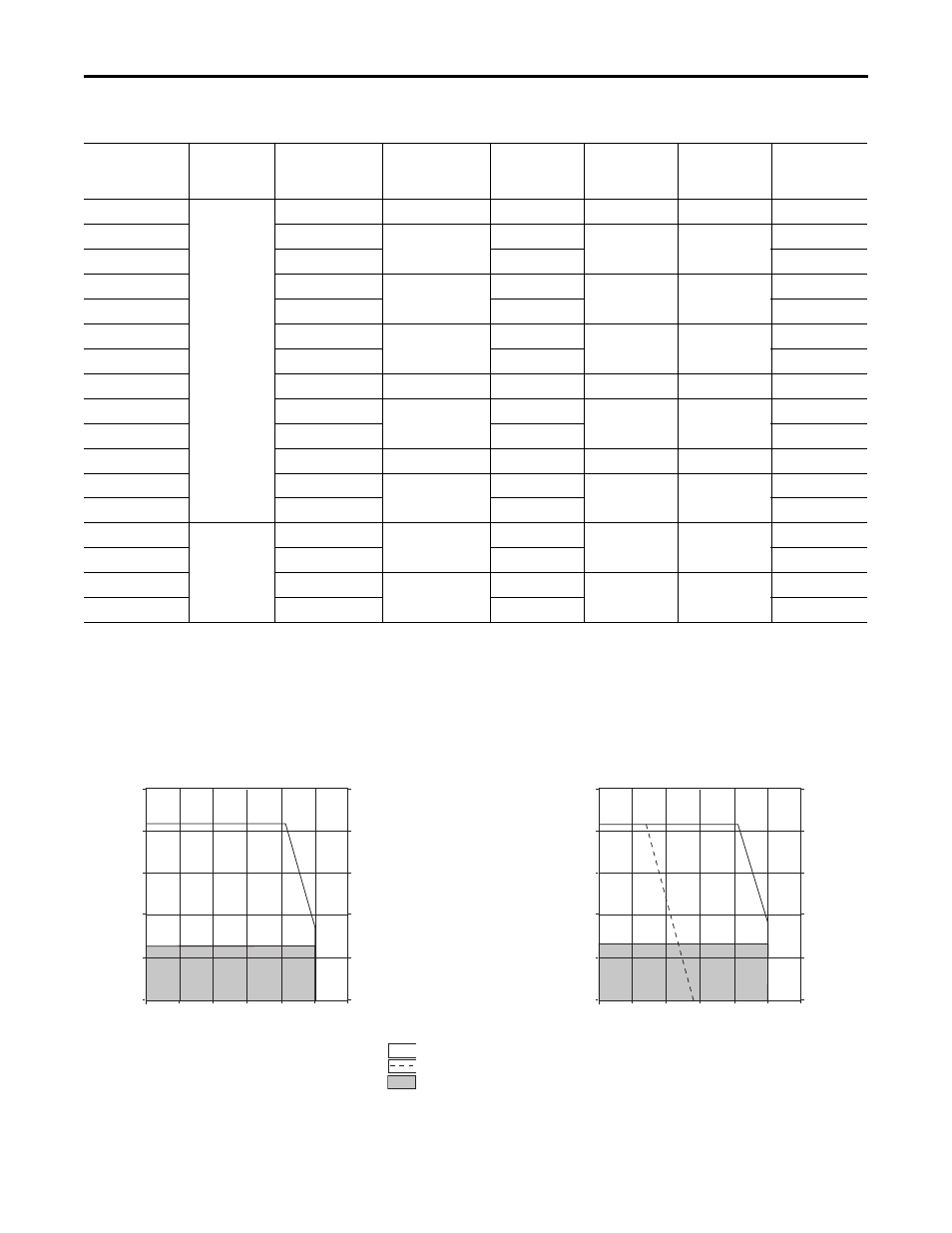

Ultra3000 (200V class) Drives/LDL-Series Linear Motor Curves
Linear Motor
Speed, max
m/s (ft/s)
System Continuous
Stall Current
Amps 0-pk System Continuous
Stall Force
N (lb) System Peak
Stall Current
Amps 0-pk System Peak
Stall Force
N (lb) Linear Motor
Rated Output
kW
Ultra3000
200V-class Drives
LDL-N050120-DHT
10.0 (32.8)
2.7 96 (22) 9.1 317 (71) 0.48 2098-DSD-010
LDL-N050240-DHT 5.5
191 (43)
18.1
635 (143) 0.95
2098-DSD-020
LDL-N050240-EHT 2.7 9.1 2098-DSD-010
LDL-N050360-DHT 8.2
287 (65)
27.2
952 (214) 1.43
2098-DSD-020
LDL-N050360-EHT 2.7 9.1 2098-DSD-010
LDL-N050480-DHT 10.9
383 (86)
36.3
1269 (285) 1.91
2098-DSD-075
LDL-N050480-EHT 5.5 18.1 2098-DSD-020
LDL-T050120-DHT 2.7 110 (25) 9.1 364 (82) 0.55 2098-DSD-010
LDL-T050240-DHT 5.5
220 (49)
18.1
728 (164) 1.10
2098-DSD-020
LDL-T050240-EHT 2.7 9.1 2098-DSD-010
LDL-T050360-DHT 8.2 329 (74) 27.2 1093 (246) 1.64 2098-DSD-020
LDL-T050480-DHT 10.9
439 (99)
36.3
1457 (327) 2.19
2098-DSD-075
LDL-T050480-EHT 5.5 18.1 2098-DSD-020
LDL-N075480-DHT
10.0 (32.8)
9.9
519 (117)
32.8
1723 (387) 2.59
2098-DSD-075
LDL-N075480-EHT 4.9 16.4 2098-DSD-020
LDL-T075480-DHT 9.9
596 (134)
32.8
1977 (444) 2.98
2098-DSD-075
LDL-T075480-EHT 4.9 16.4 2098-DSD-020
250
200
150
100
50
0
56.2
45.0
33.7
22.5
11.2
0
2098-DSD-010 and LDL-N030120-DHT
Force
(N)
Force
(lb)
Velocity (m/s)
2 8 6 0 12 10 4
500
400
300
200
100
0
112
89.9
67.4
45.0
22.4
0
2098-DSD-020 and LDL-N030240-DHT
2098-DSD-010 and LDL-N030240-EHT
Force
(N)
Force
(lb)
Velocity (m/s)
2 8 6 0 12 10 4
= Intermittent operating region (LDL-xxxxxxx-DHT)
= Intermittent operating region (LDL-xxxxxxx-EHT)
= Continuous operating region
