6 Rockwell Automation Publication GMC-RM008A-EN-P - September 2011
Ultra3000 Drive Systems
Optional Drive Accessories

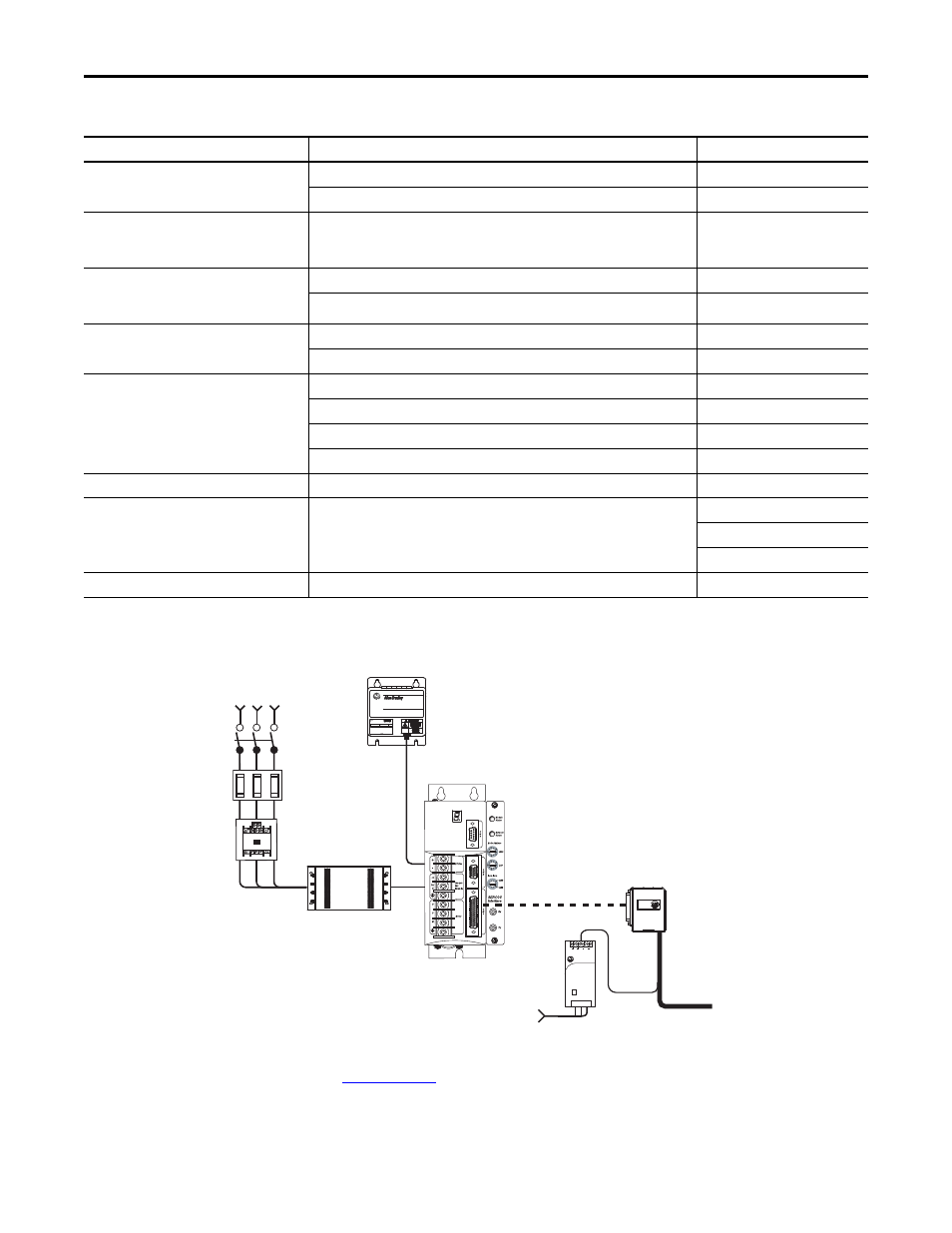

Ultra3000 Input Power Example
Motor-end cable connector kits, for use when building your own cables, are also available. Refer to the Kinetix Motion
Accessories Technical Data, publication
GMC-TD004 , for detailed descriptions and specifications of optional servo drive
accessories.
Drive Accessory Description Cat. No.
Drive to 1756-M02AE module interface cable
Single-axis (CN1) flying-lead drive to Logix module cable. 2090-U3CC-D44xx
Two-axis (CN1) pre-wired drive to Logix module cable. 2090-U3AE-D44xx
Drive-mounted breakout board for serial interface
(applies to flying-lead cables as an alternative to
serial interface cable)
9-pin (CN3) breakout board for serial interface. 2090-UXBB-DM09
Panel-mounted breakout boards
(applies to flying-lead cables as an alternative to
drive-mounted breakout boards) DIN rail mounted terminal block and cable for 15-pin (CN2) motor feedback connections. 2090-UXBK-D15xx
DIN rail mounted terminal block and cable for 44-pin (CN1) I/O connections. 2090-U3BK-D44xx
2090 AC line filters
AC line conditioning for EMC. Applies to 200V-class drives. 2090-UXLF-xxx
AC line conditioning for EMC. Applies to 400V-class drives. 2090-UXLF-HVxxx
2090 shunt modules
Applies to 2098-DSD-HV030, 2098-DSD-HV050, and 2098-DSD-HV100 drives.
(1)
(1) Refer to Rockwell Automation Encompass™ partners for 2098-DSD-HV150 and 2098-DSD-HV220 passive shunt solutions.
2090-SRxxx-xx
Applies to 2098-DSD-075 and 2098-DSD-150 drives. 2090-UCSR-P900
Applies to 2098-DSD-030 drives. 9101-1183
Applies to 2098-DSD-005, 2098-DSD-010, and 2098-DSD-020 drives. 2090-UCSR-A300
Resistive brake module (RBM) Physically and electrically separate the drive power output from its corresponding motor. 2090-XBxxx-xx
RBM interface cables Motor power, RBM to drive.
2090-UXNRB-10F1P3
2090-UXNRB-8F1P4
2090-UXNRB-6F1P5
External auxiliary encoder Allen-Bradley® sine/cosine and incremental external encoders. Bulletin 842A, 844D, 845H, and 845T
BULLETIN 1394 300W SHUNT MODULE ALLEN-BRADLEY
FOR USE WITH 1394-SJT22-X SYSTEM MODULE
CAT. PART SER. INPUT DC INPUT AC FOR FUSE REPLACEMENT USE: BUSSMAN CAT. NO.
R
Shunt Module
1606-XL
Power Supply
Input
Allen-Bradley
Bulletin 2090 Active or Passive Shunt Module
(optional component)
2098-DSD-xxxxx
Ultra3000 Drive
(2098-DSD-xxx-SE drive is shown)
Three-phase
Input Power
2090-UXLF-xxx
AC Line Filter
(optional component)
Line
Disconnect
Device
Magnetic
Contactor
Input
Fusing
1606-XLxxx
24V DC
Control Power
Control Power
Supply Input
Input Sensors and
Control String
2090-U3xBB-DMxx
Drive-mounted
Breakout Board for I/O
and Commands
