Rockwell Automation Publication GMC-RM008A-EN-P - September 2011 41
Ultra3000 Drive Systems
Bulletin MPS Motor Performance Specifications with Ultra3000 (400V class) Drives
Performance specification data and curves reflect nominal system performance of a typical system with motor at 40 °C (104 °F) and drive at 50 °C (122 °F) ambient and rated line voltage. For additional
information on ambient and line conditions, refer to Motion Analyzer software, version 4.7 or later.

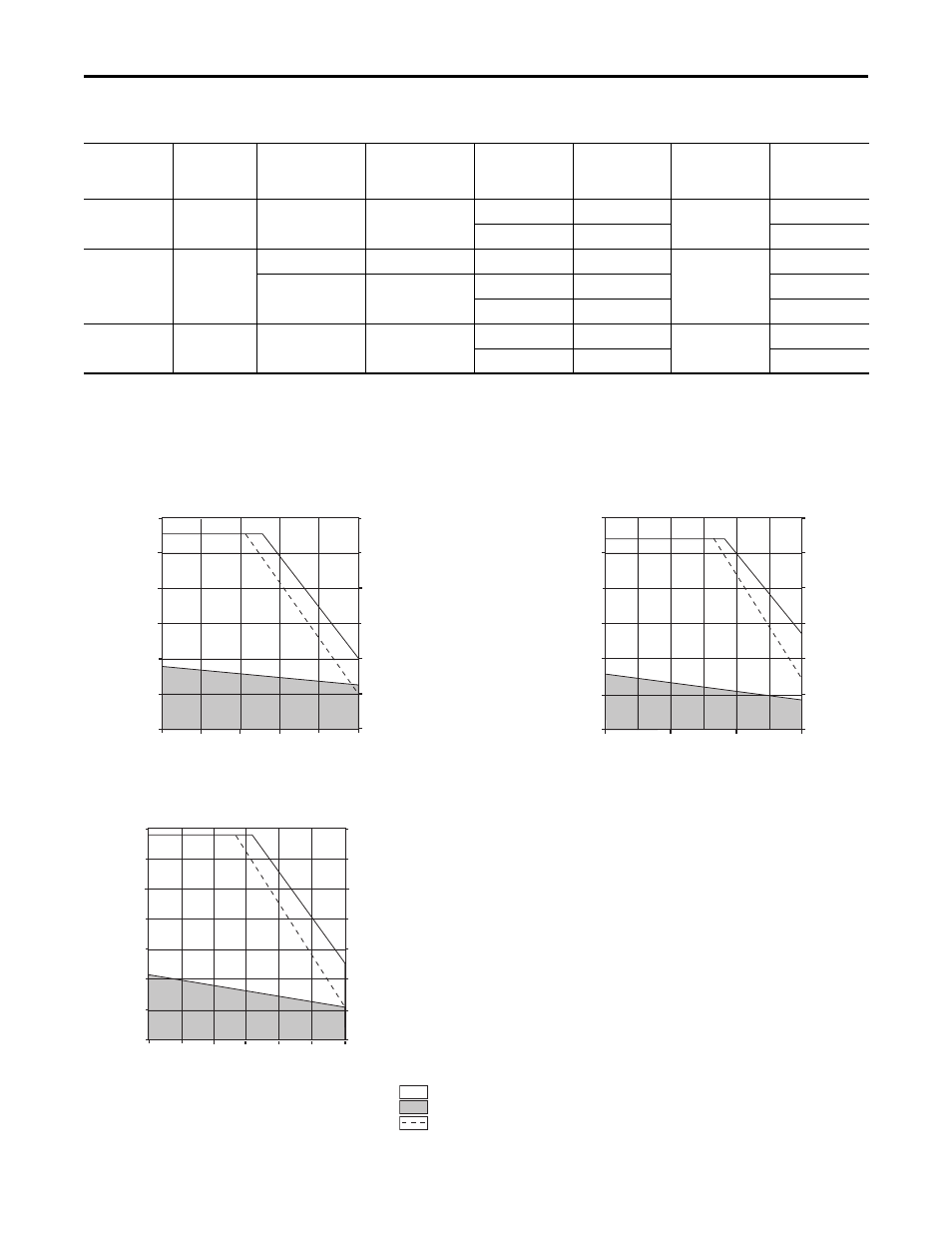

Ultra3000 (400V class) Drives/MP-Series Stainless Steel Motor Curves
Rotary Motor
Speed, max
rpm
System Continuous
Stall Current
A 0-pk System Continuous
Stall Torque
N•m (lb•in) System Peak Stall
Current
A 0-pk System Peak Stall
Torque
N•m (lb•in) Motor Rated
Output
kW
Ultra3000
400V-class Drives
MPS-B330P 5000 4.90 3.6 (32)
14.0 8.80 (78)
1.3
2098-DSD-HV030
19.0 11.10 (98) 2098-DSD-HV050
MPS-B4540F 3000
7.0 8.0 (71) 14.0 15.6 (138)
1.4
2098-DSD-HV030
7.1 8.1 (72)
22.0 23.5 (208) 2098-DSD-HV050
26.0 27.1 (240) 2098-DSD-HV100
MPS-B560F 3000 17.0 21.5 (190)
46.0 50.1 (443)
3.5
2098-DSD-HV100
68.0 67.7 (599) 2098-DSD-HV150
Torque
(N•m)
Torque
(lb•in)
2098-DSD-HV050 and MPS-B330P
Speed (rpm)
0 2000 4000 3000 1000 5000
12.0
10.0
8.0
6.0
4.0
2.0
0
106
88.5
70.8
53.1
35.4
17.7
0
Torque
(N•m)
Torque
(lb•in)
2098-DSD-HV100 and MPS-B4540F
30
25
20
15
10
5
0
265
221
177
133
88.5
44.2
0
Speed (rpm)
0 3000 2000 1000 500 1500 2500
Torque
(N•m)
Torque
(lb•in)
2098-DSD-HV150 and MPS-B560F
70
60
50
40
30
20
10
0
619
531
442
354
265
177
88.5
0
Speed (rpm)
500 1000 1500 2000 0 2500 3000
= Intermittent operating region
= Continuous operating region
= Drive operation with 400V AC (rms) input voltage
