Rockwell Automation GV3000/SE V.6 Regulator Board 0-56921-6xx, 413338-6BU, 0-56940-6xx, 814.61.00 - Manual (Page 78)

Clearing the CHS Fault Code and Identifying the Power Module 11-5

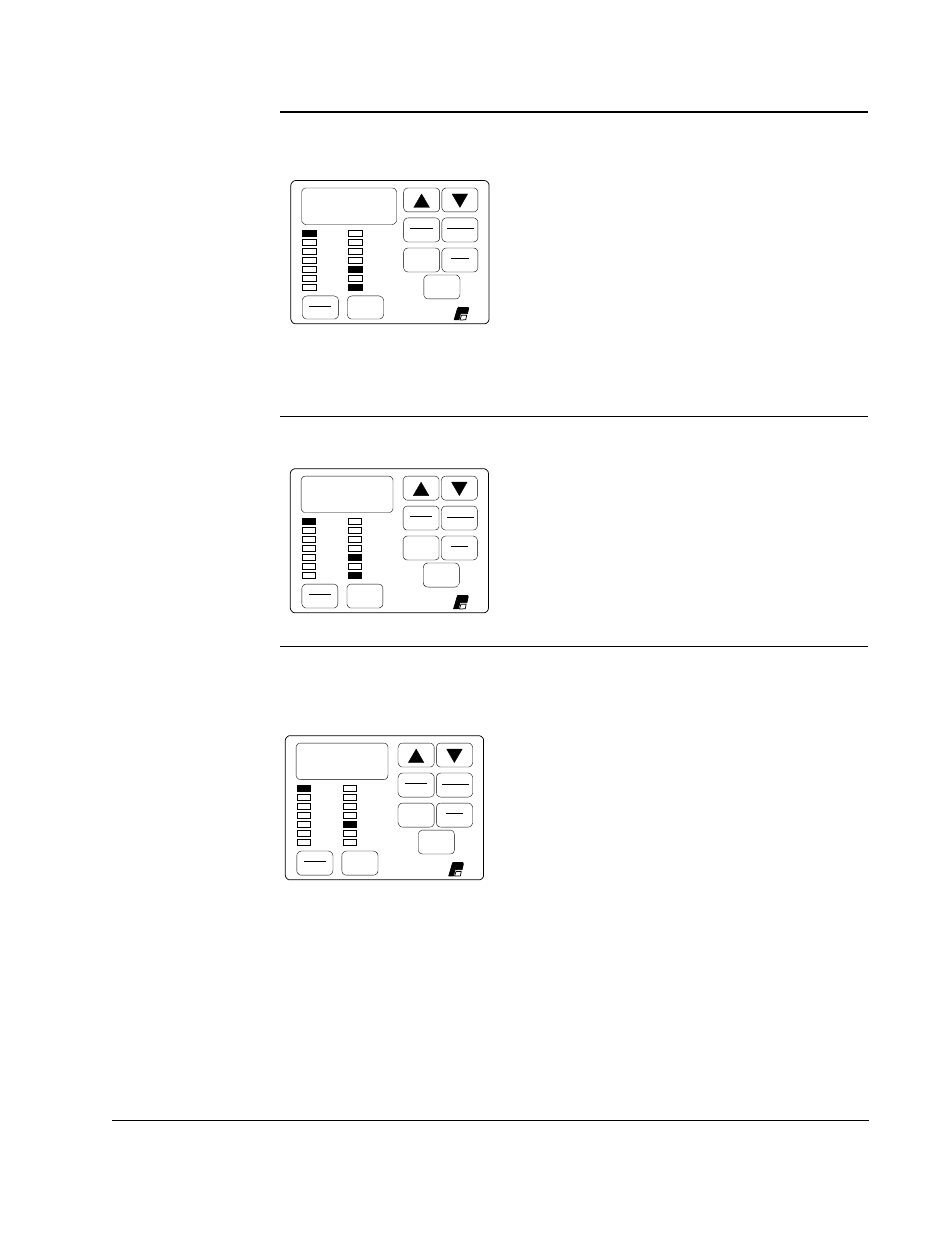

Step 13. Press the ▲ key until the appropriate Power Module voltage and
horsepower is displayed.
Sample display. Your display
may be different.
The Power Module values are displayed in
the format V.nnn, where V represents the
drive’s voltage rating, and nnn represents
horsepower.
This information is contained in the drive
model number. Refer to appendix A in this
manual for assistance in identifying the
drive.
The sample display shows the appropriate
selection for a 460V, 20 HP Power Module.
Step 14. Press the ENTER key to save the selected value.
PUCH is displayed a few seconds to
indicate that the Power Module identification
values have been changed.
Step 15. Zero is displayed to indicate that the procedure is complete. Verify that the
Power Module identification value is correct using the procedure in
section 11.1.
After the new values are accepted, the drive
enters monitor mode, and the SPEED LED
turns on. The displayed value is zero.
