GV3000/SE 230 VAC Drive, Software Reference Version 6.04

Step 7.9

•

If the rotation direction is NOT correct, press the STOP/RESET key and
continue with Step 7.10.

•

If the rotation direction is correct, continue with Step 7.14.

AUTO

MAN

Forward
Reverse

PROGRAM

RUN
JOG

STOP

RESET

START

ENTER

SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password

RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM

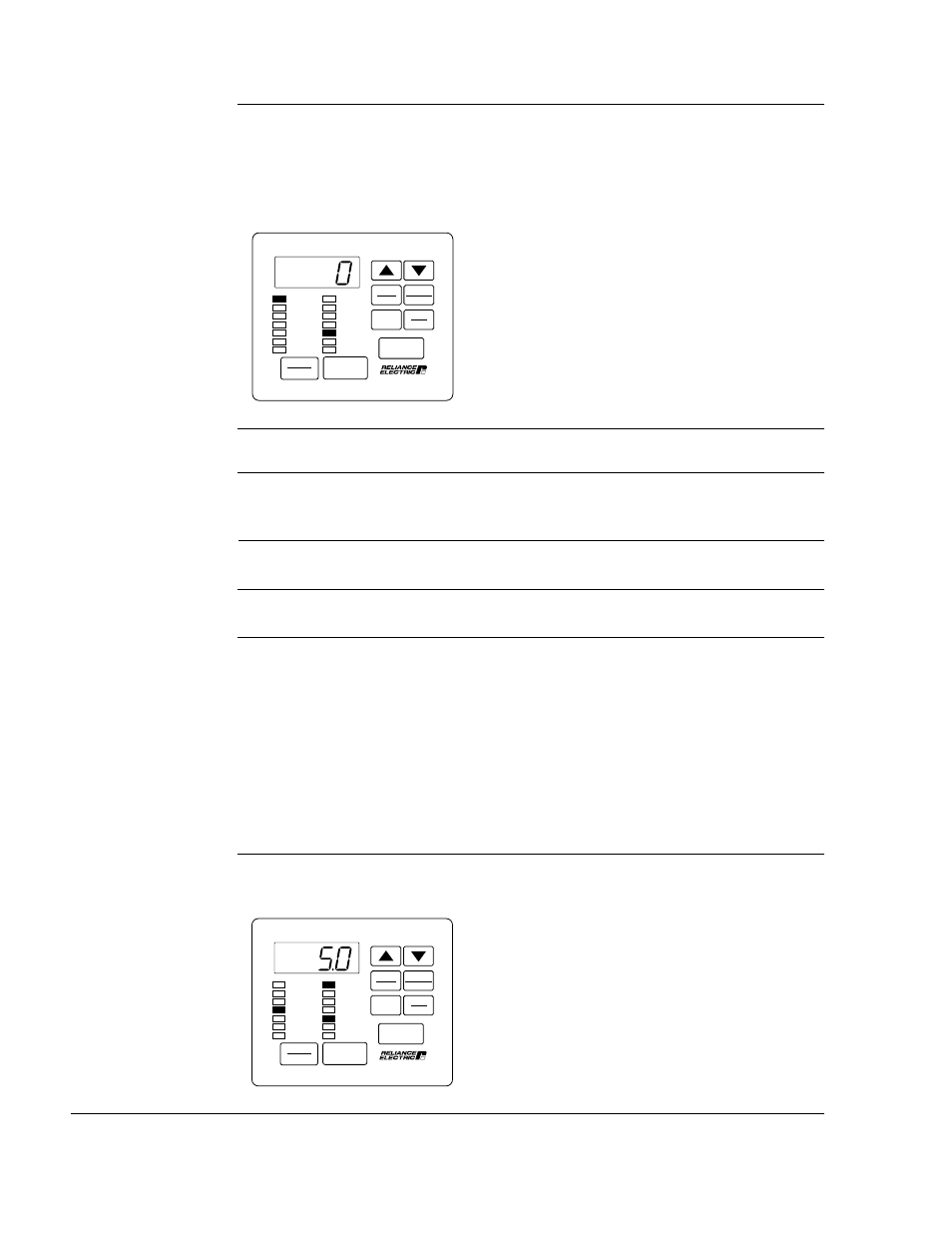

When the STOP/RESET key is pressed, the
RUNNING LED turns out.

Step 7.10 Turn off and lock out or tag power to the drive.

Step 7.11 Verify that the DC bus capacitors are discharged. Refer to the

hardware reference manual for this procedure.

Step 7.12 Switch any two of the motor leads (U, V, or W).

Step 7.13 Turn power on, and press the START key. Repeat Step 7.8.

Step 7.14 To make sure that the drive is not inadvertently started, turn off and

lock out or tag power to the drive. Verify that the motor direction is
appropriate for the required machine direction, and then connect the
motor to the load.

Step 8. Run the Drive

This step describes how to adjust the speed reference from the keypad and run the
motor up to maximum speed in Hz. At maximum Hz, you must check values in
monitor mode. This step assumes you have connected motor to the load.

Step 8.1 Press the ENTER key until the Hz LED turns on. (If the drive is not

running, press the START key.)

This example shows the minimum hertz
setting of parameter P.003.
