Data link properties – Rockwell Automation RSBizWare BatchCampaign Users Guide User Manual
Page 42

RSB
IZ
W
ARE
B
ATCH
C
AMPAIGN
U
SER
’
S
G
UIDE
38
• •
•
•
•
Data Link Properties
1. To configure the BatchCampaign database, select the Configure button.

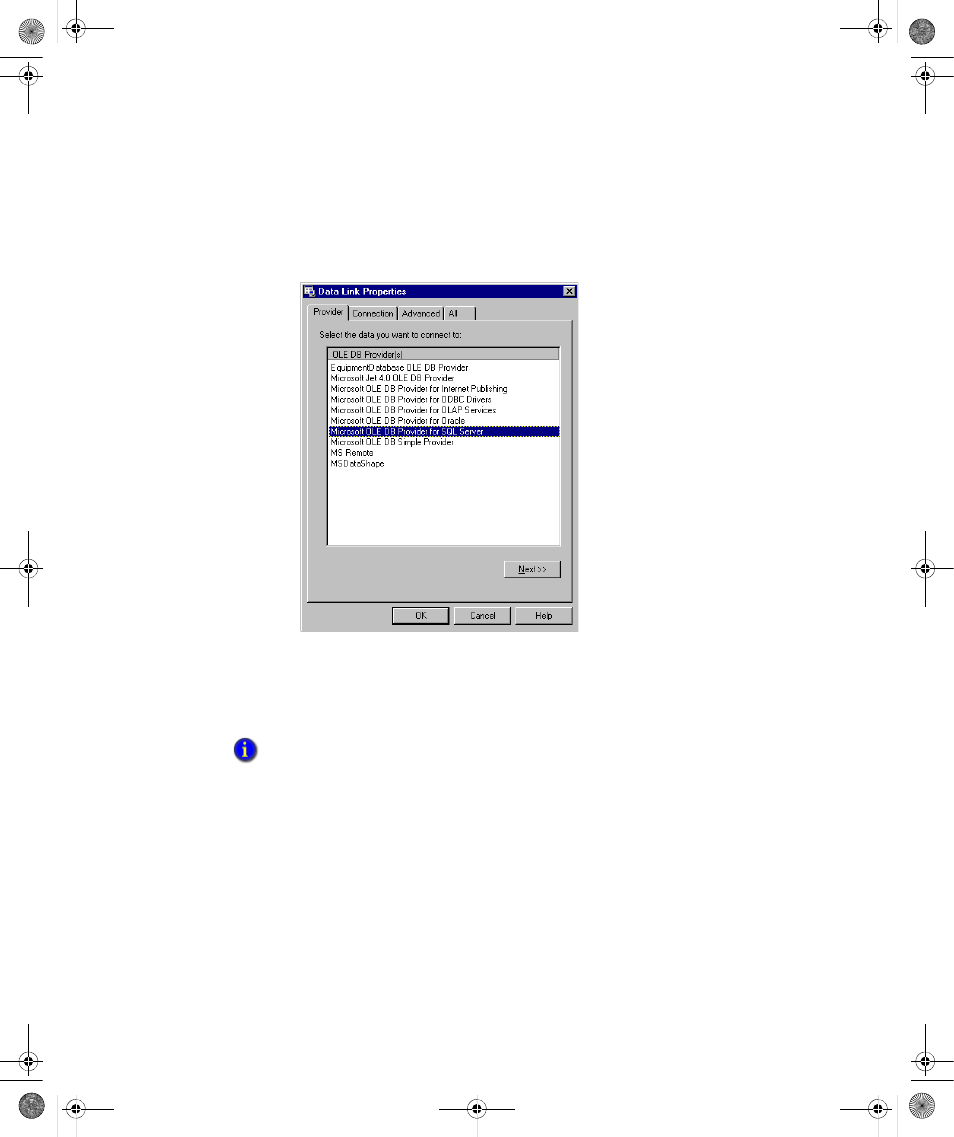

2. The Data Link Properties dialog box displays. It contains four tabs:
P
ROVIDER
T
AB
The Provider tab is used to select the type of database you want to connect to. The
provider that is selected will affect the options listed for the Connection.
1. From the Select the data you want to connect to area, select the desired provider.
The following examples and images use the Microsoft OLE DB Provider for SQL
Server.
2. Click the Next button to select the Connection tab.
The Microsoft OLE DB provider for SQL Server is used by FactoryTalk Batch 5.0 and higher
because it uses the SQL Server database for Recipes.
BatchCampaign.book Page 38 Wednesday, September 19, 2007 4:58 PM
