34 Rockwell Automation Publication 6181X-UM001B-EN-P - May 2011
Chapter 4 Component Replacement
CompactFlash Card The computers have two CompactFlash (CF) Type II card slots for installing CF
cards:
• Internal CF slot (right side) – Cards installed in this slot are considered
bootable and are designed to function as a main hard disk drive. Do not
remove or install a card in this slot while the computer is powered on.
• External CF slot (bottom side) – This slot is functionally hot-pluggable in
an environment known to be nonhazardous. This slot is meant to be a data
CF slot but is bootable.
Install a CF Card in the External CF Card Slo t

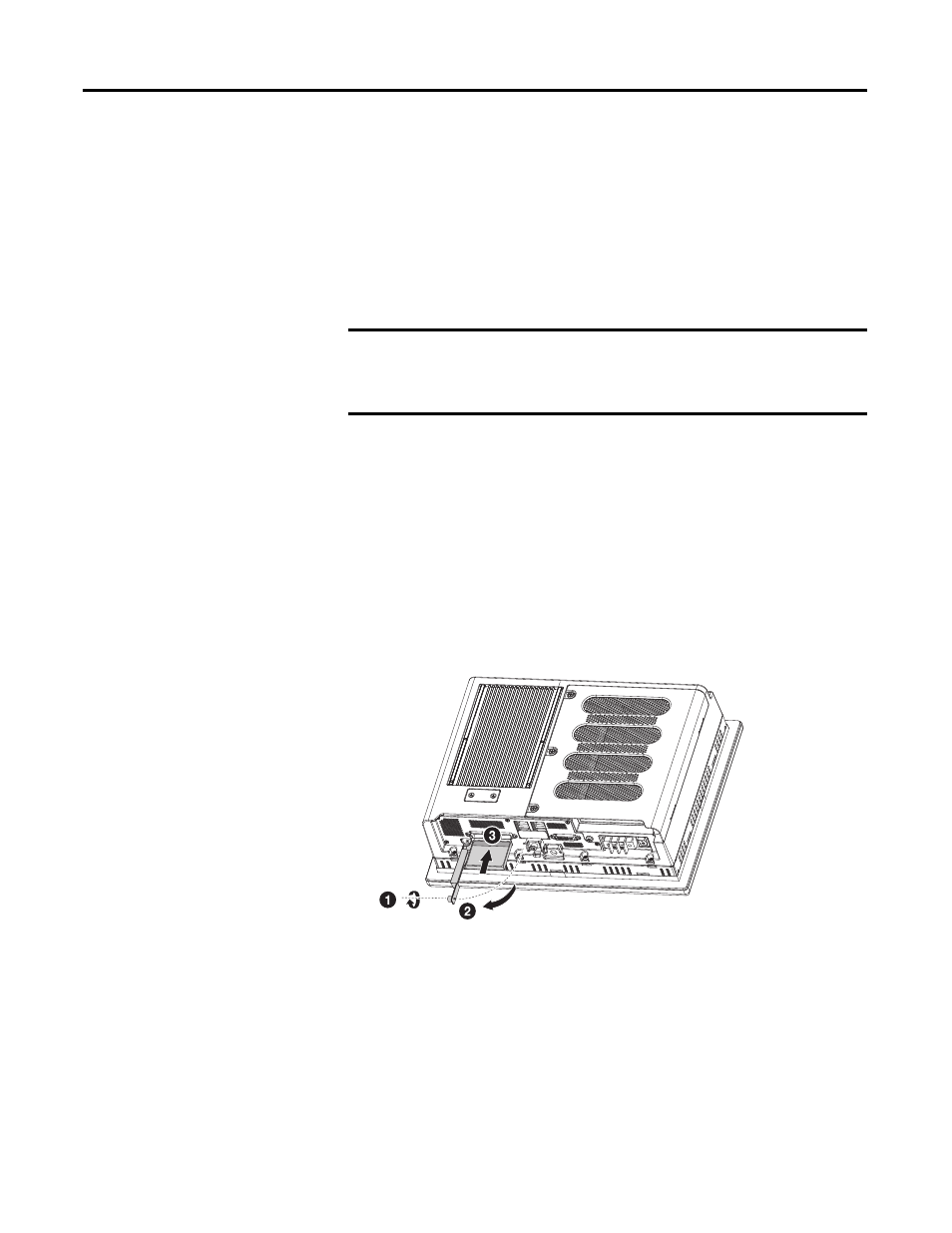

Follow these steps to install a CF card in the external CF card slot.
1. Loosen the screw that secures the CF card slot cover (1).
2. Open the CF card slot cover (2).
3. If necessary, remove existing card by pushing the button on the hinge side.
4. Insert the CF card into the slot until it is firmly seated (3).
5. Close the CF card slot cover, then tighten its screw (1).
IMPORTANT Use only catalog numbers 6189V-CFSSD8GB and 6189V-CFSSD16GB
CompactFlash (CF) cards in the 6181X industrial computers for hazardous
locations. Other replacement cards are not acceptable for use in
hazardous locations.
