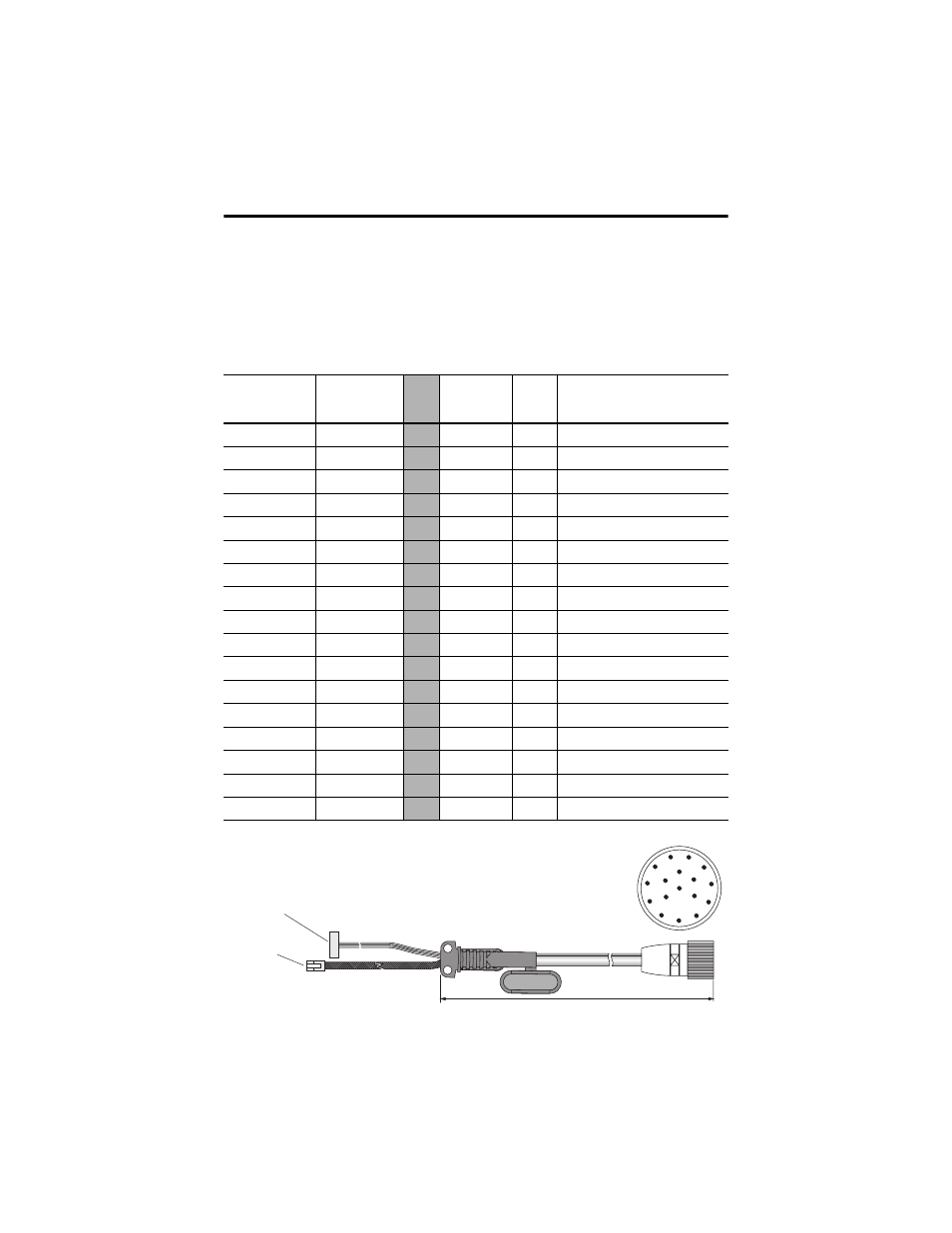

MobileView Connection Cable
The MobileView Connection Cable (2727-MRTxx) connects the MobileView
terminal to the Junction Box Cable. The Connection Cable is 5, 10, 15, or 20 meters
(16.4, 32.8, 49.2, or 65.6 feet). This cable withstands water, cleaning agents, motor
oil, drilling oils, grease, lubricants and condensates containing hydrochloric acid.
* For connection to MobileView Guard G750 terminals only.
K1
17-pin Circular
Connector Pin #
Connection
Cable
Wire Color
K3, 11-pin
Female
Connector
K2,
8-pin
RJ-45
Signal
Description
1 pink -->> 6 - 24V DC
2 black -->> 7 - GND_IN
3 green-brown -->> 8 - E-stop, circuit 1, positive *
4 white-green -->> 9 - E-stop, circuit 1, negative *
5 grey-pink -->> 10 - E-stop, circuit 2, positive *
6 red-blue -->> 11 - E-stop, circuit 2, negative *
7 brown -->> 1 - Enabling switch, circuit 1, pos. *
8 yellow -->> 2 - Enabling switch, circuit 1, neg. *
12 green -->> 3 - Enabling switch, circuit 2, pos. *
17 grey -->> 4 - Enabling switch, circuit 2, neg. *
9 bridge to pin 10 -->> - - Not Used
10 bridge to pin 9 -->> - - Not Used
11 violet -->> 5 - Not Used
13 blue -->> - 1 TD+ (transmit)
14 white -->> - 2 TD- (transmit)
15 orange -->> - 3 RD+ (receive)
16 red -->> - 6 RD- (receive)
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
K3, 11-pin
female connector to S19
at MobileView terminal
K2, 8-pin RJ-45
jack to S4 at
MobileView
terminal
5, 10, 15, or 20 meters (6.4, 32.8, 49.2, or 65.6 feet)
K1, 17-pin circular connector
view from connector side
