Terminale MobileView Machine MT750 109
Pubblicazione 2727-QS003E-MU-P
Terminale MobileView
Questa sezione fornisce informazioni su:
•
Rimozione del coperchio posteriore del terminale MobileView
•
Connessione Ethernet
•
Utilizzo dello slot per scheda PC

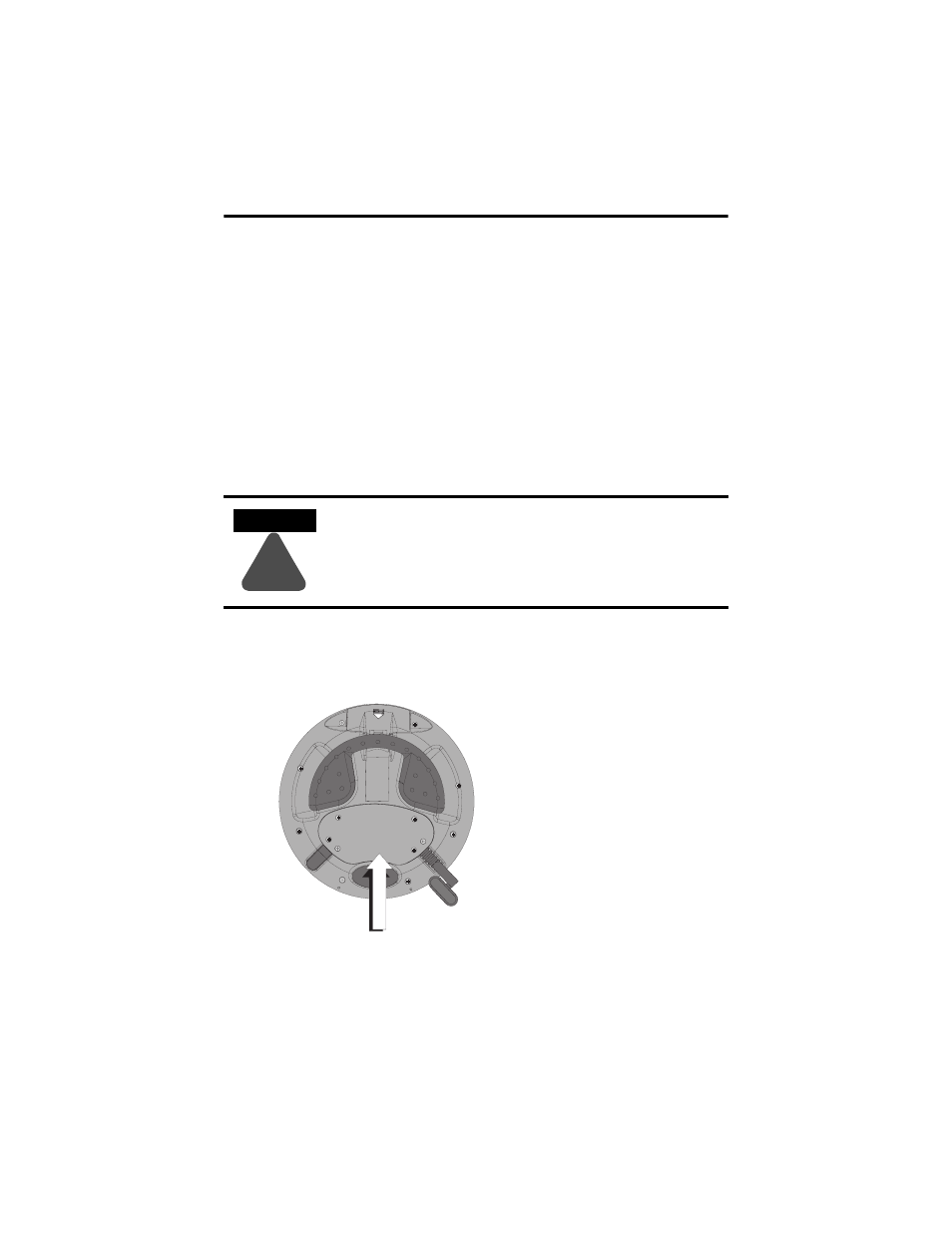

Rimozione del coperchio posteriore
Questa sezione spiega come rimuovere il coperchio posteriore del terminale
MobileView. Dopo aver tolto il coperchio, si può accedere all'area che contiene
tutti i connettori.
1. Posizionare il terminale su una superficie piana e stabile.
2. Rimuovere le 6 viti che fissano il coperchio posteriore al terminale.
3. Estrarre con cautela il coperchio posteriore e metterlo da parte.
ATTENZIONE
!
Scollegare l'alimentazione prima di rimuovere il coperchio
posteriore del terminale MobileView.
Una volta rimosso il coperchio posteriore, il terminale
MobileView è sensibile alle scariche elettrostatiche.
Coperchio posteriore
