Setting Up DH+ Direct Communications Systems 4-5
Publication 9303-5.13 – March 1998
Setting the
Communication
Information for
DH+ Direct You need to provide DriveTools32 with some information that it needs to
establish a connection between your PC and your drive. To do this, you need to:
1. Start DriveManager32.

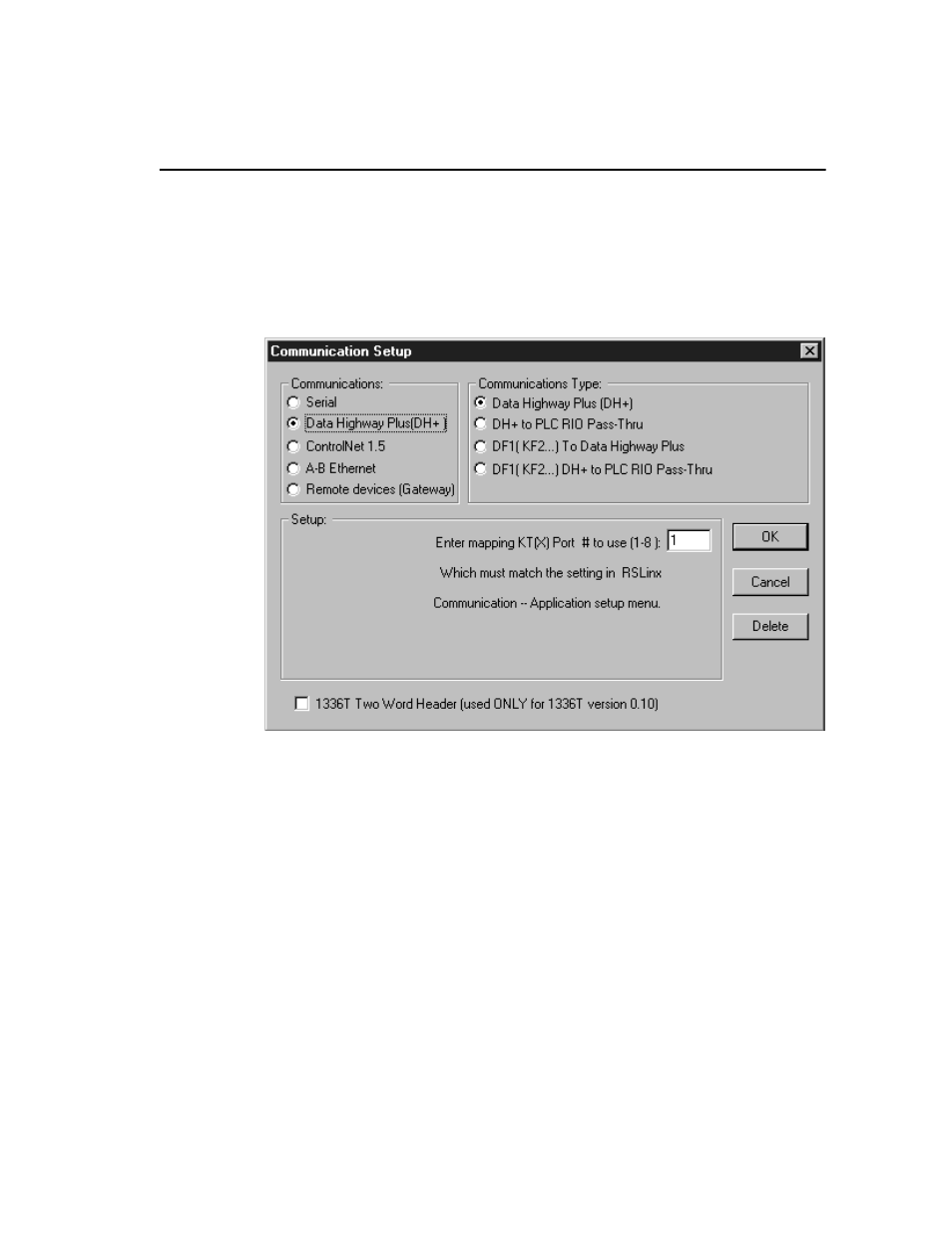

2. From the Options menu, select Communication Setup. The
Communication Setup dialog box appears.
3. In the Communications section, select Data Highway Plus (DH+).
4. In the Communications Type section, select Data Highway Plus (DH+).
5. In the Enter mapping KT(x) Port # to use field, enter the KT Port number.
Important: The KT(x) port number must match the RSLinx KT:0 Port number
for DH+ device in the Configure Client Applications dialog box.
6. If applicable, select 1336T Two Word Head (used ONLY for 1336T
version 0.10).
7. Click OK.
