Setting up an RS-232 Point-to-Point Serial Communications System for a 1395 Drive
Publication 9303-5.13 – March 1998
Important: If your PC’s transmission is too fast for the 1300-ITSSC adapter,
you will have to increase the value for DTR Pulse Delay. Start at 1000 and
increase the value by increments of 500 until communications work.
8.
In the DTR Pulse Width (0 to calculate automatically) field, enter 0.
Important: If your PC’s transmission is too fast for the 1300-ITSSC adapter,
you will have to increase the value for DTR Pulse Width. Start at 50 and
increase the value by increments of 10 until communications work.
9.
Click OK.
Connecting to the
Drive
To connect to the drive, you need to:
1.

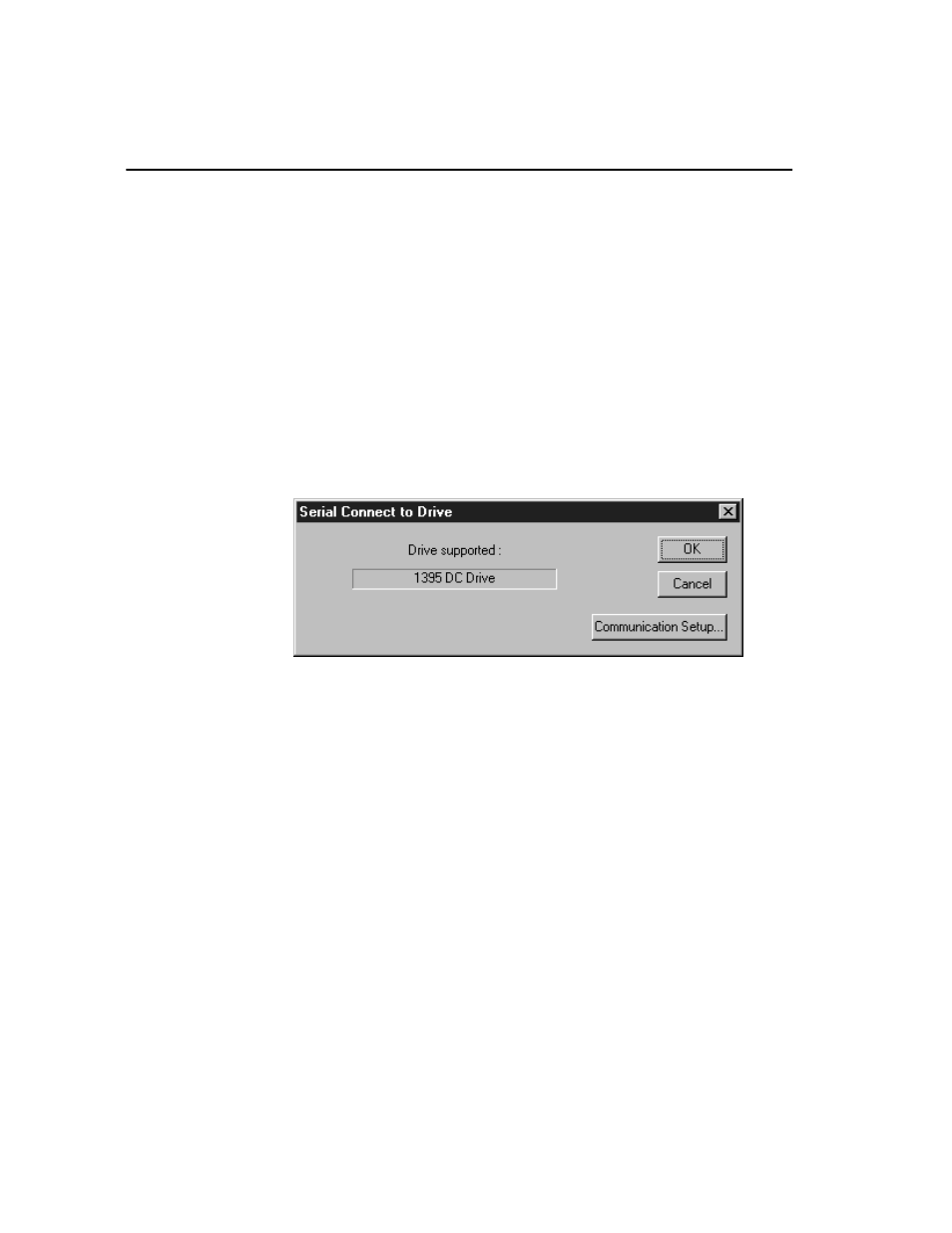

From the Drive menu, select Connect to Drive. The Serial Connect to
Drive dialog box appears.
2.
Click OK.
After a short pause, either the DriveManager32 screen with the drive
parameters appears, or you are prompted to create a database.
