56 Kinetix 2000 션트 모듈
Publication 2093-IN002A-MU-P - 2006.12
설치 순서 확인

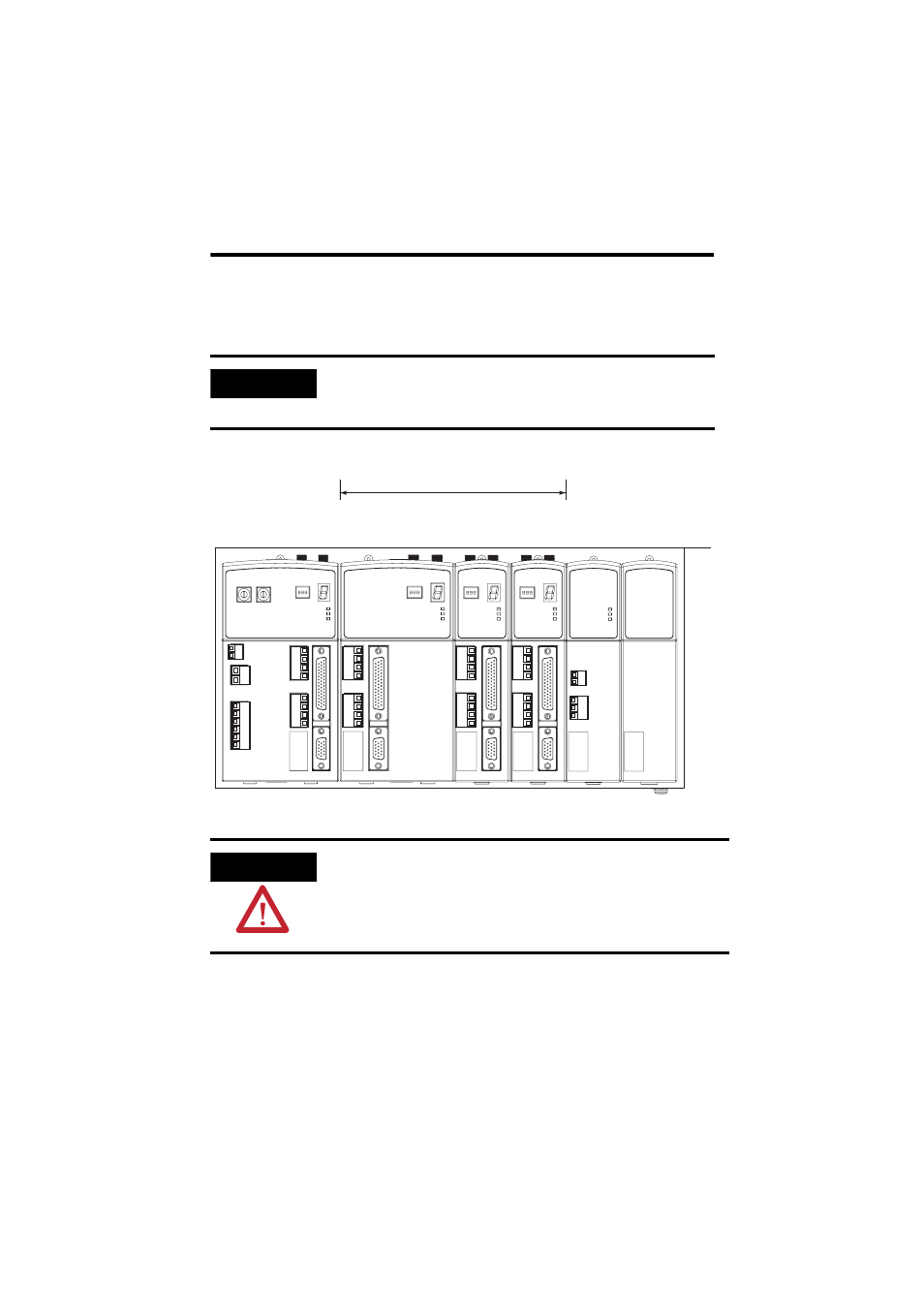

션트 모듈을 아래에 기술된 순서대로 , 그림에 나타난 대로 설치하십시오 .
모듈 설치 순서
중요
션트 모듈을 설치된 모든 축 모듈의 다음 우측에 설치하십시오
(IAM 또는 AM). 하지만 8 슬롯짜리 파워레일 (2093-PRS8S) 에서
는 션트 모듈이 가장 우측 슬롯에 설치되어야 합니다 .
경고
전기 쇼크로 인한 인명 피해를 방지하기 위해 , 슬롯 필러 모듈
( 카탈로그 번호 2093-PRF) 을 파워레일의 모든 빈 슬롯에
장착하십시오 .
파워 레일에 비어있는 슬롯이 있으면 Kinetix 2000 시스템이
비활성화되지만 , 제어용 AC 전원은 파워레일에 계속 공급됩니다 .
전력 이용 또는 암페어 등급
최하위
통합 축
모듈
2093-AC05-MP5
축
모듈
2093-AM01
축
모듈
2093-AMP2
축
모듈
2093-AMP2
션트
모듈
2093-ASP06
슬롯 필러
모듈
2093-PRF
제 7 의 축 파워 레일 모듈 2093-PRS7 이 제시되어 있습니다 .
최상위
