16 Industrial Computers for Hazardous Locations

Rockwell Automation Publication 6181X-IN001C-EN-P - April 2011

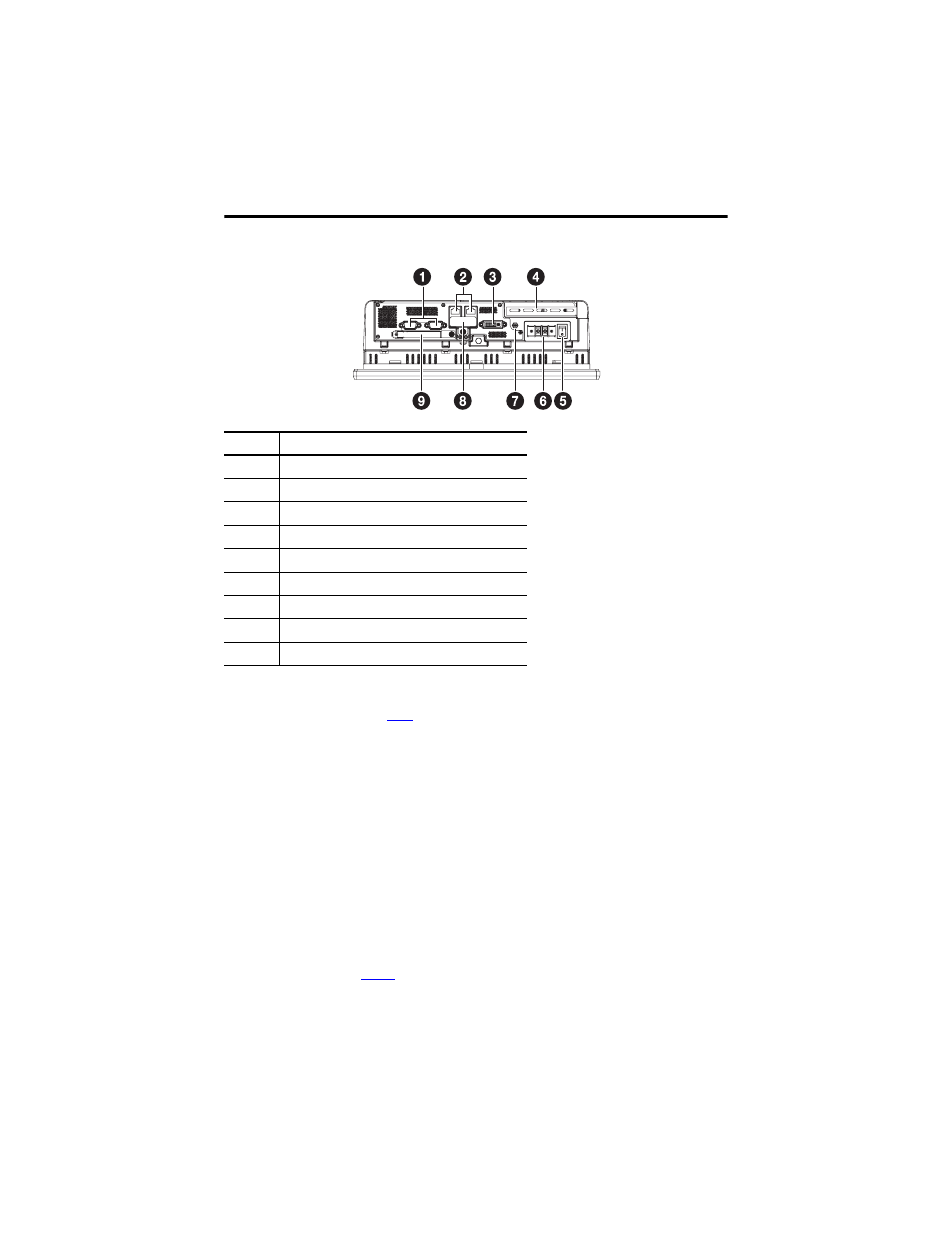

Bottom View, Catalog Number 6181X-12TPXPDC

Connect Peripherals

Connect the required peripherals, such as keyboard and mouse, to the corresponding I/O ports
on the bottom side of the computer. Refer to the illustration on the previous section for
connector locations.

Observe these guidelines when connecting peripherals to the computer:

When connecting a device to the serial COM or DVI port, secure the connected device
with screws.

The USB ports are covered by a hinged door.

For more information about proper use of these ports refer to Hazardous Locations
statements on

page 4

.

Item

Component

1

Serial COM ports, 2

2

Ethernet ports (RJ

-

45), 2

3

DVI-I port

4

PCI riser slot cover

5

Power switch

6

DC input terminal block

7

Functional ground screw

8

Hinged door covering the USB ports, 4

(1)

9

External CompactFlash Type II card slot

(1)

(1)

This bottom side external CF slot and USB ports are functionally
hot-pluggable in an environment known to be non-hazardous. For more
information about proper use of these ports refer to

Hazardous Locations statements on

page 4

.
