Configure the Adapter for Direct Connection through the RSLogix 5000 or Logix Designer Application 45

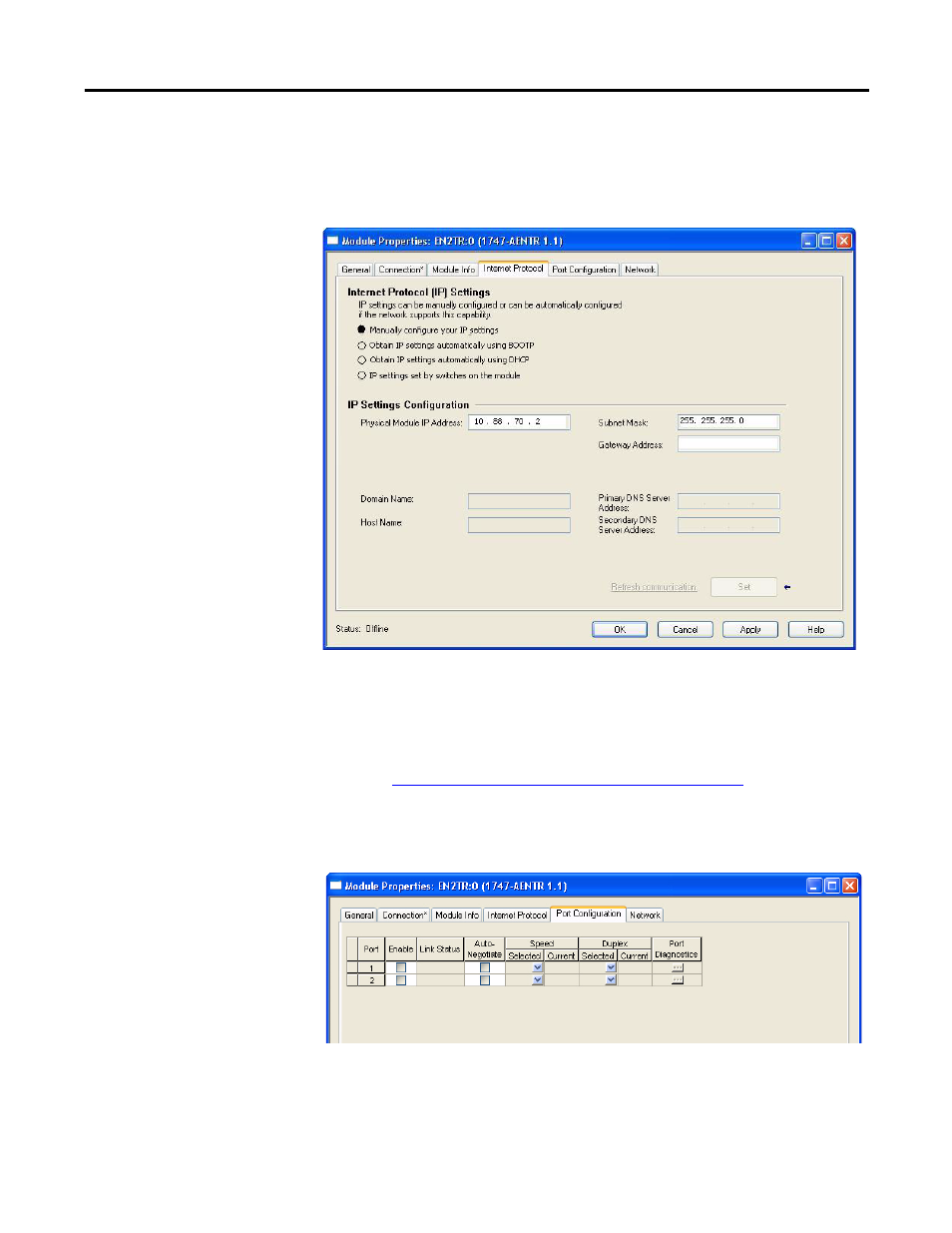

4. To configure your IP settings, click the Internet Protocol tab. This tab is
only available for editing when the device is online.
To manually configure your IP settings, specify the IP address in the
Physical Module IP Address field.
5. On the other fields (Domain Name, Host Name, Primary DNS Server
Address, Secondary DNS Server Address), specify the corresponding
parameter. Click Set and then click OK.
To learn more about how to configure the adapter’s IP settings, see
Configure the Adapter for Your EtherNet/IP Network
on page 27.
6. To configure the Ethernet ports, click the Port Configuration tab.
This tab is only available for editing when the device is online.
