Install Your Adapter Chapter 2

Refer to the Industrial Controller Wiring and Grounding Guidelines publication

1770-4.1

for proper grounding and wiring methods to use when installing your

module.

1. Remove power from the I/O chassis before inserting (or removing) the

module.

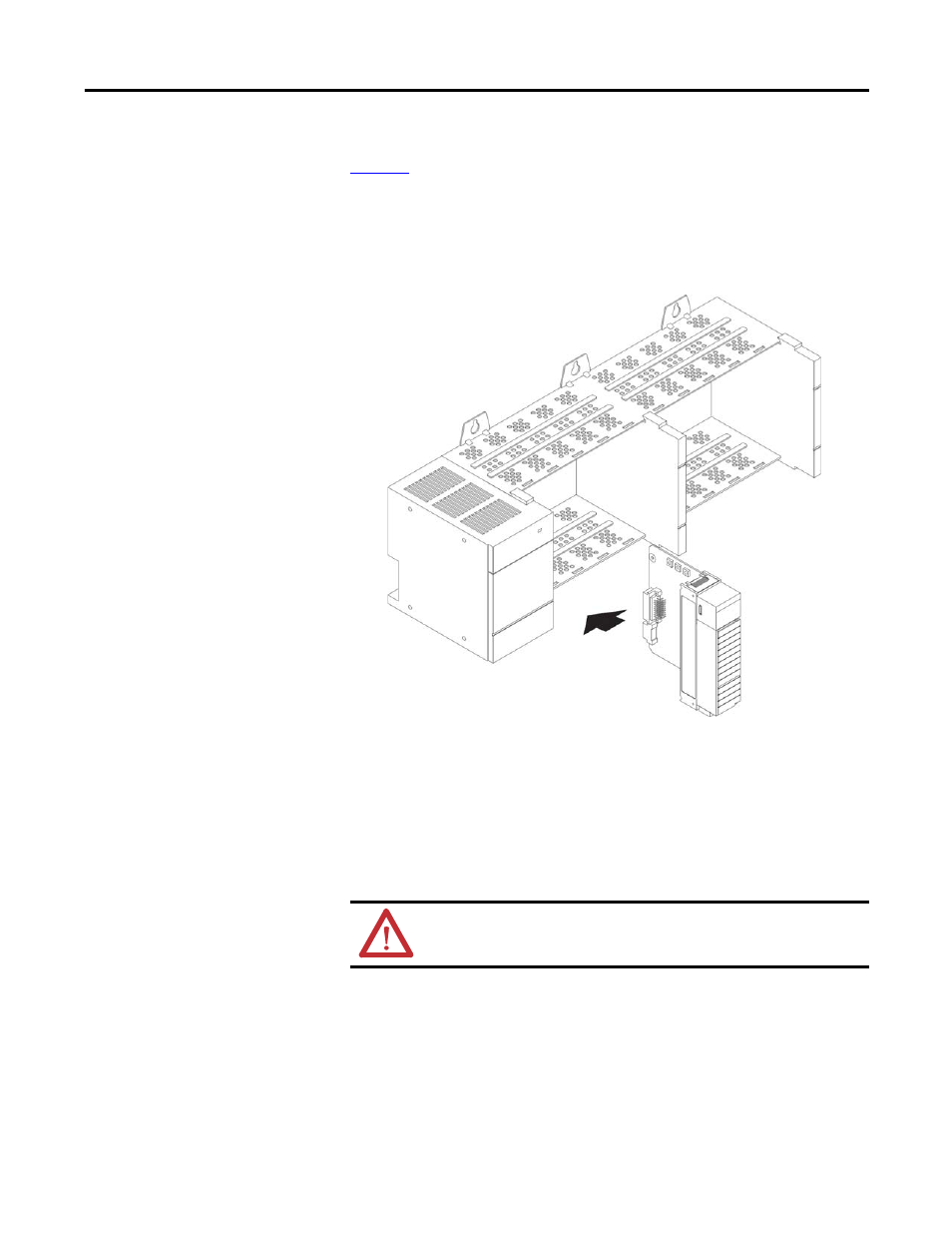

2. Align the circuit board with the chassis card guide in the left slot.

3. Install the module in slot 0 of the chassis by aligning the circuit board with

the chassis card guide.
The 1747-AENTR module must be installed only in slot 0 (leftmost
slot)of the chassis.

4. Press firmly and evenly to seat the module in its backplane connectors. To

remove the module, press the releases at the top and bottom of the module
and pull it out.

Connect Your Adapter to the
Ethernet/IP Network
through RJ-45 Connection

Connect your 1747-AENTR adapter module to an Ethernet/IP network as
shown below:

ATTENTION: Do not force the module into the backplane connector. If
you cannot seat the module with firm pressure, check the alignment.
Forcing the module can damage the backplane connector or the module.
