44
Rockwell Automation Publication 1747-UM076C-EN-E - January 2013

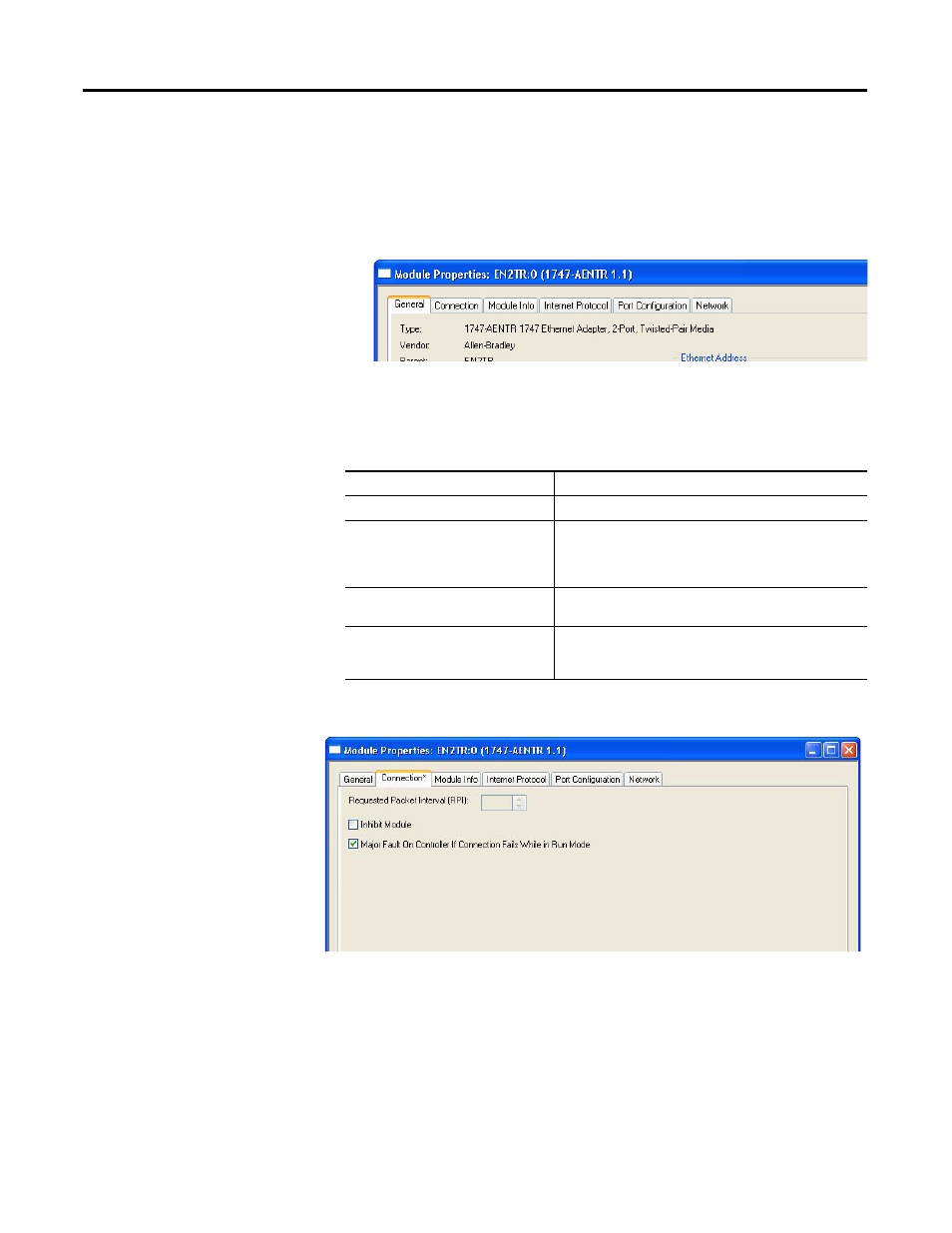

44 Configure the Adapter for Direct Connection through the RSLogix 5000 or Logix Designer Application
1. In the Project dialog, right-click the 1747-AENTR adapter under I/O
Configuration.
2. Select Properties. The following tabs are available for configuration.
Tabs can be selected in any order. The following examples are for
instructional purposes.
3. Click the Connection tab.
Choose from the options in the Connection tab. Note that RPI is not
applicable and is left blank.
Connection Tab Options
Field Name
Description
Requested Packet Interval (RPI)
RPI is not applicable and is grayed out.
Inhibit module
Check the box to prevent communication between the
owner-controller and the module. This option allows for
maintenance of the module without faults being reported to
the controller.
Major fault On Controller If Connection
Fails While in Run Mode
Check the box to create a major fault if there is a
connection failure with the module while in Run mode.
Module Fault
The fault box is empty if you are offline. The type of
connection fault appears in the text box if a fault occurs
when the module is online.
TIP
Rockwell Automation recommends that you check or enable the option
“Major Fault On Controller If Connection Fails While in Run Mode” on
both the 1747-AENTR device and supported 1746 I/O modules.
