System Start-Up
Chapter 4
4Ć8

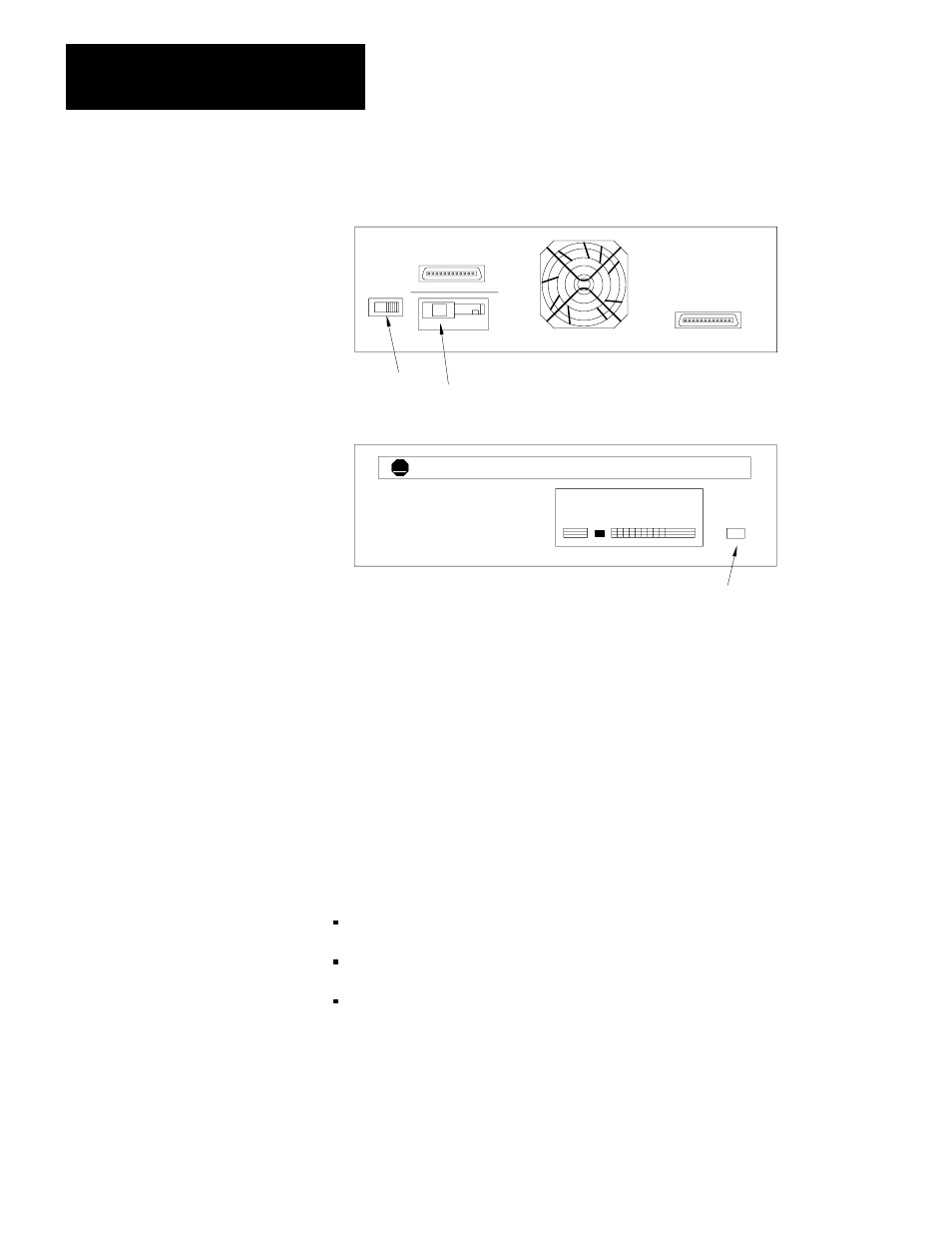

Figure 1.19
System StartĆup procedure for the 1770ĆM12 System
Select
position 1
Insert power cord
Indicator
lights green
MASS STORAGE SYSTEM
POWER
POWER
M12
11975
1.
Insert the connector end of the power cord into J19.
2.
Insert the plug into the power outlet.
3.
Select position 1 of the POWER switch. The POWER indicator lights
green; if it does not, refer to chapter 5 for troubleshooting aids.
Refer to the PC/M User’s Manual, publication 1770-6.5.1, (formerly 1770-821)
for information on operating the PC/M with the 1770-M12 system.
In this chapter you read how to:
begin operations for your 1770-M10
begin operations for your 1770-M11 system
begin operations for your 1770-M12 system
The next chapter describes how to troubleshoot your mass storage system.
Chapter Summary
