Page 28

Installing Your Mass Storage System
Chapter 3
3Ć13
Figure 1.15 shows how to connect the Programmable Controller/Management
System (PC/M) to a 1770-M12 system. Use the cable (P/N 966289-01) to
connect each product and perform these steps:

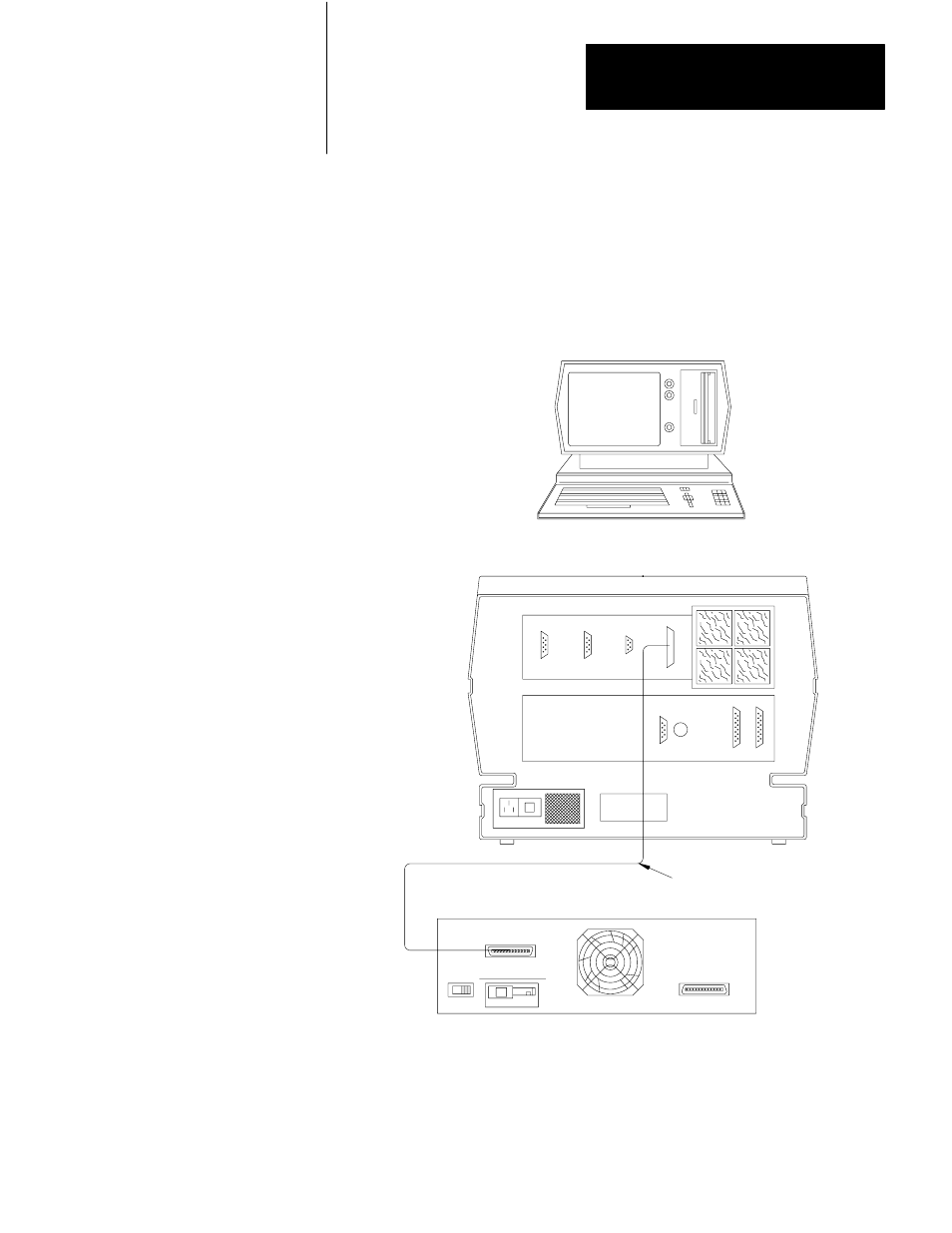

Figure 1.15
How to Connect the 1770ĆM12 System to the PC/M System
PC/M
Front View
PC/M
Back View
1770-M12
Mass Storage System
P/N 966289-01
Connector Cable
PORT 0
PORT 1
PORT 2
PORT 3
11971
1.
Match the power outlet voltage to the mass storage system’s voltage. For
example, if the power outlet is 220V AC then change the electrical card to
220V AC. (Refer to chapter 4.) We ship each mass storage system for a
120V AC operation.
Connecting to the
Programmable
Controller/Management
System
