1-6 Overview
Module Operation

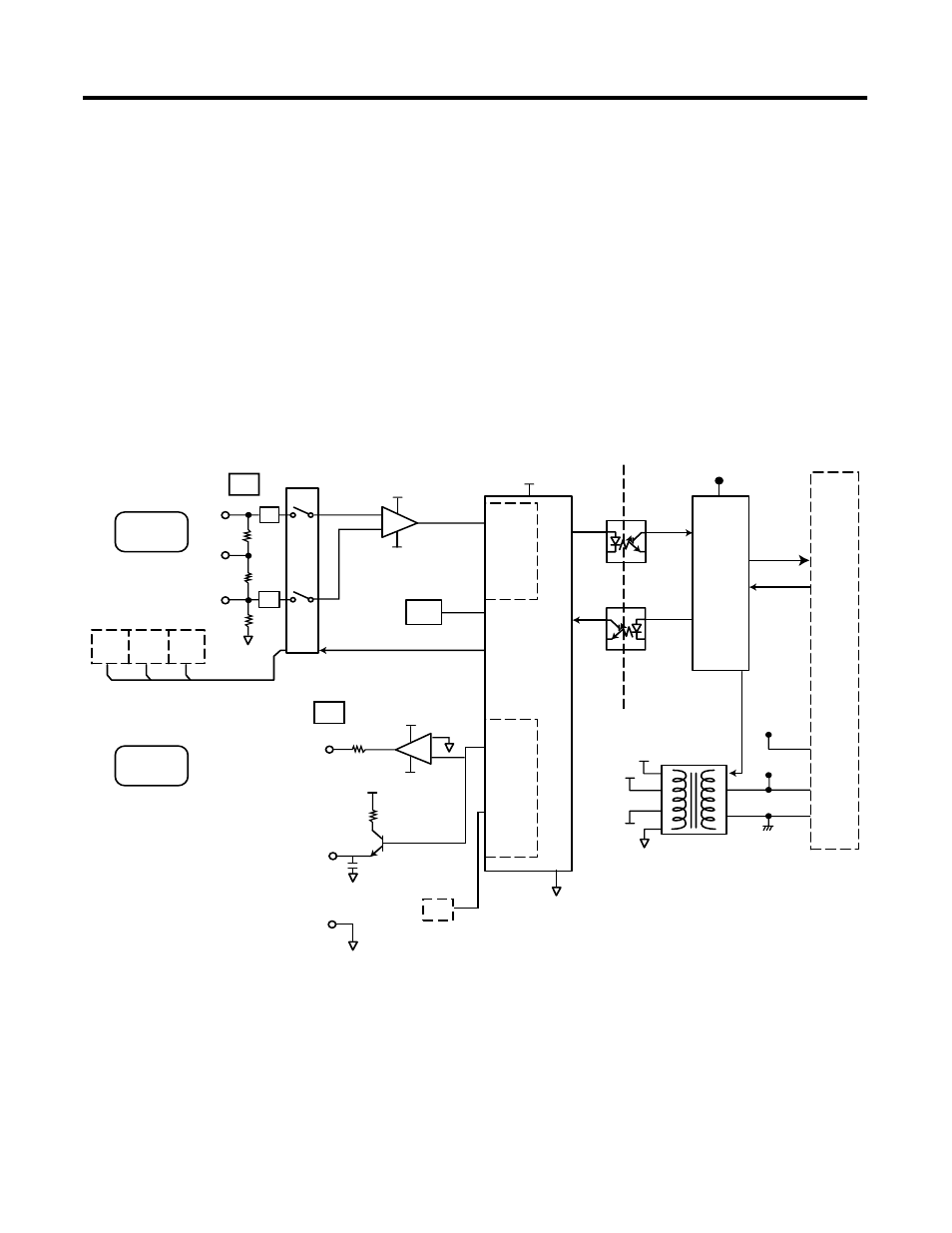

Module Block Diagram
The module’s input channel circuitry consists of four differential
analog inputs multiplexed into a single analog-to-digital (A/D)
converter. The A/D converter reads the selected input signal and
converts it to a digital value which is presented to the controller. The
multiplexer sequentially switches each input channel to the module’s
A/D converter. The module’s output channel uses a digital-to-analog
(D/A) converter to read the digital output data from the controller and
convert it to an analog output signal. See the block diagram below.
Module Calibration
The module’s input/output channel calibration is guaranteed by its
design. No field calibration is required.
