Input data file, Input data file -3, Input image -3 – Rockwell Automation 1769-IF4XOF2 Compact 8-Bit Low Resolution Analog I/O Combination Module User Manual

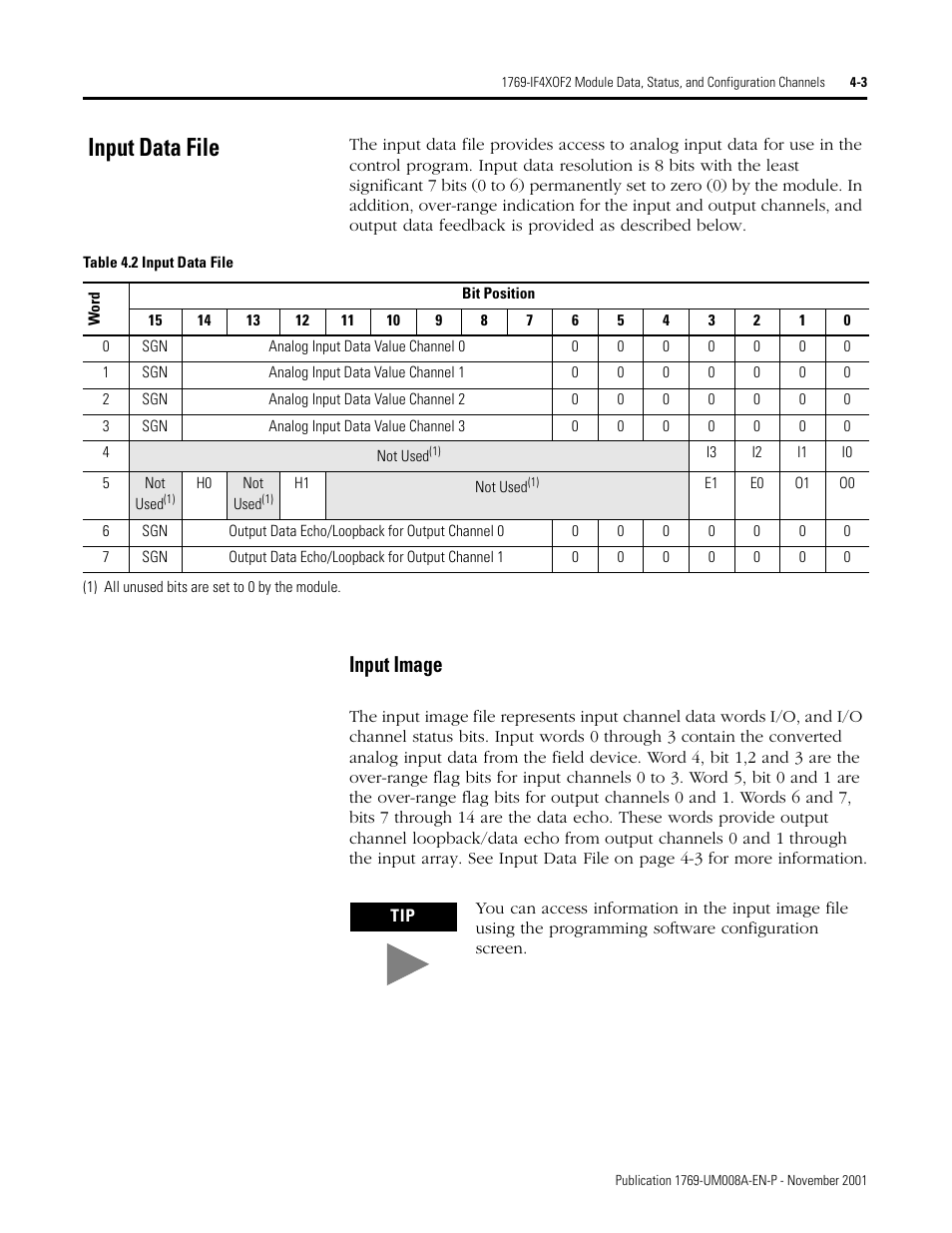

Page 47: Input image
