Rockwell Automation 1395 Digital Reference Adapter Board User Manual
Page 18

Chapter 4
Installation
4-4

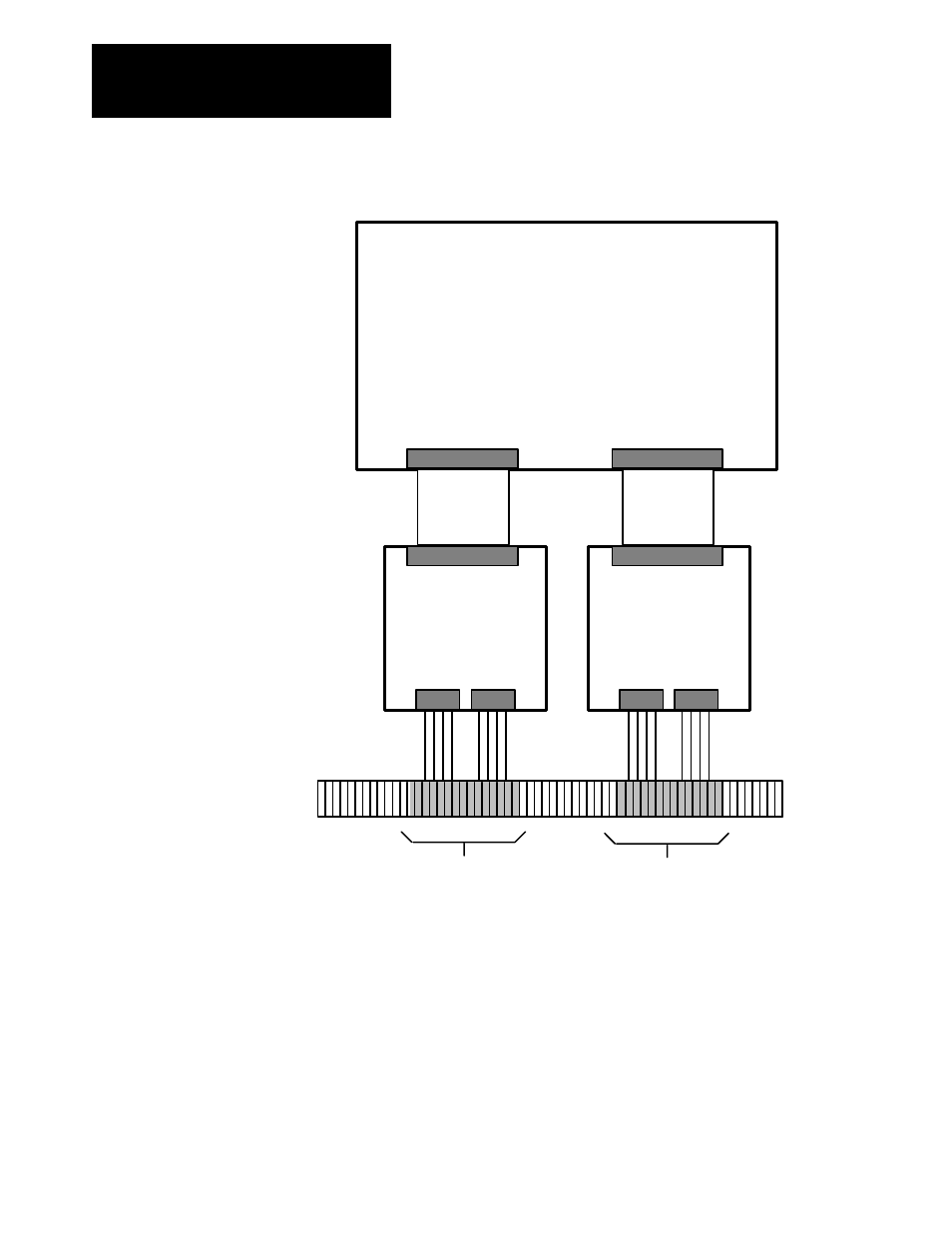

Figure 4.3
Connection of the Digital Reference Adapter Board to Port A or B
Main Control Board
ЛЛЛЛЛ
ЛЛЛЛЛ
ЛЛЛЛЛ
ЛЛЛЛЛ
J7
J6
ЛЛЛЛ
ЛЛЛЛ
ЛЛЛЛ
ЛЛЛЛ
PORT A
PORT B
J1
J1
Adapter Board
Adapter Board
J2
J3
TB3
Terminals 1 - 22
Terminals 23 - 62
J2
J3
Terminals 23 - 62
Wiring to External Devices
Wiring to External Devices
External wiring is connected to the terminal block at the bottom of the
1395 enclosure. Terminals 23 through 62 are reserved for wiring the
Digital Reference Adapter Board to external I/O devices. Refer to the
Digital Reference Adapter Block Diagram and Hardware Connection
Diagrams,
Figure 4.4
and
Figure 4.5
, for information on the terminals and
corresponding I/O.
