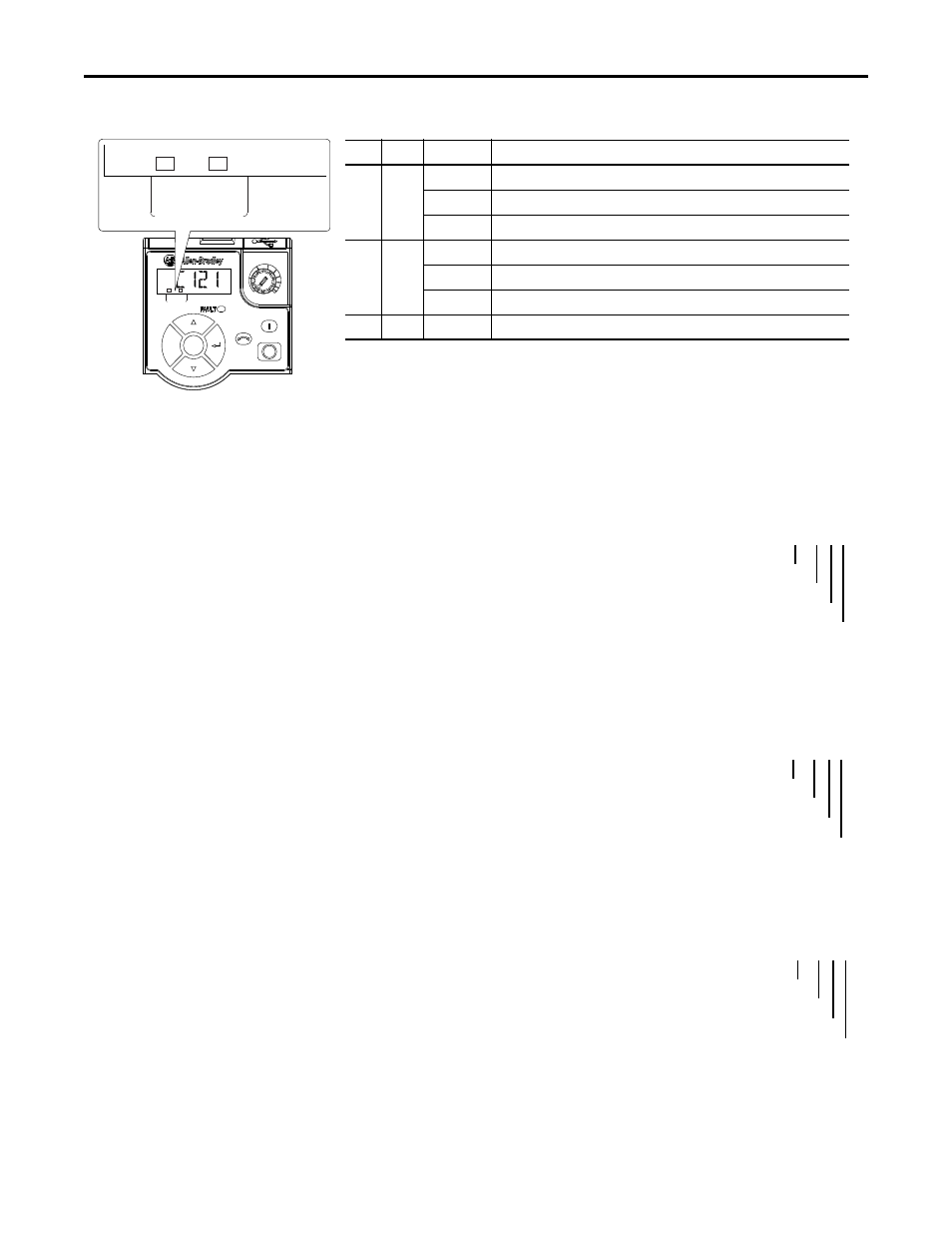

Drive and Adapter Status Indicators
Setting the IP Address, Subnet Mask, and Gateway Address
Setting an IP Addresss Using Parameters
1. Verify that parameter C128 [EN Addr Sel] is set to 1 “Parameters”.
This parameter must be set to “Parameters” to configure the IP address
using parameters.
2. Set the value of parameters C129 [EN IP Addr Cfg 1] through
C132 [EN IP Addr Cfg 4] to a unique IP address.
3. Reset the adapter by power cycling the drive.
Setting a Subnet Mask Using Parameters
1. Verify that parameter C128 [EN Addr Sel] is set to 1 “Parameters”.
This parameter must be set to “Parameters” to configure the subnet mask
using parameters.
2. Set the value of parameters C133 [EN Subnet Cfg 1] through
C136 [EN Subnet Cfg 4] to the desired value for the subnet mask.
3. Reset the adapter by power cycling the drive.
Setting a Gateway Addresss Using Parameters
1. Verify that parameter C128 [EN Addr Sel] is set to 1 “Parameters”.
This parameter must be set to “Parameters” to configure the gateway
address using parameters.
2. Set the value of parameters C137 [EN Gateway Cfg 1] through
C140 [EN Gateway Cfg 4] to desired value for the gateway address.
3. Reset the adapter by power cycling the drive.
Esc
Sel
FWD
ENET LINK
EtherNet/IP
ENET LINK
EtherNet/IP
➊
➋
➌
Item
Name
State
Description
➊
ENET
Off
Adapter is not connected to the network
Steady
Adapter is connected to the network and drive is controlled through Ethernet.
Flashing
Adapter is connected to the network but drive is not controlled through Ethernet.
➋
LINK
Off
Adapter is not connected to the network.
Steady
Adapter is connected to the network but not transmittingdata.
Flashing
Adapter is connected to the network and transmitted data.
➌
FAULT
Flashing Red
Indicates drive is faulted.
Default = 0.0.0.0
192.168.1.62
[EN IP Addr Cfg 1]
[EN IP Addr Cfg 2]
[EN IP Addr Cfg 3]
[EN IP Addr Cfg 4]
Default = 0.0.0.0
255.255.255.0
[EN Subnet Cfg 1]
[EN Subnet Cfg 2]
[EN Subnet Cfg 3]
[EN Subnet Cfg 4]
Default = 0.0.0.0
192.168.1.1
[EN Gateway Cfg 1]
[EN Gateway Cfg 2]
[EN Gateway Cfg 3]
[EN Gateway Cfg 4]
