3–4

Installation and Mounting

Publication 800-UM001A-EN-P – June 2004

Hanging the Pendant Station

Dimensions in millimeters (inches). Dimensions are not intended to
be used for manufacturing purposes.

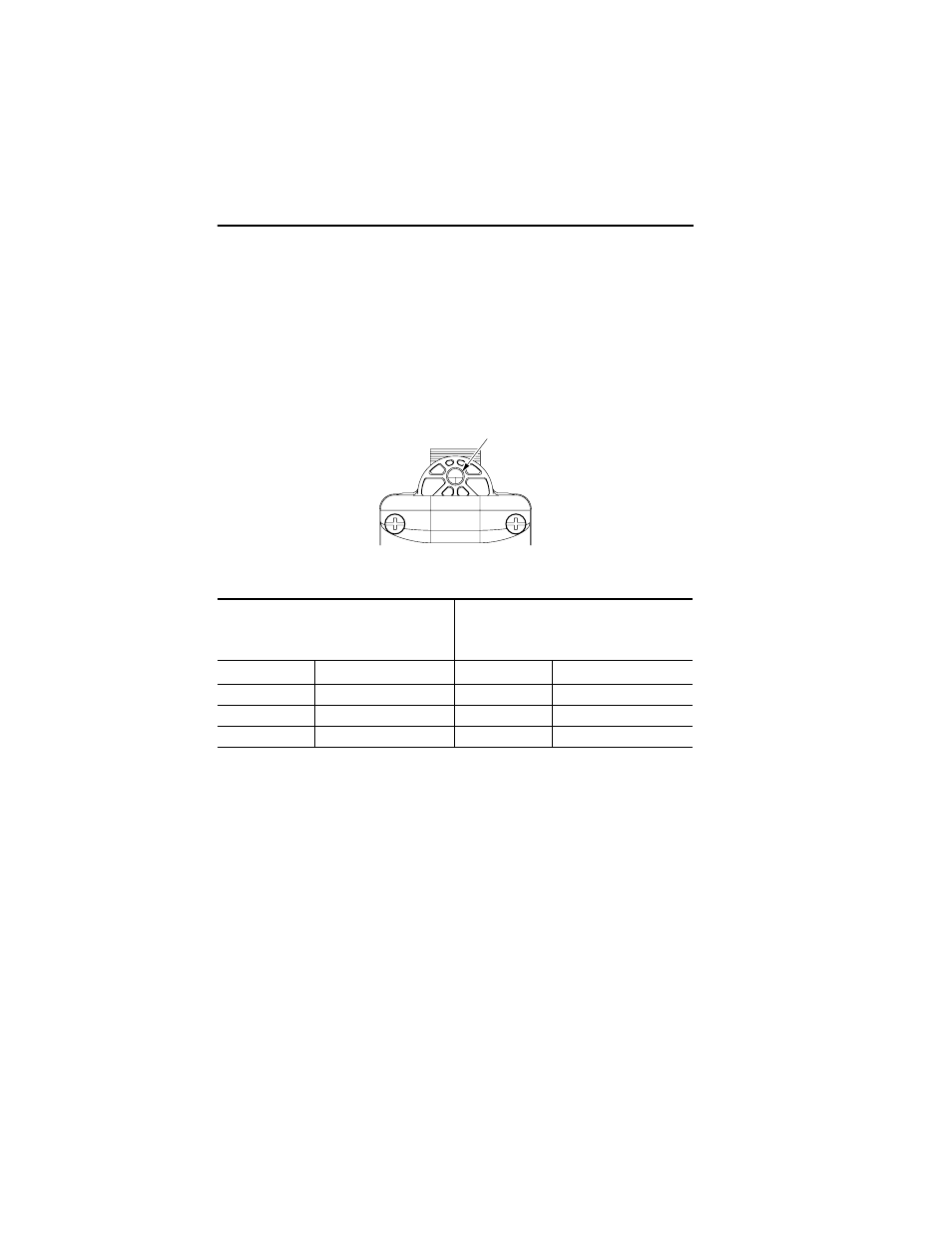

Figure 3.2 Pendant Mounting

Quick Disconnect Cordsets

For more information on cabling options, please refer to DeviceNet

Catalog DN-2.15 or Sensor Catalog C113.

Recommended Strain-Relief Method

1/8 in. diameter wire rope/aircraft cable through eyelet of base,
crimped into a loop/eye with aluminum duplex sleeve.

Standard

4-Pin Straight Quick Disconnect

Cable-Mini

DeviceNet

5-Pin Straight Quick Disconnect

Cable-Mini

Length

Cat. No.

Length

Cat. No.

1.8 m

889N-F4AF-6F

1 m

1485R-P1N5-C

3.7 m

889N-F4AF-12F

2 m

1485R-P2N5-C

6.1 m

889N-F4AF-20F

3 m

1485R-P3N5-C

∅ 6
(.24)
