Connection to the network, 2 pendant station parameter configuration, Pendant station parameter configuration – Rockwell Automation 800F DeviceNet Pendant Stations User Manual
Page 16
2–2
Quick Start
Publication 800-UM001A-EN-P – June 2004
Connection to the Network
Wire the DeviceNet
™ Pendant Station to an operating network. It will
be connected with the mini connector. The device is fully powered by
the network.
For more information on system installation, please refer to the
DeviceNet
™ Cable System – Planning and Installation Manual
(Publication DN-6.7.2).
Pendant Station Parameter Configuration
In order for proper operation, the parameters must be configured. The
parameters can be configured using RSNetWorx for DeviceNet
™.

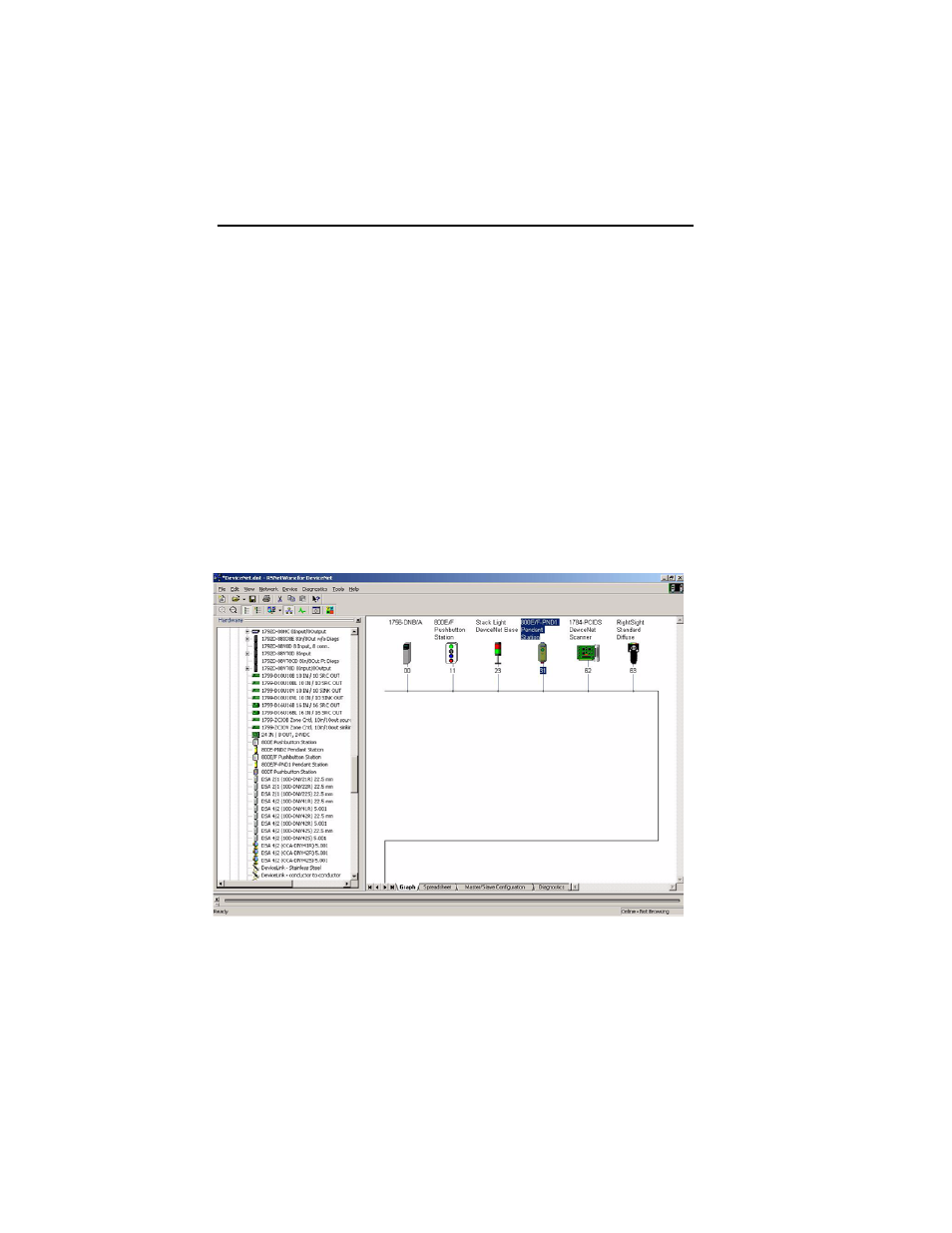

To access the parameter configuration screen from the Online view,
double click on the 800E/F Pendant Station Icon.
