3–2

Installation and Mounting

Publication 800-UM001A-EN-P – June 2004

Setting the DeviceNet

Node Address

The Node Address for the 800E/F Pendant Stations must be set
through Node Commissioning. The factory default is Node 63.

To set the DeviceNet

™ Node Address:

1. Start RSNetWorx and select TOOLS from the Menu Bar.

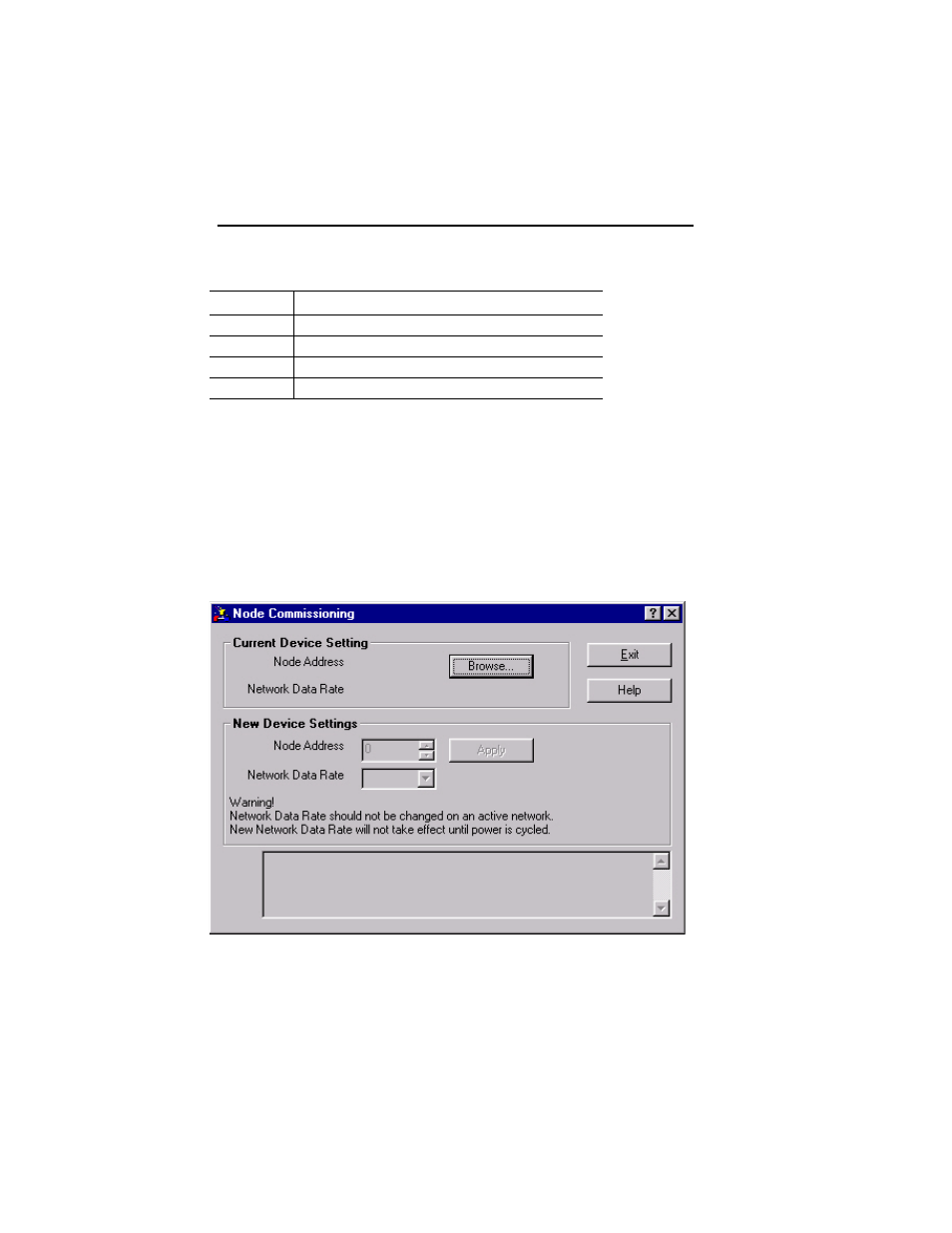

2. Select Node Commissioning. The following screen will appear.

3. Select Browse and select the Pendant Station at Node 63.

4. Change the Node Address to the desired address and click on

Apply.

Data Rate

Cable Length (Maximum)

125KB

500 m (1600 ft)

250KB

200 m (600 ft)

500KB

100 m (300 ft)

Autobaud

See above, based on data rate of connected network
