1–4

Overview of DeviceNet

™ Pendant Station

Publication 800-UM001A-EN-P – June 2004

Typical DeviceNet

Configuration

A DeviceNet

™ Network supports multiple Pendant devices and

allows them to communicate with other network devices (up to 64).

The DeviceNet

™ Pendant operates on the network as a slave device. It

does not initiate communications except for change-of-state,
duplicate I/O messages and a node address check on power-up. The
master writes data to, and receives data back from, the DeviceNet

Pendant.

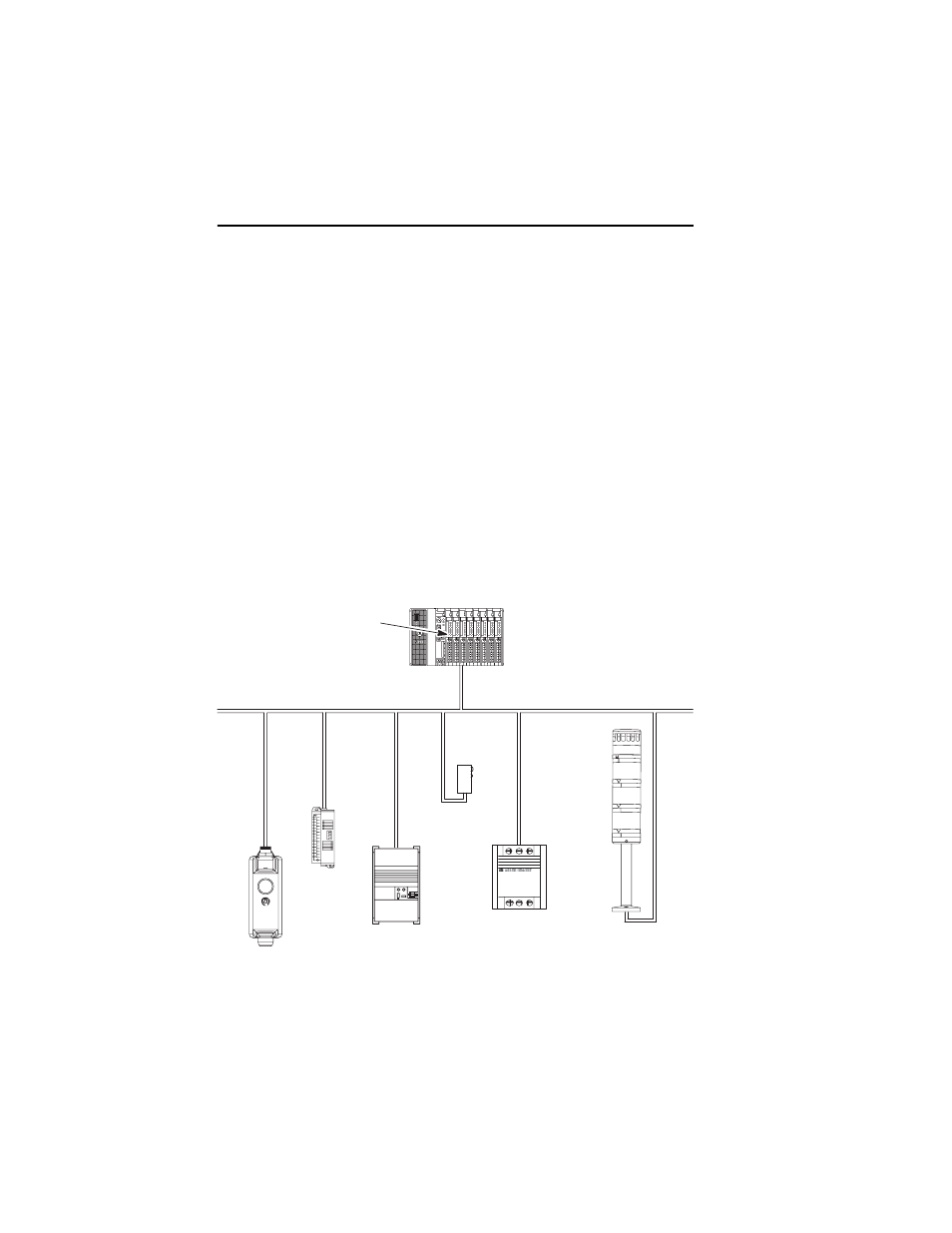

The following Device Net

™ configuration shows a variety of products

operating as slaves to a PLC-5 controller with a 1771-SDN
DeviceNet

™ Scanner Module.

SMC

Block I/O

Drive

Sensor

Smart Motor Controller

800E/F Pendant

DeviceNet™ Network

Stack Light

DeviceNet™ Scanner Module

PLC-5 Controller
