Chapter 2
User interface
Log window

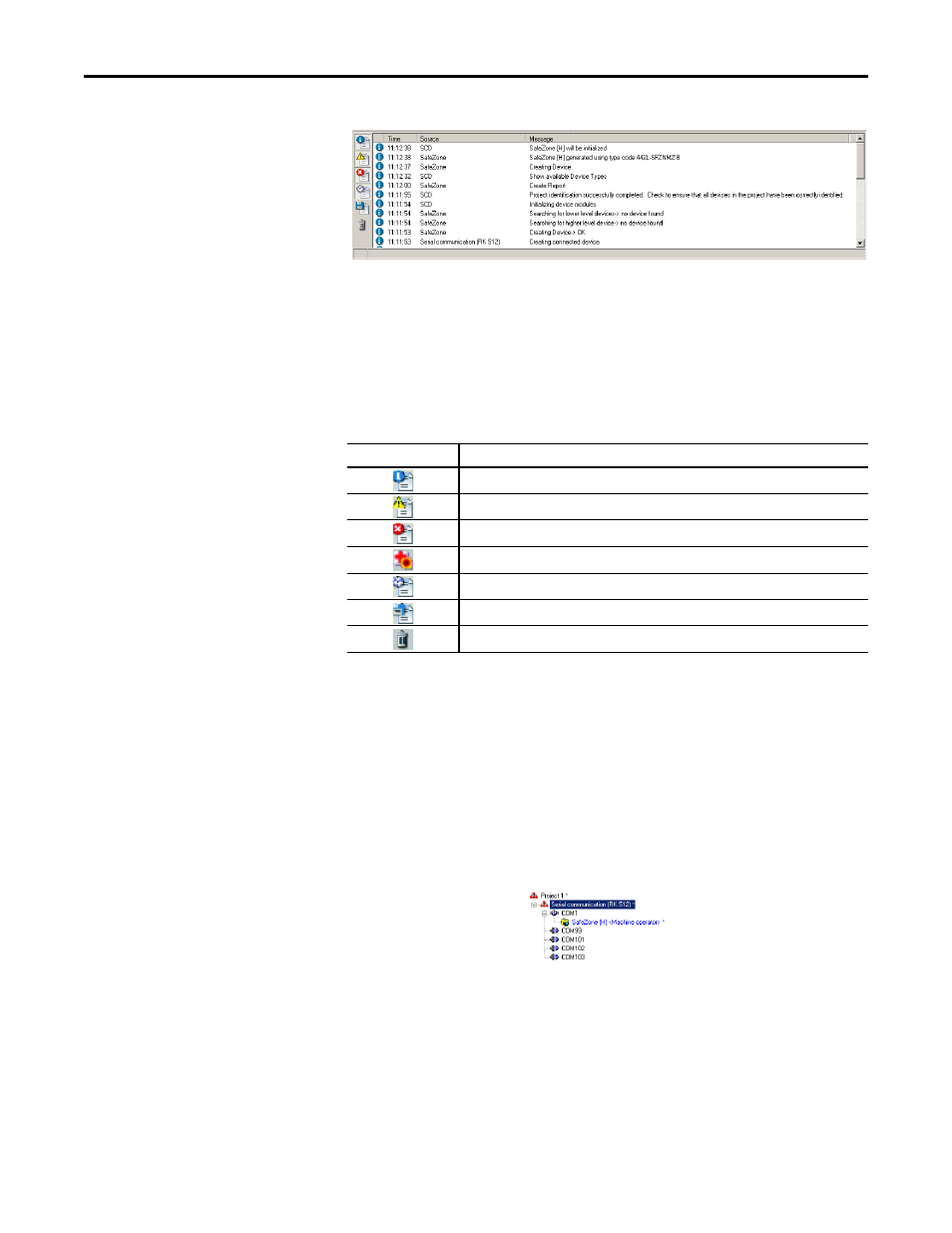

Figure 5 - Log window
The log window displays a record of the executed actions, warnings and error
messages when working with the SCD.
The icons at the left-hand margin of the log window can be used to have
information about the executed actions, warnings, errors and the time sequence
of the program execution displayed.
The log window can be shown or hidden.
Table 4 - Icons in the log window
How to show or hide the log window:
From the View menu select the Log window command.
If the log window toolbar was hidden before, it will now be shown.
If the log window toolbar was shown before, it will now be hidden.
Project tree
The project tree of the devices is shown in the navigation area of the user
interface.
Figure 6 - Project tree
The project tree consists of:
•
A project icon
•
An icon for the communication protocol (serial communication, etc.)
•
One or more icons for the physical connections at your PC that support the
communication protocol
•
One or more device icons
Icon
Meaning of the icon
Show/hide information
Show/hide warnings
Show/hide errors
Show/hide debug information
Show/hide time
Save log as text file
Delete log entries
