22 Rockwell Automation Publication 440G-UM001A-EN-P — November 2013
Chapter 3 Installation and Wiring
Note: Add the letter “S” to above cat. nos. for stainless steel connectors;
e.g. 889DS-F8ABDM-1
Note: Add the letter “S” to above cat. nos. for stainless steel connectors;
e.g. 889DS-F5ACDM-1
Note: Add the letter “S” to above cat. nos. for stainless steel connectors;
e.g. 889DS-F5AC-1
More detailed information may be found online at ab.com/product
catalogues/ (search for “Connection Systems”).

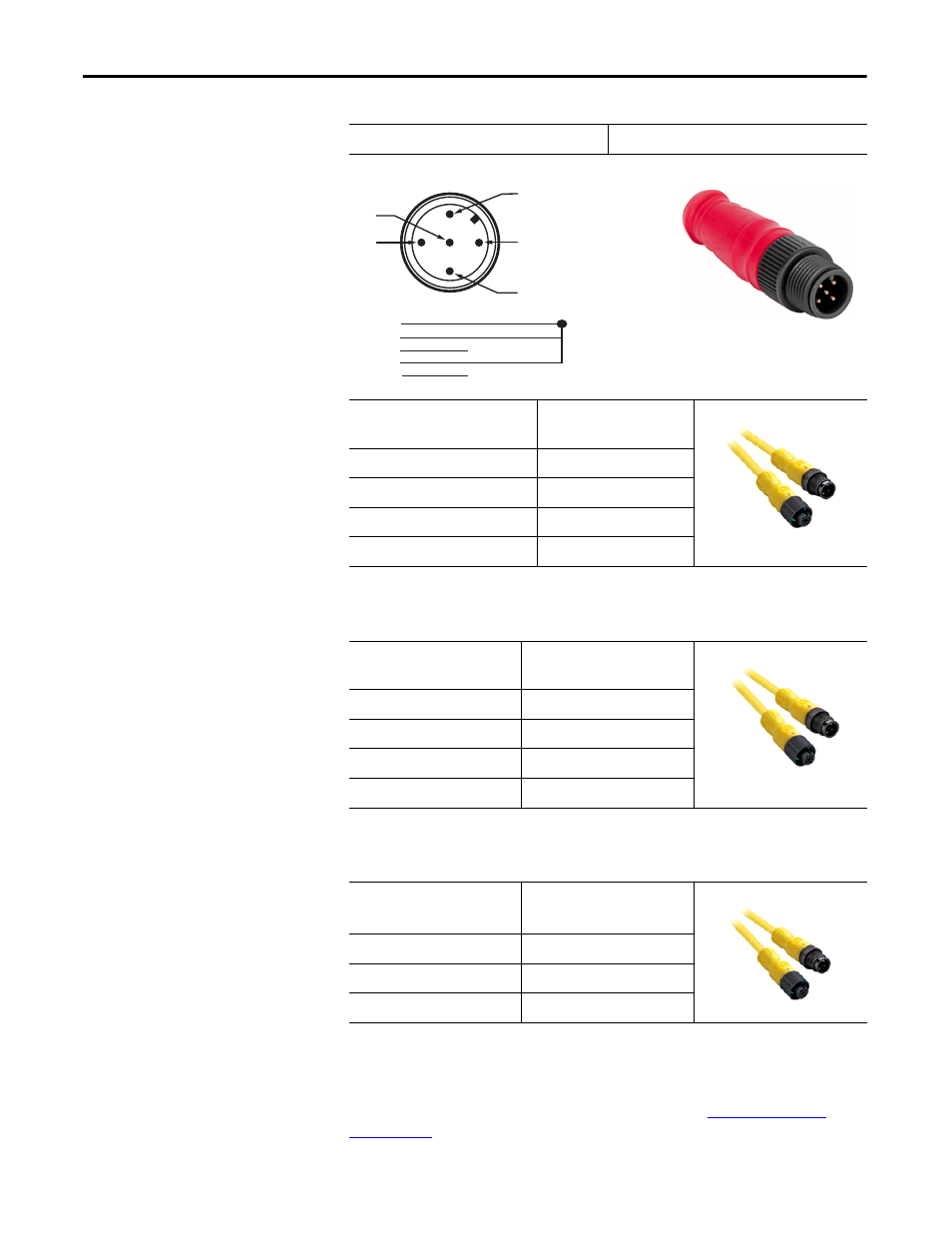

Safety-wired Shorting Plug Cat. No 898D-418U-DM
8-pin Device Patchcords Cat. No.
1 meter, 8-pin 889D-F8ABDM-1
2 meters, 8-pin 889D-F8ABDM-2
5 meters, 8-pin 889D-F8ABDM-5
10 meters, 8-pin 889D-F8ABDM-10
5-pin Patchcords Cat. No.
1 meter, 5-pin 889D-F5ACDM-1
2 meters, 5-pin 889D-F5ACDM-2
5 meters, 5-pin 889D-F5ACDM-5
10 meters, 5-pin 889D-F5ACDM-10
5-pin Cordsets
Cat. No.
2 meters, 5-pin 889D-F5AC-2
5 meters, 5-pin 889D-F5AC-5
10 meters, 5-pin 889D-F5AC-10
PWR
OSSD 1+
OSSD 2+
NA
Pin 1
Pin 2
Pin 3
Pin 4
NA
Pin 5
2
1
4
5
3
