Rockwell Automation Publication 440G-UM001A-EN-P — November 2013 21
Installation and Wiring Chapter 3

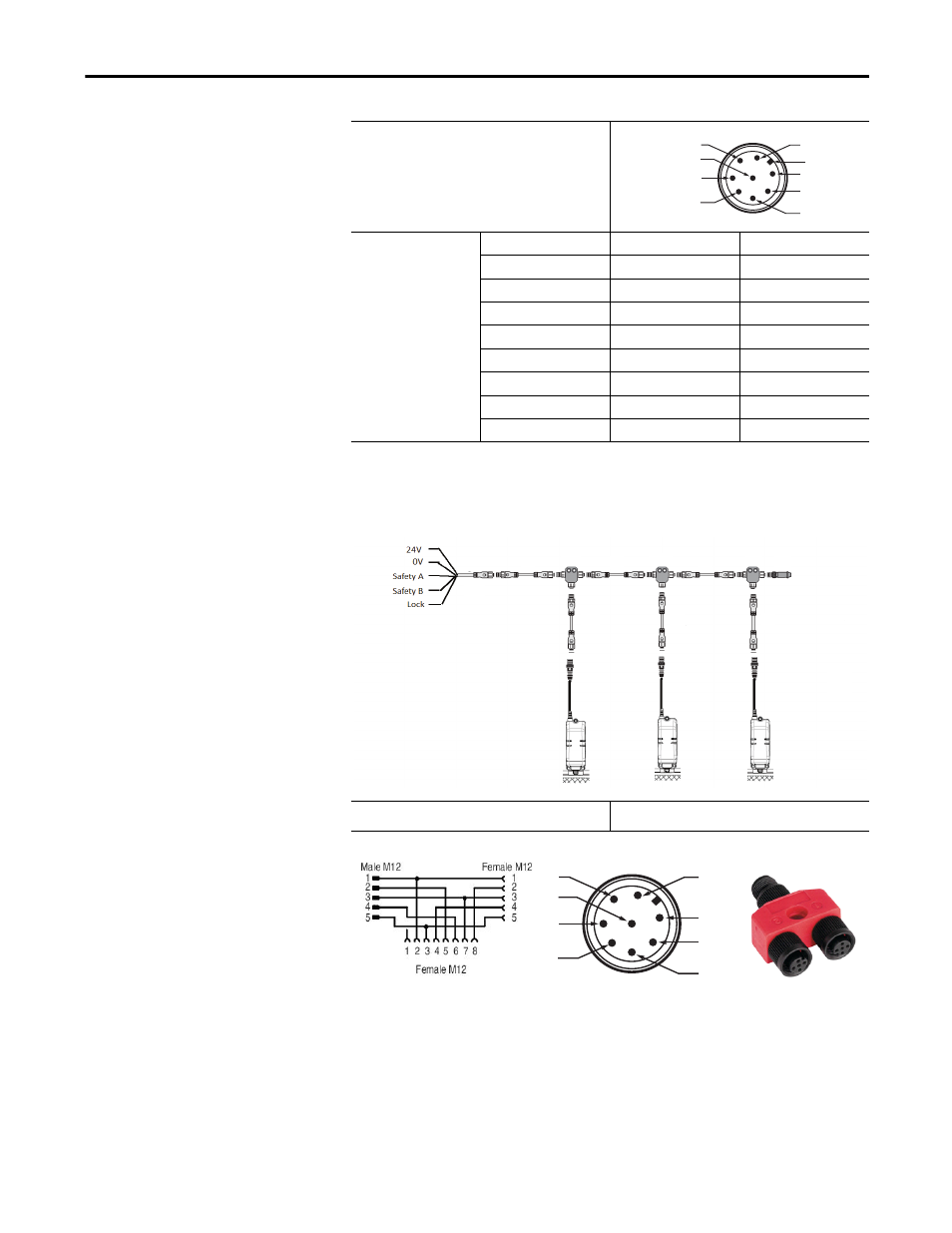

Wiring
Connections Systems The following connection system components facilitate connection:
8-Pin Micro (M12)
8-Pin Cordset
889D-F8AB-* or
cable version
Color Function Pin
White Aux 1
Brown 24V DC+ 2
Green Lock 3
Yellow Safety B+ 4
Grey Safety A 5
Pink Safety B 6
Blue Gnd/0V 7
Red Safety A+ 8
2 24V DC+
1 Aux
7 0V
6 Safety B
3 Lock Command
8 Safety A+
4 Safety B+
5 Safety A
Keyway
 Safety-wired Splitter/T-Port Cat. No 898D-438Y-D8
2
1
7
6
3
8
4
5
