Chapter
8
Troubleshooting
The purpose of this chapter is to help you troubleshoot your PD1
Module.
Setup Make sure parameters P46, P59, P66 and P116 have been set
according to chapter 5.
LED Indicators and
Troubleshooting The PD1 Status LEDs can help you troubleshoot the module in the
event that problems occur. Refer to the paragraphs that follow for
details.
READY LED
The green READY LED will illuminate whenever the PD1 Module is
connected to the drive and power is applied.
ATTENTION: Servicing energized industrial control
equipment can be hazardous. Electrical shock, burns, or
unintentional actuation of controlled industrial equipment
may cause death or serious injury. Follow the safety-related
practices of NPFA 70E, Electrical Safety for Employee
Workplaces, when working on or near energized equipment.
Do not work alone on energized equipment.
ATTENTION: Do not attempt to defeat or override fault
circuits. The cause of a fault indication must be determined
and corrected before attempting operation. Failure to
correct a drive or system malfunction may result in personal
injury and/or equipment damage due to uncontrolled
machine system operation.
!
!

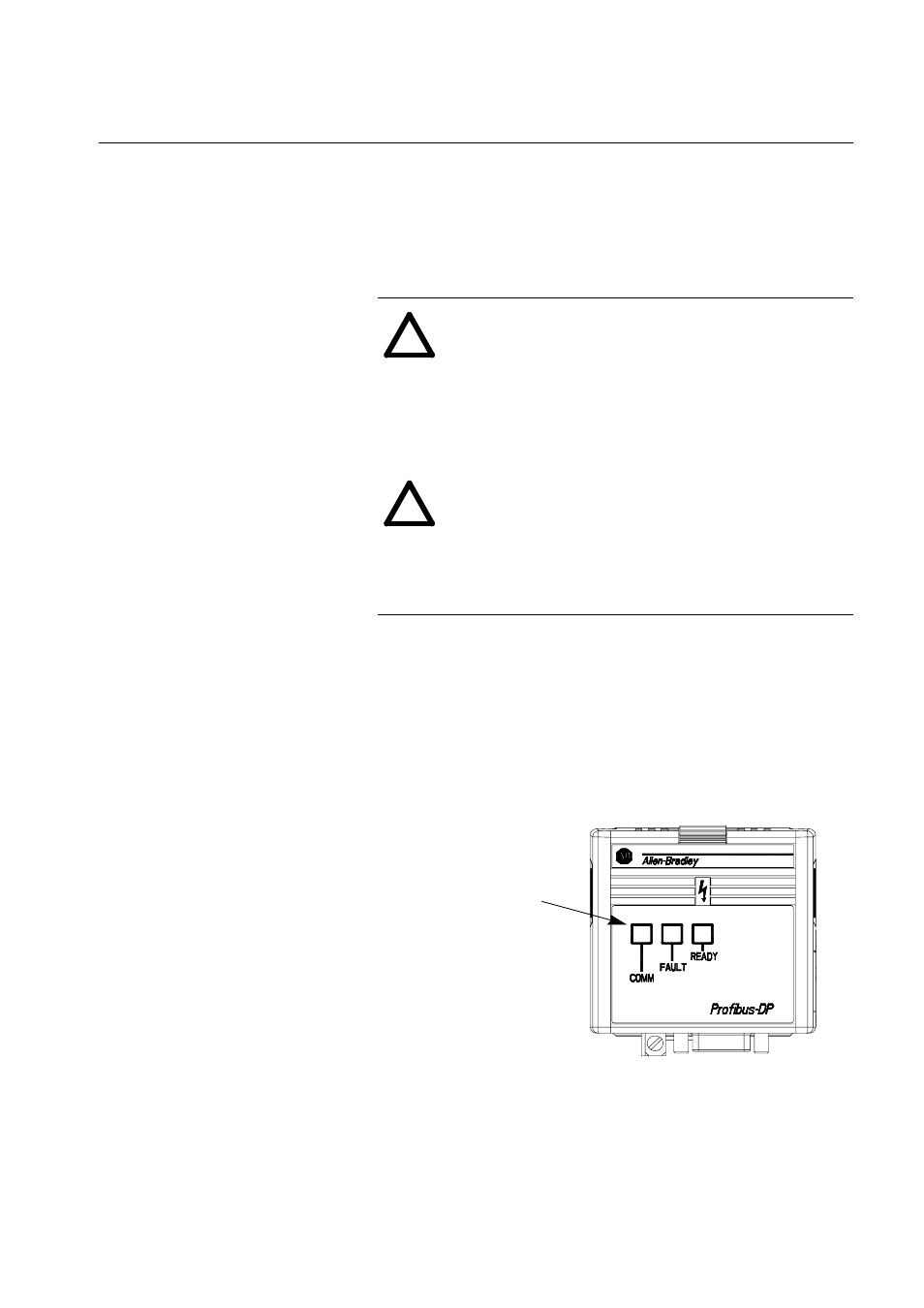

Status LEDs
