Item No.

Description

Part No.

Quantity

805H

806H

807H

808H

809H

810H

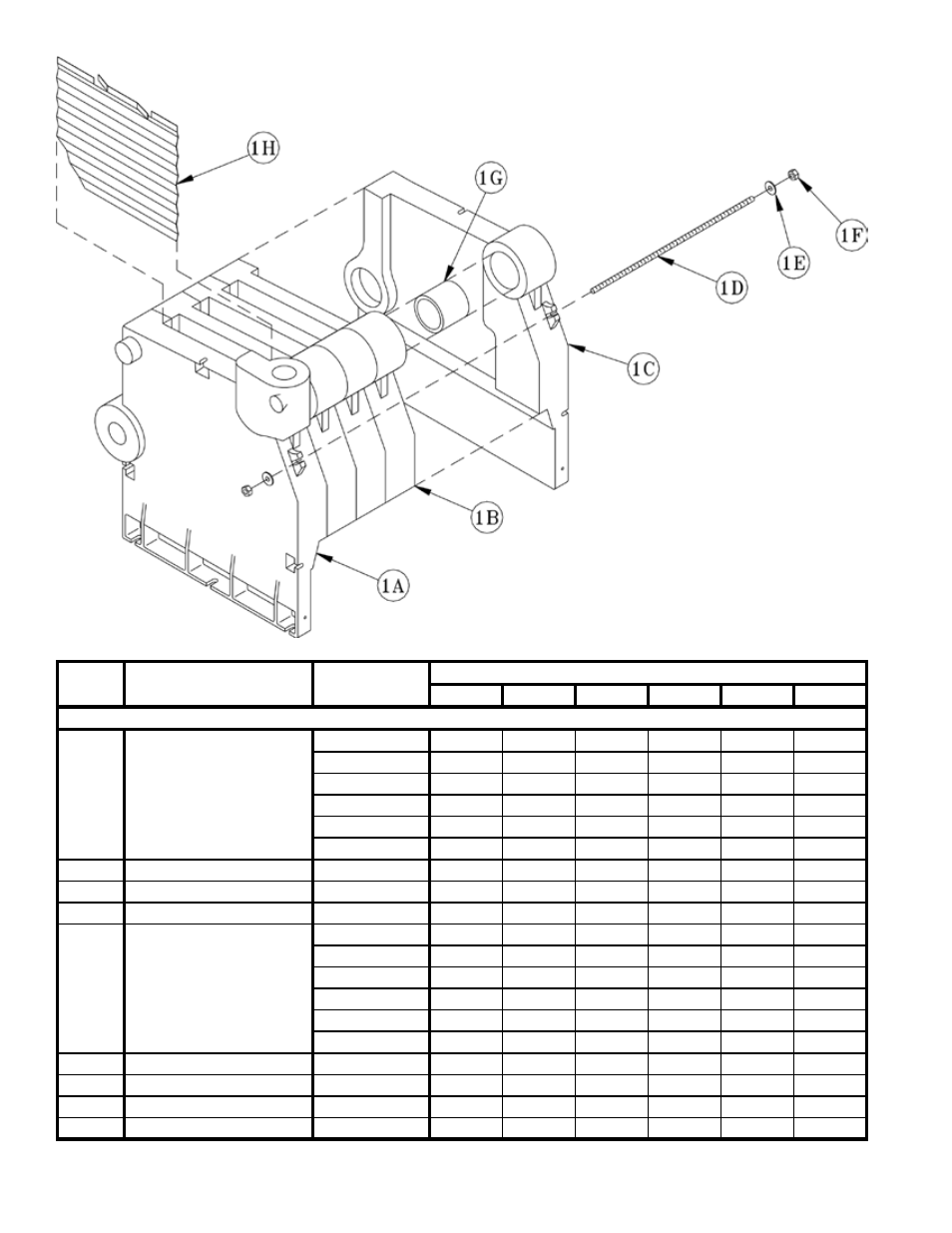

. Heat Exchanger Assembly

1

Complete (Less Flue Baffles)

6171605

1

---

---

---

---

---

6171606

---

1

---

---

---

---

6171607

---

---

1

---

---

---

6171608

---

---

---

1

---

---

6171609

---

---

---

---

1

---

6171610

---

---

---

---

---

1

1A

Left End Section

7171601

1

1

1

1

1

1

1B

Intermediate Section

7171603

3

4

5

6

7

8

1C

Right End Section

7171602

1

1

1

1

1

1

1D

Tie Rod

80861032

1

---

---

---

---

---

80861033

---

1

---

---

---

---

80861013

---

---

1

---

---

---

80861034

---

---

---

1

---

---

80861035

---

---

---

---

1

---

80861036

---

---

---

---

---

1

1E

Washer

80860600

4

4

4

4

4

4

1F

Nut

80860400

4

4

4

4

4

4

1G

Slip Nipple, 3”

7066002

8

10

12

14

16

18

1H

Flue Baffle

7111622

4

5

6

7

8

9
