FlowBar Installed During Hard Ceiling Installation
STEP 1. Identify the Diffuser Border Type
There are five different extrusion styles (identified as “Frame Types” in
this manual) which are combined to form eight different Border Types. Border Types are identified by combining the two frame styles used i.e.
Border Type 16 has one frame #1 and one frame #6.
[FlowBar BT11]
Last edited by: TVDR
Last edited: 4-26-99
FL-15
HIGH THROW
BORDER 22
Last edited by: TVDR
Last edited: 4-26-99
[FlowBar BT33]

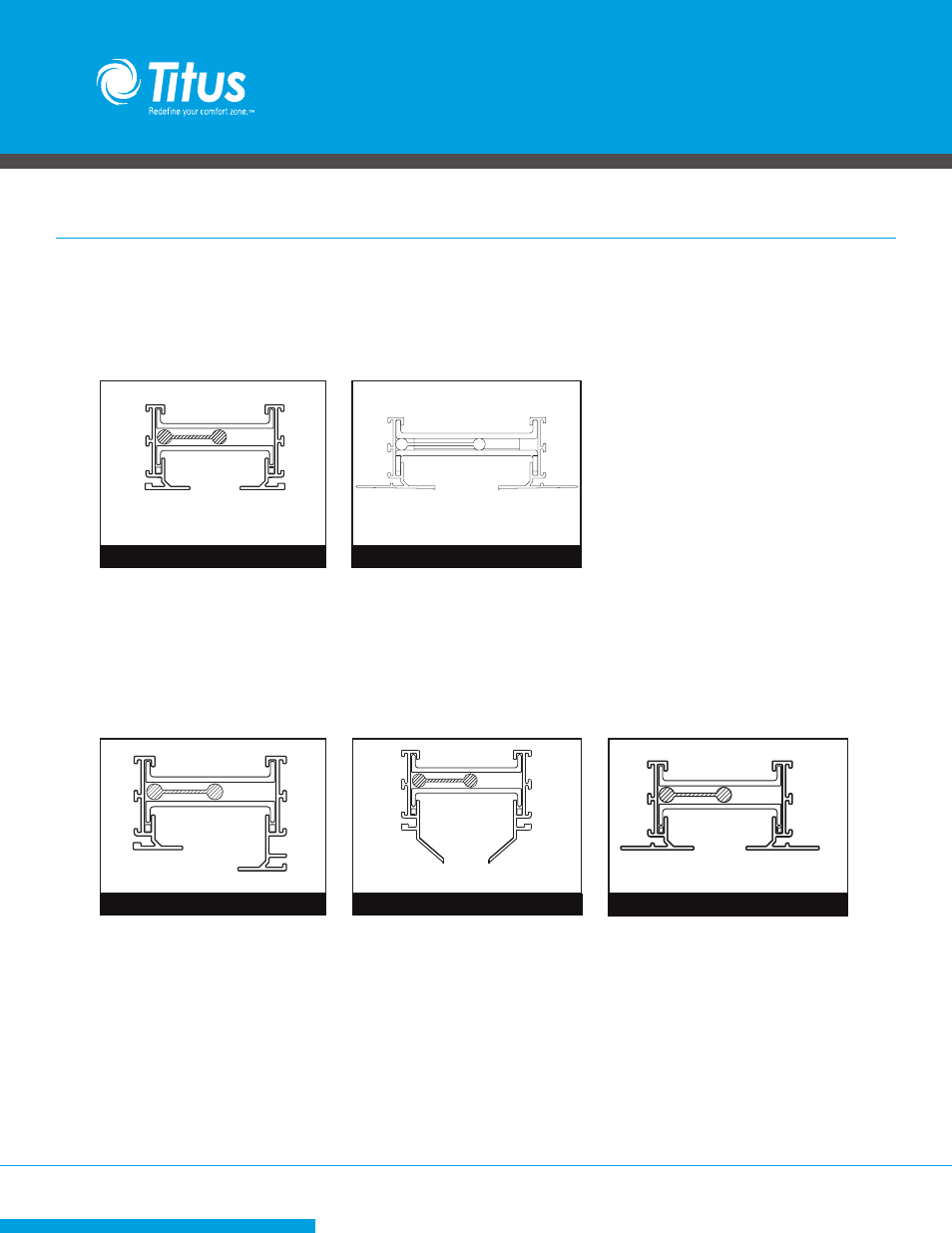

FRAME 1. The outer edge of the face
flange is even with the stack head for
flush mounting. Frame 1 is used with
border types 11, 13, 14 or 16.
FRAME 2. is designed for use with hard
ceiling applications where the finishing
flange is taped and spackled into the
ceiling to leave only the air slot exposed
to the room. Frame 2 is used with order
type 22.
FRAME 3. The outer edge of the face
flange is extended 3/16” out to provide a
surface for sheetrock or acoustic ceiling
tile to lay on. Frame 3 is used with border
types 13 or 33.
[FlowBar BT14]
Last edited by: TVDR
Last edited: 4-26-99
[FBD10C]
Last edited: 7/21/97
[Metric]
Edited by: JLM
[MFBD10C]
FRAME 4. has an extended height for
use with uneven ceiling heights or
where the ceiling meets the wall. Frame
4 is used with frame 1 to form border
type 14.
FRAME 5. Like frame 2, is designed for
use with hard ceiling applications where
the finishing flange is taped and spack-
led into the ceiling. The sheetrock or
wood for frame 5 is cut at an angle to
match the frame. Frame 5 is used with
border ype 55.
FRAME 6. The outer edge of the face
flange is extended 1/2” out to provide an
extended surface for sheetrock or acoustic
ceiling tile to lay on. Frame 6 is used with
border types 16, 66 & 77.
Border Type 77 utilizes the QuickClip®
Mounting System allowing FlowBar to be
installed after the ceiling is in place.
(Border Type 11 shown)
(Border Type 14 shown)
(Border Type 22 shown)
(Border Type 55 shown)
(Border Type 33 shown)
(Border Type 66 shown)
