2 Installation Manual - FlowBar
FlowBar IOM
Redefine your comfort zone. ™ | www.titus-hvac.com
FlowBar Installed During Hard Ceiling Installation
Titus FlowBar Linear Diffusers are designed to integrate with the ceiling
system. The integration process takes place by installing the diffuser
concurrently with the ceiling. Figure 1 below summarizes the steps re- quired to install a FlowBar Diffuser System as part of the hard ceiling
installation.
FRAME
MOUNTING
SCREWS
HARD CEILING CLIP
CENTERS
SPLINE SUPPORT CLIP
SS1
10" MAXIMUM
HI, H2, H3 or H4
FRAME
FRAME OPENING
IN TABLE 1
WIDTH (W) SHOWN

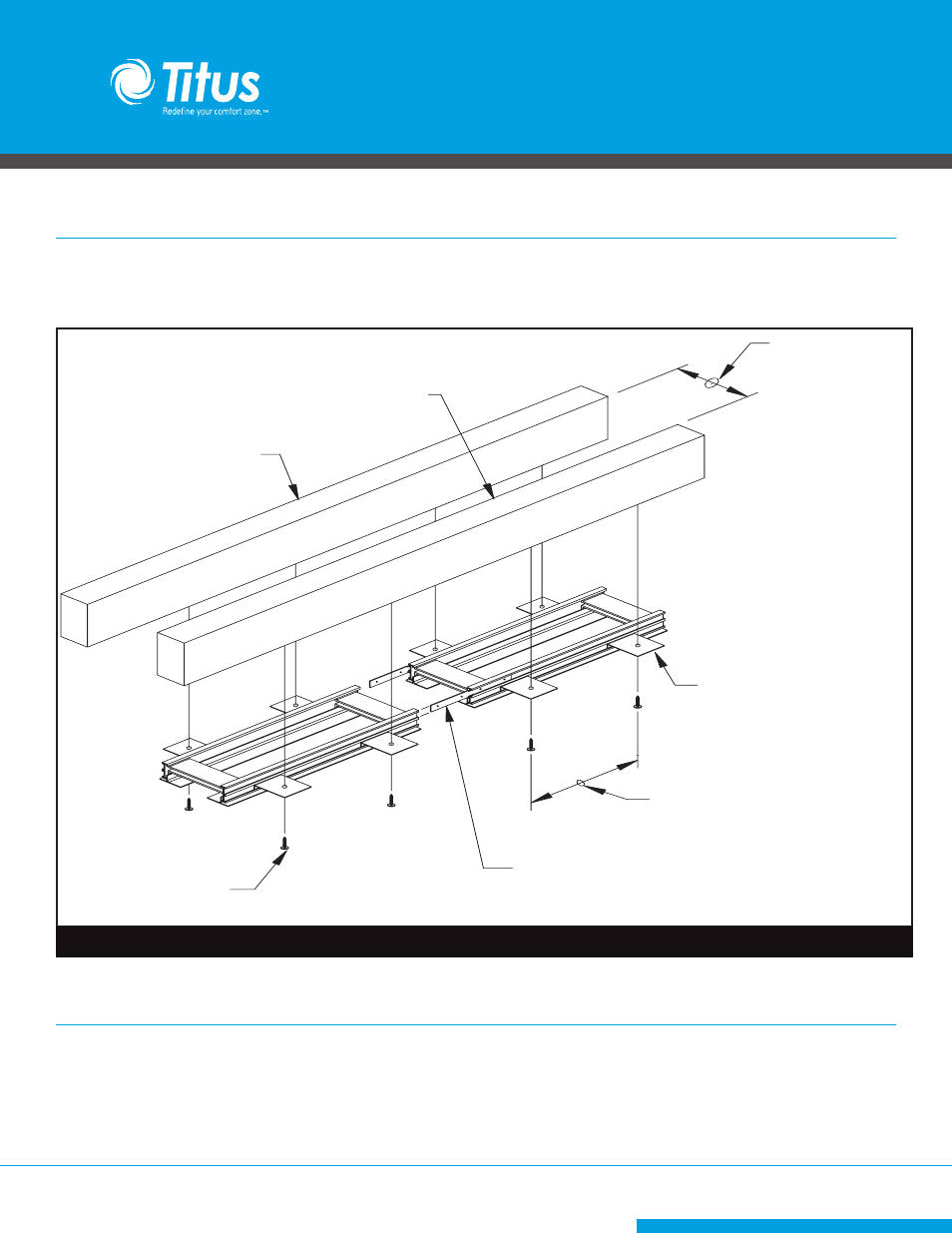

Figure 1. Installation of FlowBar with a Hard Ceiling
Summary of Steps to Install FlowBar with a Hard Ceiling
STEP 1. Identify the Diffuser Border Type
STEP 2. Construct Ceiling Frame Work
STEP 3. Attach Mounting Clips to Diffuser
STEP 4. Attach Diffuser to Ceiling Frame Work
STEP 5. Attach Plenum to Diffuser
FRAME
FRAME
MOUNTING
SCREWS
SPLINE SUPPORT CLIP
SS1
10” MAXIMUM
CENTERS
HARD CEILING CLIP
H1, H2, H3, or H4
FRAME OPENING WIDTH
(W) SHOWN
IN TABLE 1
