Project CAPex savings on new, or retrofit installations
• The SSC can significantly reduce Project CAPex by reducing SIP temperature sensor/trap assembly TIC
(total installed cost), by reducing the cost for OEM process skids, or for retrofit and new site built installa-
tions. The savings accrue from the SSC's smaller installed space envelope relative to traditional site built
SIP downcomer assemblies, and from the installation labor, materials handling and purchasing expense
reduction associated with the purchase of a prefabricated SSC SIP Assembly.
TIC (Total Installed Cost) reductions
— Significant reductions in Installation Labor and Material Handling costs: Everything comes
preassembled sealed in tagged plastic bags: no on site material consolidation, staging, tube bending,
assembly, welding, polishing, or work inspection labor costs
— One purchase order for Tubing, Fittings, Valves, Temperature Sensor, and Steam Trap
Process skid capital cost reduction:
— Use of the SSC will result in up to 15" skid height reduction – lower overall process skid material
and labor costs
Process retrofit capital cost reduction:
— SSC allows use of SIP steam trap/sensor in vertically constrained spaces (under vessels) without
altering vessel height or requiring thru-the-floor downcomers
How does the SSC reduce the installed space envelope required for SIP downcomer assemblies?
• The SSC reduces the lineal and vertical distance needed between the SIP temp sensor and the steam trap
by a minimum of 80%.
With the SSC, vertical head space is reduced by 15.6" if enduser practice calls for the industry preferred
18" lineal - vertical downcomer. For 18" - 12" vertical, bent tube installations, the savings are 9.6".
With the SSC, vertical head space reductions on 12" vertical tube downcomer (industry minimum lineal
distance) assemblies is also 9.6". See installations.
-2-
f
eatureS
o
o
o
o
o
12.0 (305mm)
10.0
(254mm)
Sanitary RTD
18.0 (457mm)
7.43
(189mm)
5.05
(128mm)

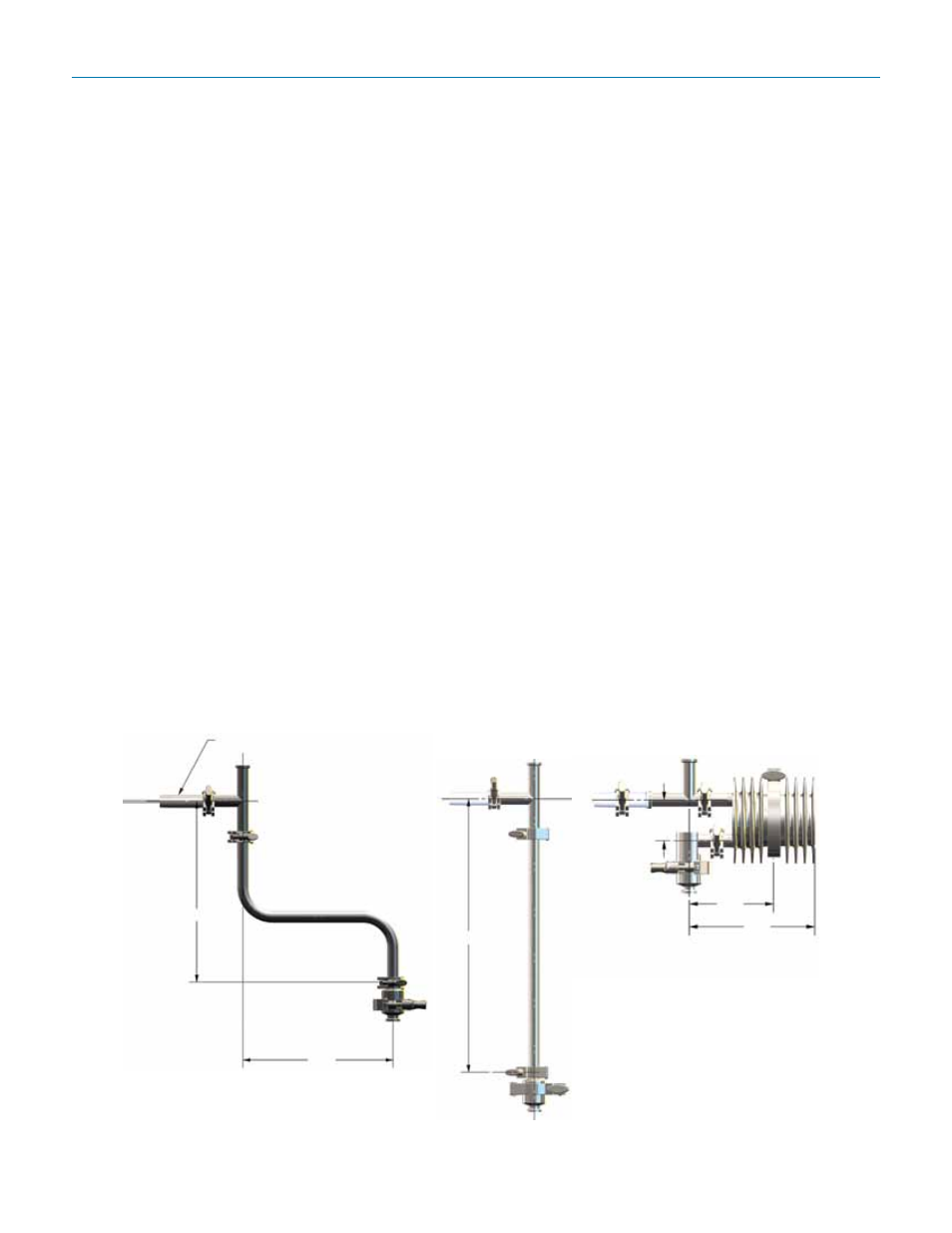

Compact SSC installation requires
only 2.37" between sensor tee
and trap inlet
Typical 18" lineal, 12" vertical (bent tube)
downcomer assembly
2.48
(63mm)
