Sensaphone CELL682 User Manual
Page 52
50
Cell682 User’s Manual

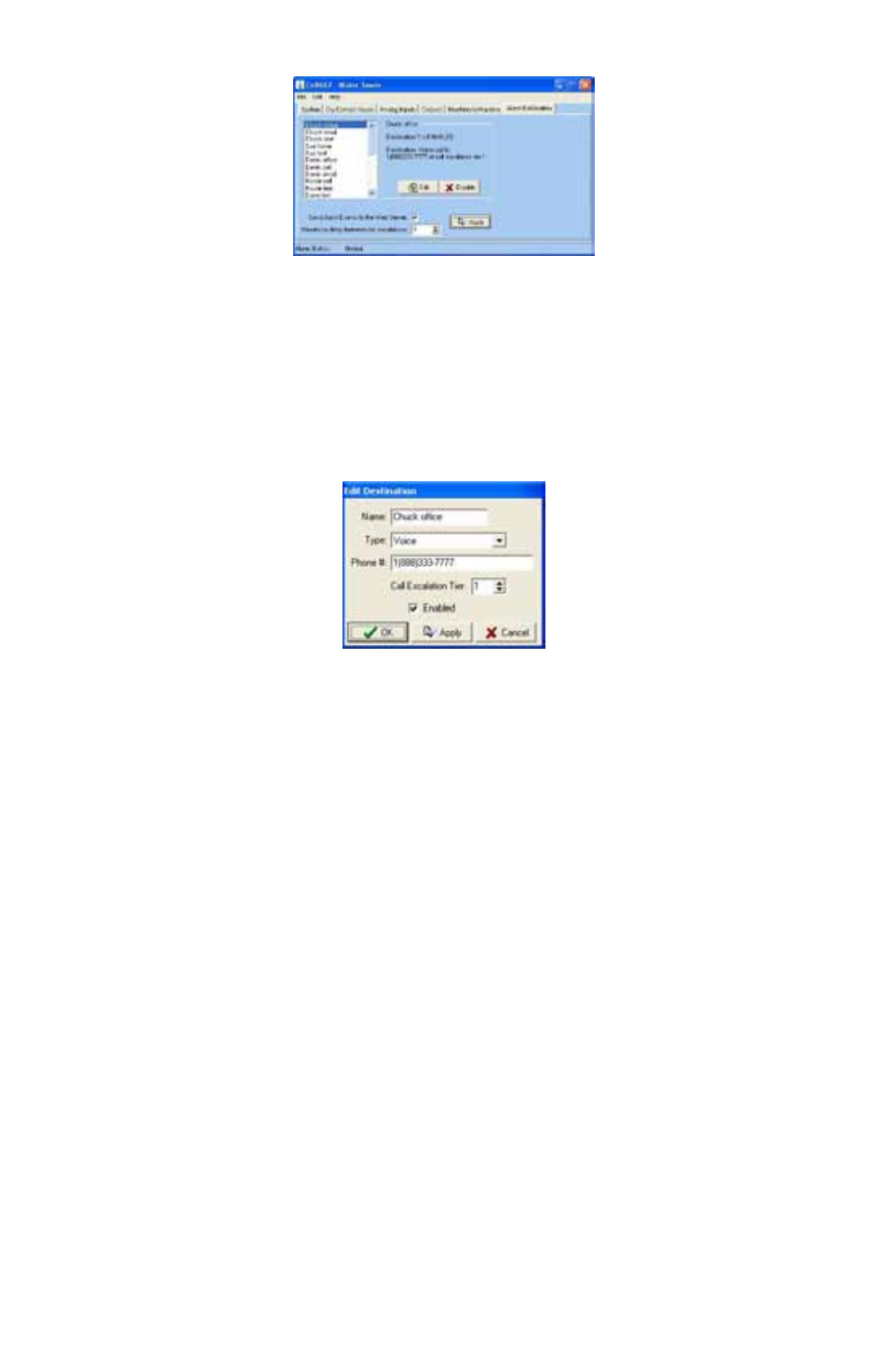

Figure 1: Alarm Notification
This screen provides a list of the programmed alarm destinations. To program
or change a destination’s information, click on the name of the person to edit
(or select unused for a new entry) and then click the Edit button. The Edit
Destination screen will appear:
Figure 2: Contact Edit for Voice Call
Enter the name for this destination (up to 14 characters) and in the Type field
select Voice. In the Phone # field enter the area code and telephone number. A
sample alarm telephone call is shown below:
“CELL682 Alarm Message”
“Low/High temperature alarm at “Unit Name”,
“Pin number xxxx”,
“input name”, is “xx” degrees “Fahrenheit/Celsius”,
“Level crossed limit of “xx” degrees”
“To acknowledge press 1”
Example:
CELL682 Alarm Message
High temperature alarm at “Jim’s Ice Cream”
Pin Number “1234”
“Freezer #5” is 38 degrees Fahrenheit
Level crossed limit of 36 degrees
To acknowledge press 1
