Cell682 User’s Manual
ChapTer 5: ouTpuT programmIng
The Cell682 has two relay outputs capable of switching up to 0.3A at 120VAC, or
1.0A at 24VDC. The outputs can be controlled in a number of ways both auto-
matically and manually. Some examples are listed below:
• Each relay can be manually turned on or off through the PC software or via the
Cell682 web page.
• Either relay can be set to turn on when a particular alarm occurs.
• Either relay can be set to turn on when any alarm occurs.
• Either relay can be set to turn on when any digital or any analog alarm occurs.
• One or both relays can be programmed to operate in pump control mode (sim-
plex/duplex) for fill or drain applications.
• A relay can be controlled automatically based on Dry Contact or Analog input
values using greater-than, less-than, or equal-to statements (See Chapter 7:
Machine-to-Machine Control).
• A relay may also be controlled by another Cell682 unit using machine-to-
machine control. This allows the Cell682 to be used for distant pump/well
control applications.

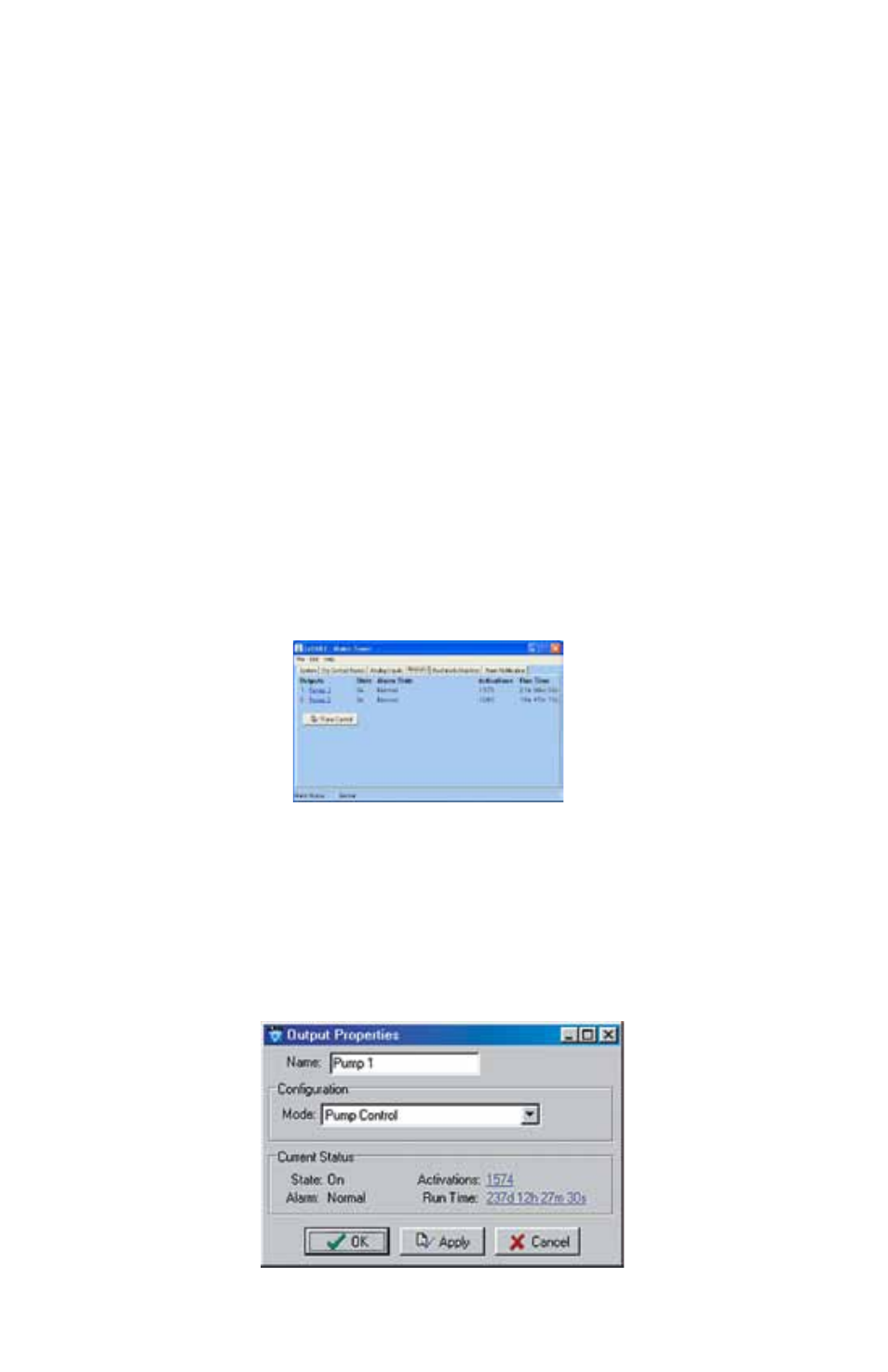

Figure 1: Outputs tab
setting the oUtpUt naMe
To set up the relay outputs, click on the Outputs tab. Next, click on the Name for
Output 1 (blue) to bring up the Output 1 Properties screen. Enter a name for the
output which describes the device that the output will be controlling.
Figure 2: Output Properties screen
