Operating the machine
39
Z6
Air outlet
Connection for the industrial vacuum cleaner
Z7
Cyclone cover
Removable cover with air outlet
Z8
Cyclone
Separates sample material from air current
Z9
Collecting vessel
Collecting tank for sieved sample material

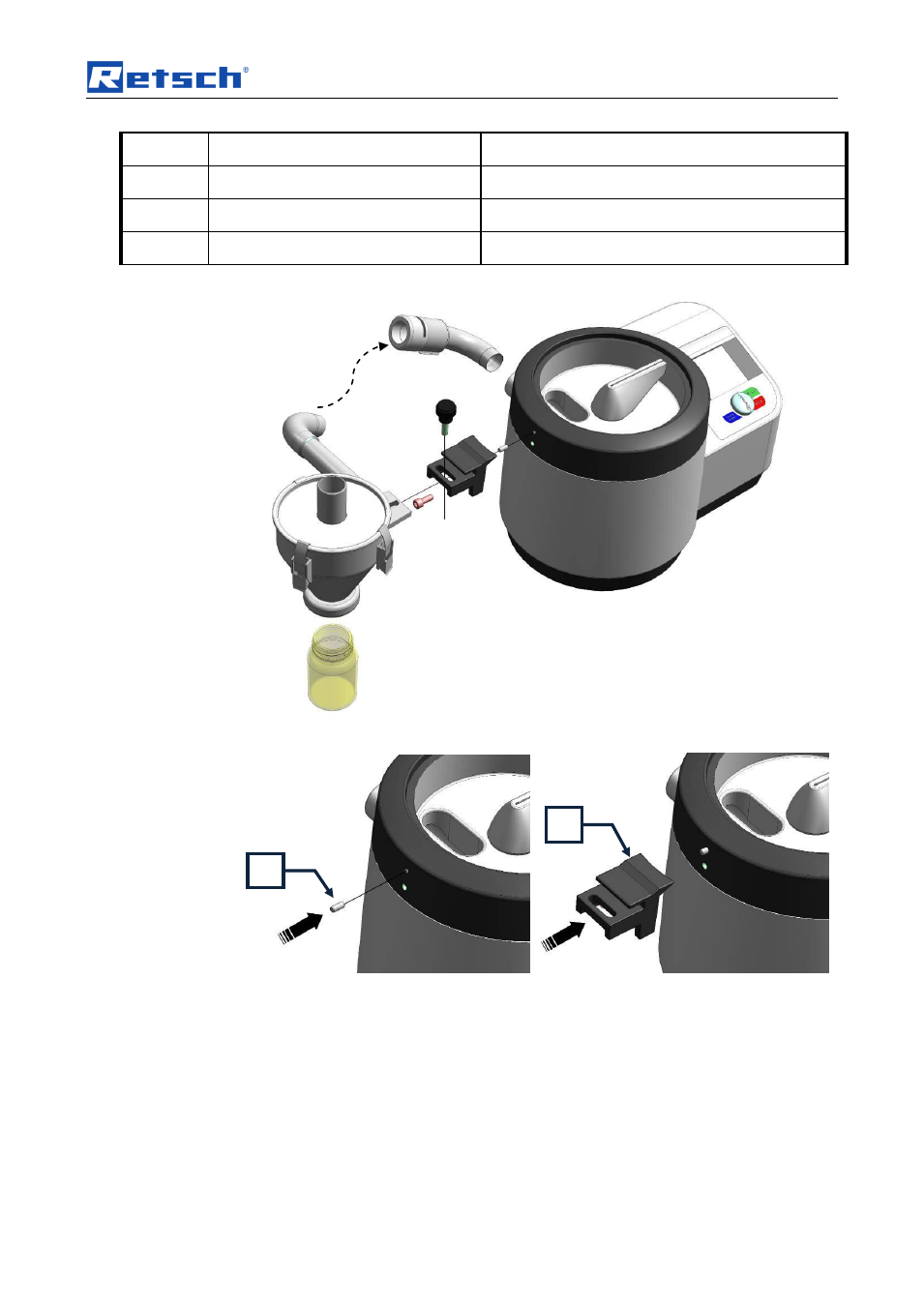

Fig. 16: Connection of the cyclone
Fig. 17: Steps 1 and 2
1.
Push the pin (Z2) into the upper opening on the outer edge of the housing.
2.
Push the cyclone support (Z3) onto the pin.
Z2
Z3
