Operating the machine – Retsch AS 200 jet User Manual
Page 26
Operating the machine
26
The air jet can be changed by turning the manual air jet setting (U).
[1] Air entry opening (V) closed maximum air jet
[2] Air entry opening (V) open minimum air jet
The difference in air pressure (differential pressure) between the air inlet and air
outlet at a given moment is displayed on the screen.
Pos : 9. 28 /0005 RET SCH Bedi enungs anleit ung en Kapitels ammlungen/ AS200J et /0007 AS200Jet Bedienung/ AS200J et Modul Ansc hließ en Ma nuell e Saug kraf t vers tell ung @ 3\ mod_1290606663037_9.doc x @ 24030 @ @ 1

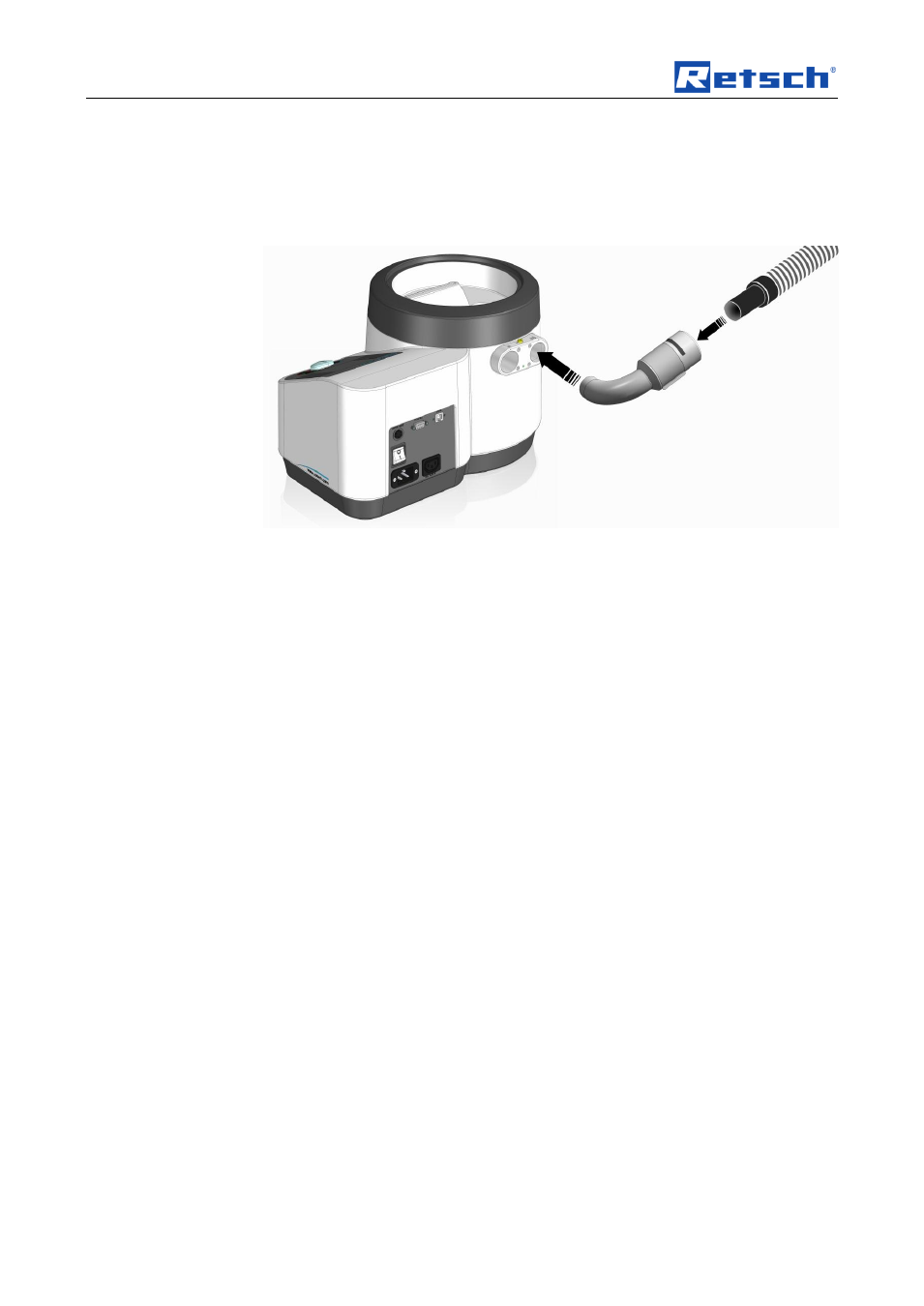

Fig. 13: connecting the manual suction force adjuster
