Operating the machine
23
5.6.1 Sieve lid for 50--mm/25--mm sieve height

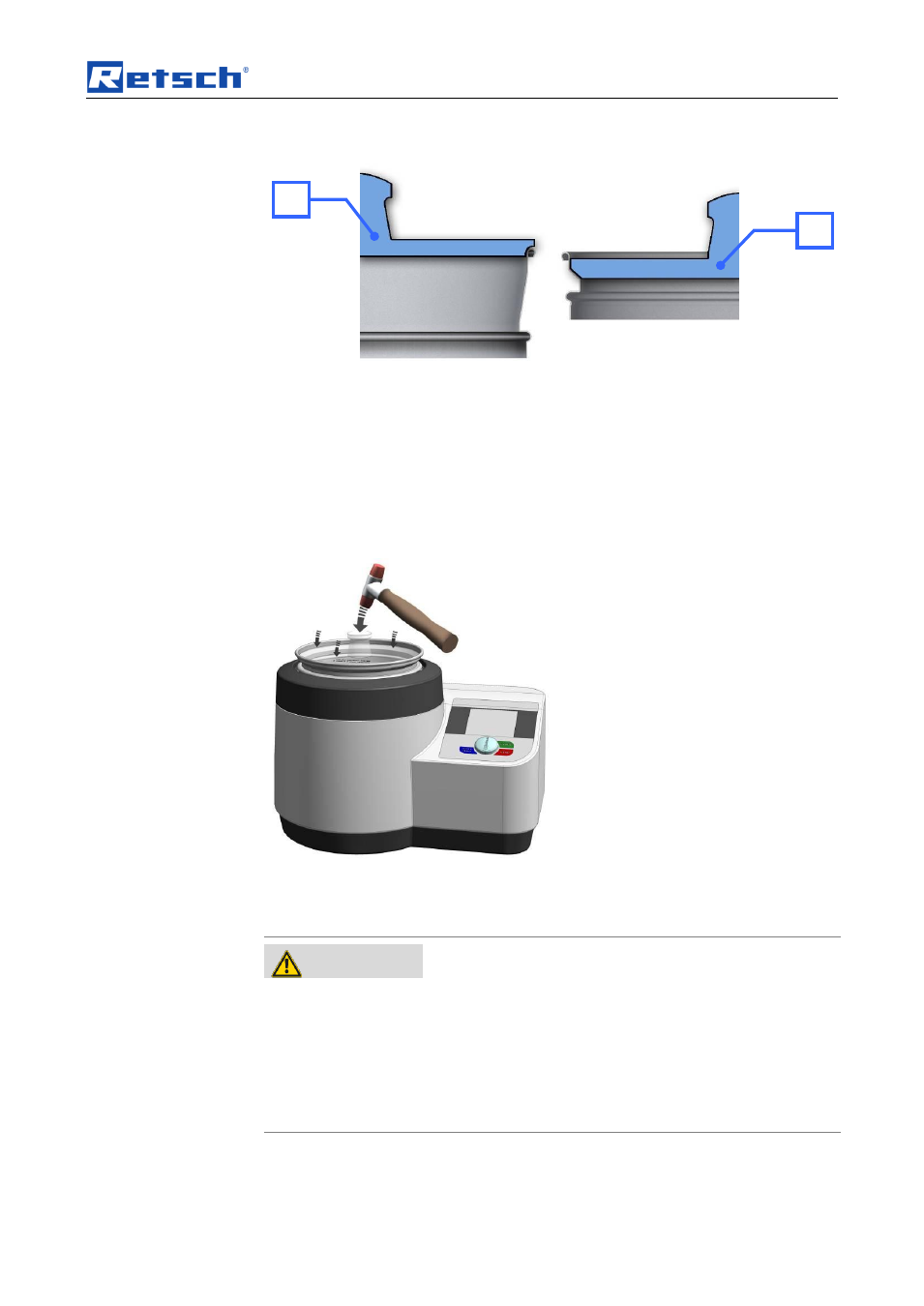

Fig. 8: Sieve lid
The sieve lid for 50-mm (2-inch) sieves lies on the top edge of the sieve (1).
The sieve lid for 25-mm (1-inch) sieves lies on the ledge inside the sieve (2).
Pos : 9. 17 /0020 Übersc hrift en/1.1 Ü bersc hriften/ 1. 1 Ü berschrif ten BDA/11 Sc honhammer – Anwendung und Gebrauc h @ 2\mod_1256728342926_9.doc x @ 17460 @ 2 @ 1
5.7 Soft-faced mallet
– Application and Use
Pos : 9. 18 /0005 RET SCH Bedi enungs anleit ung en Kapitels ammlungen/ AS200J et /0007 AS200Jet Bedienung/ AS200j et M odul Sc honhammer verwenden @ 2\ mod_1256728441363_9. doc x @ 17467 @ @ 1
Any caking that has built up during the sieving process is knocked off the inside of
the lid by means of the soft-faced mallet.
Tap lightly, striking the centre of the knob as far as possible.
Fig. 9: Using the soft-faced mallet
Pos : 9. 19 /0020 Übersc hrift en/1.1 Ü bersc hriften/ 1. 1 Ü berschrif ten BDA/11 Anschl uss des ext ernen I ndus trie-Saugers R etsc h @ 1\ mod_1239966706099_9.doc x @ 8160 @ 2 @ 1
5.8 Connecting the external Industrial Vacuum cleaner
Pos : 9. 20 /0025 War nhi nweis e/ W0007 WARNUNG Str omsc hlag D ef ekt es Stromkabel (AS200Jet) @ 3\ mod_1282734267244_9. doc x @ 22816 @ @ 1
WARNING
W0007
Electric shock
Faulty power cable
–
When you switch the device on there is danger of an electrical shock if the
power cable for the external suction device is damaged.
• Before use, check the power cable between the sieve device and the
suction device for possible damage.
• Never use a damaged power cable!
2
1
