Operating the machine
28
Pos : 9. 32 /0020 Übersc hrift en/1.1 Ü bersc hriften/ 1. 1 Ü berschrif ten BDA/11 Symbol e in der Dis playei nheit @ 1\ mod_1249991350589_9.doc x @ 13770 @ 2 @ 1
5.9 Symbols in the Display Unit
Pos : 9. 33 /0005 RET SCH Bedi enungs anleit ung en Kapitels ammlungen/ AS 200J et /0007 AS200Jet Bedienung/ AS200J et Modul Gr afi kdi spl ay M enü neu @ 7\ mod_1386159686424_9. doc x @ 53360 @ @ 1

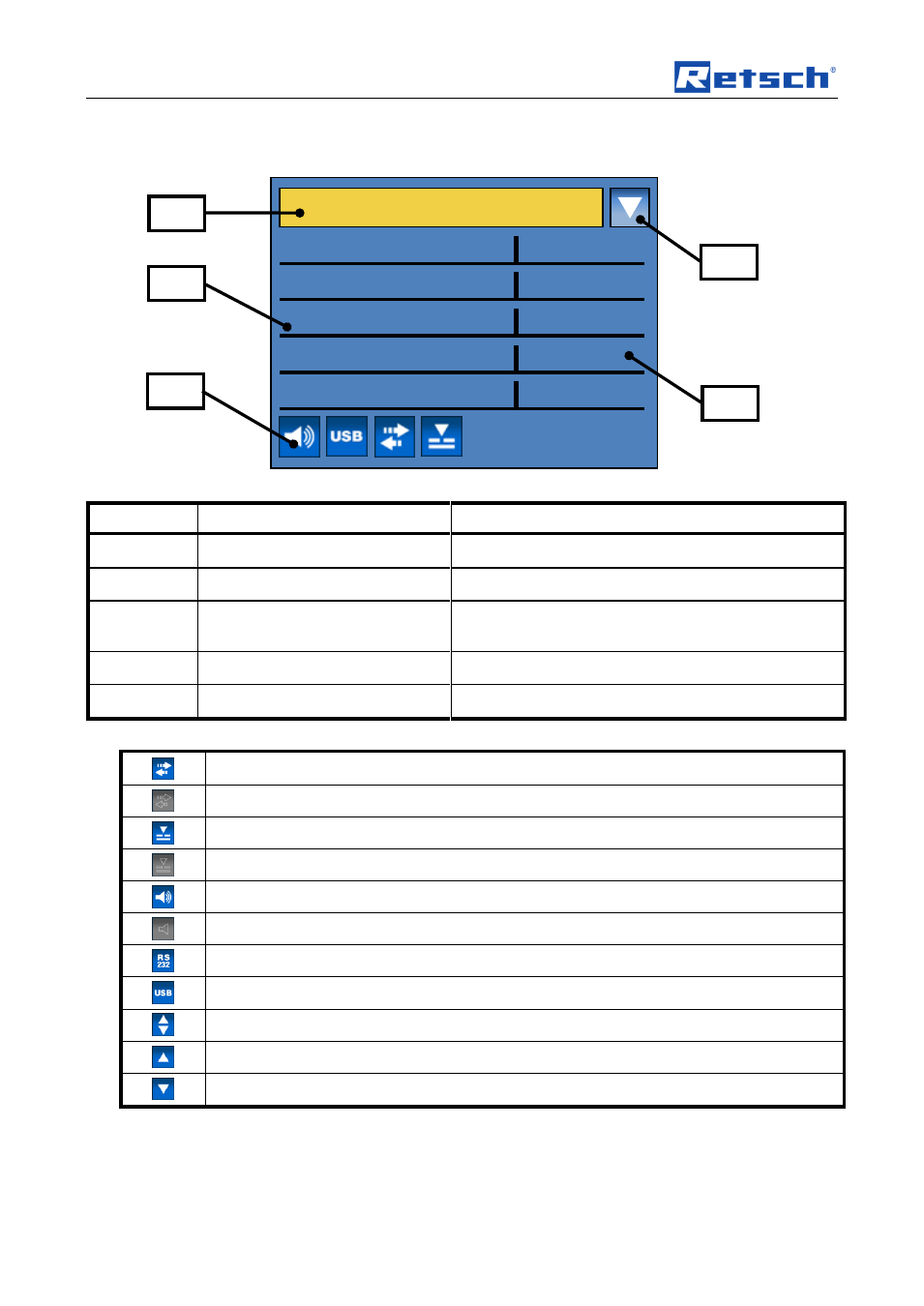

Fig. 1: View of the menu in the display unit
Element Description Function
C1 Menu navigation Switch between manual, program and basic settings
C2 Specification of sieve parameters Sieve parameter display and adjustment
C3 Icons for device functions Display of function statuses of sound, interface, Open
Mesh and automatic vacuum force adjustment
C4 Icon for scrolling direction Shows possible scrolling directions
C5 Sieve parameters Display of values
Pos : 9. 34 /0005 RET SCH Bedi enungs anleit ung en Kapitels ammlungen/ AS200J et /0007 AS200Jet Bedienung/ AS200J et Modul Symbole i n der Displ ayei nheit neu @ 1 \ mod_1239194092534_9. doc x @ 8098 @ @ 1
Open Mesh switched on (see Open Mesh chapter)
Open Mesh switched off
Automatic vacuum adjustment connected
No automatic vacuum adjustment
Signal tone on
Signal tone off
RS232 interface active
USB interface active
Scrolling up or down possible
Scrolling up only is possible
Scrolling down only is possible
Pos : 9. 35 /0005 RET SCH/ 0005 R ETSCH Bedienungsanlei tungen Kapit elsamml ung en/------- Seitenumbr uch ----------- @ 0\ mod_1222344373758_0. doc x @ 2386 @ @ 1
MANUAL
SIEVE DURATION
SPEED
VACUUM
OPEN MESH
SAVE PARAMETERS
00:10 mm:ss
05 rpm
0000 Pa
ON
C4
C1
C5
C2
C3
