5.19 Controlled suction force adjuster
Pos : 9. 58 /0005 RET SCH Bedi enungs anleit ung en Kapitels ammlungen/ AS200J et /0007 AS200Jet Bedienung/ AS200J et Modul Ansc hlus s des Motor-Reg el ventils @ 1\ mod_1240309232193_9. doc x @ 8194 @ @ 1

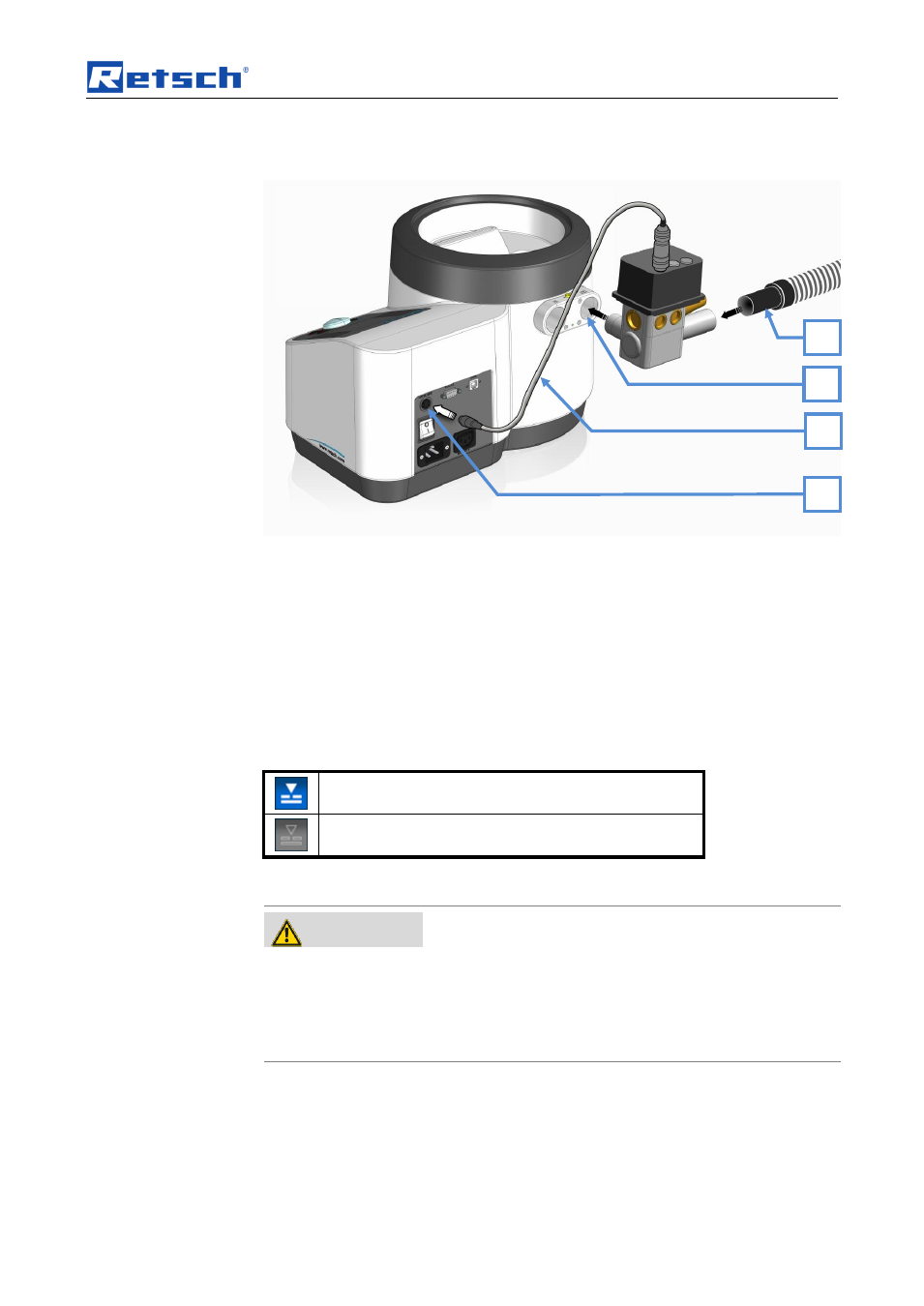

Fig. 14: Connecting the automatic suction force adjuster
The automatic suction force adjuster available as a Retsch accessory allows the air
jet force to be controlled automatically. The AS200jet measures the momentary
differential pressure and controls the automatic suction force adjuster accordingly.
•
Insert the automatic suction force adjuster into the air outlet channel (H) as
shown in the picture.
• Connect the automatic suction force adjuster’s control cable (SK) to the
control connection (J).
• Connect the industrial vacuum cleaner’s suction tube to the opening (IS).
As long as the automatic suction force adjuster’s control cable is connected, the
following symbol appears in the display:
Automatic vacuum force adjustment connected
No automatic vacuum force adjustment
Pos : 9. 59 /0020 Übersc hrift en/1.1 Ü bersc hriften/ 1. 1 Ü berschrif ten BDA/11 Z ykl on M ontage @ 2\ mod_1277451406744_9. doc x @ 20490 @ 3 @ 1
5.20 Cyclone assembly
Pos : 9. 60 /0025 War nhi nweis e/ W0015 WARNUNG Kabelbr uc h Stroms toß Er dung @ 4 \mod_1334064762171_9. doc x @ 27560 @ @ 1
WARNING
W0002
Danger to life through electric shock
–
An electric shock can lead to burns and to cardiac arrhythmias or to
respiratory arrest and cardiac arrest.
• The device may only be operated with plugs that have a protective
conductor (earthed).
SK
J
IS
H
