71
UNLOADING & ASSEMBLY
ATTACH HYDRAULICS AND ELECTRICAL
1. Attach barrel end (A) of shift cylinder to bracket
on hitch. Attach rod end (B) to bracket on frame
tube. Secure pins with cotter pins.
NOTE: It may be necessary to loosen a fitting
to allow extension of cylinder rod.
2. Attach lift cylinder hoses to hydraulic lines at
(N) and (P) on top of tongue.
NOTE: Connect hose from left lift cylinder to
left hydraulic line, right cylinder hose to right
hydraulic line.
3. Connect electrical wiring harness at (R).

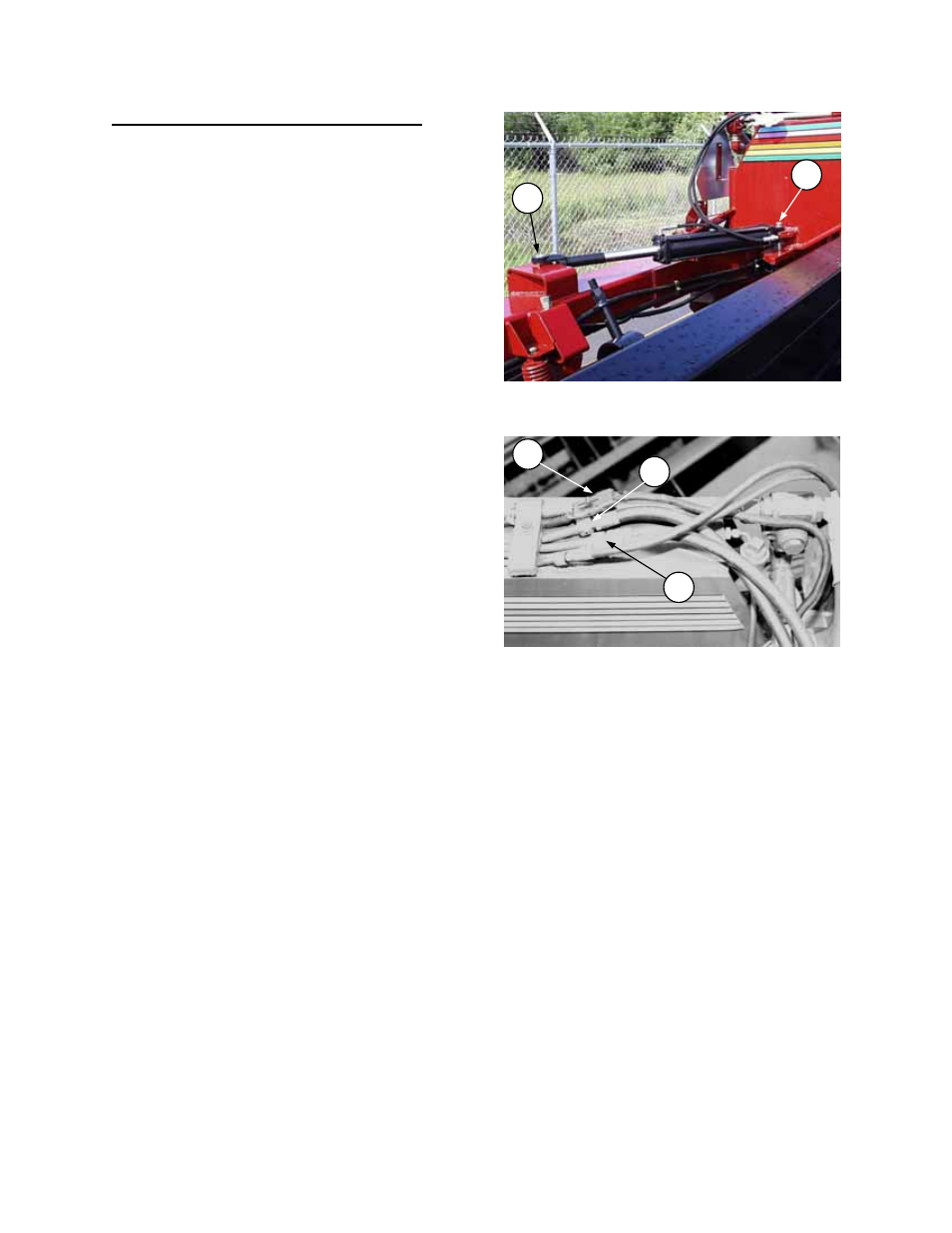

INSTALL SHIFT CYLINDER
A
B
ATTACH LIFT HOSES
AND ELECTRICAL HARNESS
N
P
R
