Maintenance/service – MacDon 5010 Mower Conditioner User Manual
Page 56
54
STRIPPER BAR ADJUSTMENT
MAINTENANCE/SERVICE
AUGER AND AUGER DRIVE
Stripper Bars
To adjust:

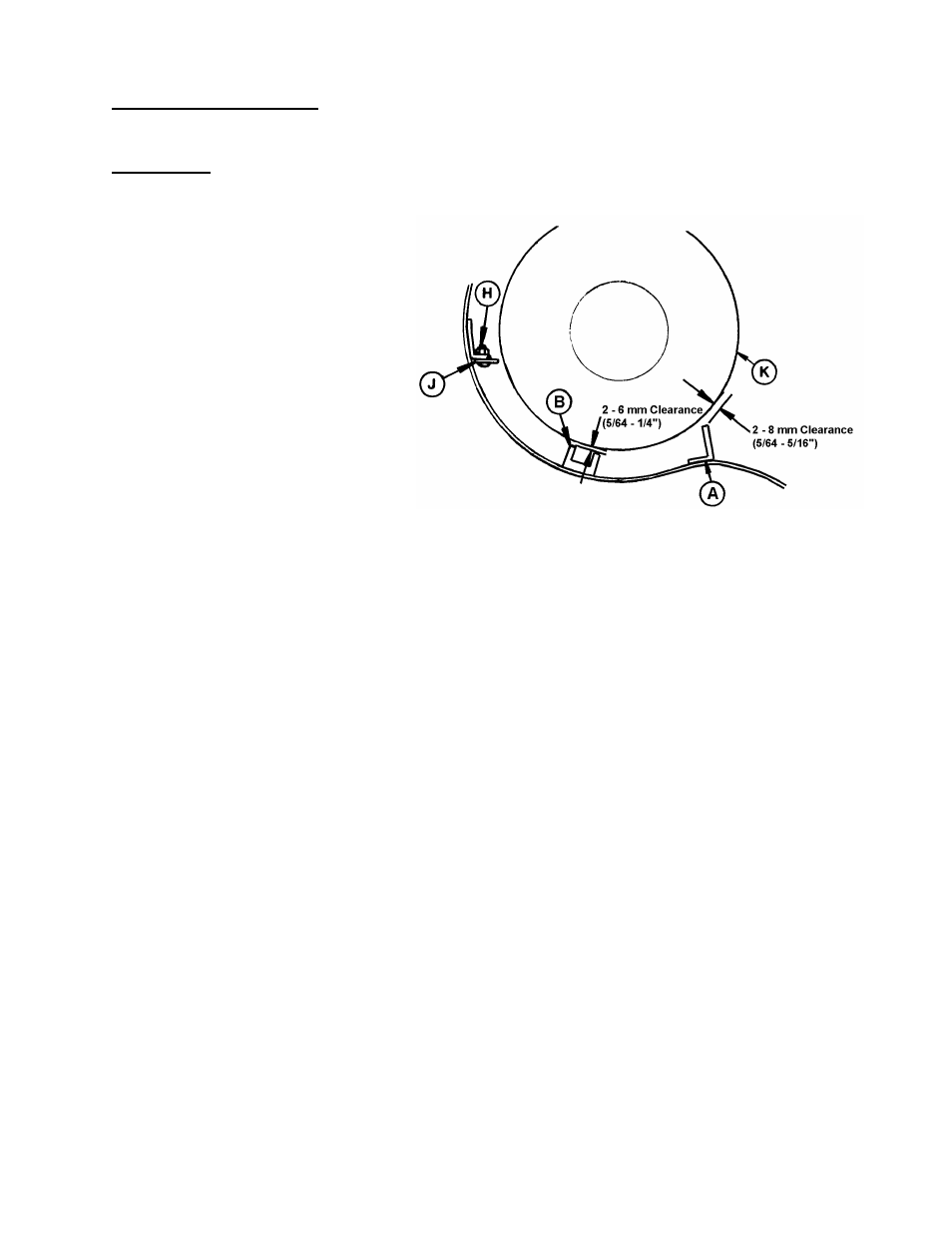

1. Position auger for clearance to strippers
(A) and (B), as shown.
2. Loosen bolts (H) along upper stripper
bar.
3. Slide extension bars (J) in or out to
obtain approximately 1/8 inch (3 mm)
clearance to auger flighting (K) along
entire auger length.
4. Tighten bolts (H).
