42
MAINTENANCE/SERVICE

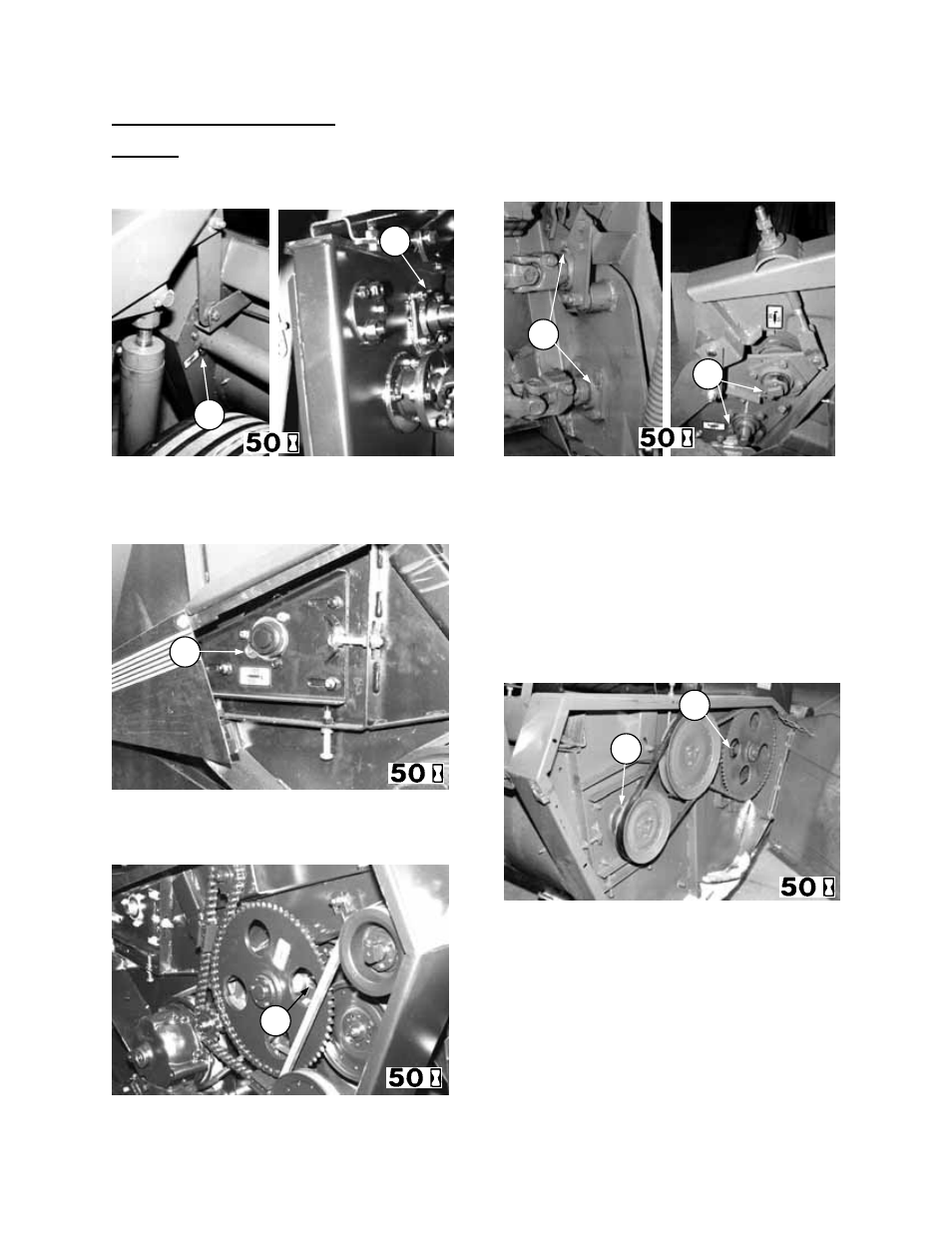

GREASING THE WINDROWER (continued)
50 Hours:
1. Main Drive Shaft Bearings (A) & (B)
- two fittings
2. Reel Shaft Bearings (C) & (D) - two fittings
3. Auger Shaft Bearings (E) & (F) - two fittings
4. Roll Shaft Bearings (G) & (H) - four fittings
MAIN DRIVE SHAFT BEARINGS
A
B
LEFT SIDE RIGHT SIDE
ROLL SHAFT BEARINGS
H
G
REEL SHAFT BEARING - LEFT SIDE
C
REEL AND AUGER BEARINGS - RIGHT SIDE
D
E
AUGER SHAFT BEARING - LEFT SIDE
F
