27
OPERATION
REEL SPEED
For best feeding of the crop into the auger, reel
speed should be just faster than ground speed.
This gently sweeps material across the sickle into
the auger.
The reel speed is factory set at 66 rpm.
With a pulley position exchange, other reel speeds
are possible. (See chart.) A slower reel speed will
reduce excessive crop carry-over, while a faster
reel speed will result in a more even stubble height
in down and tangled crops.
To change reel speed:
a. Slacken belt at tension adjuster (C) and
remove belt.
b. Remove three flange locknuts at position (A).
c. Remove three bolts and lockwashers at
position (B).
d. Position pulleys to achieve desired reel speed,
(see chart). Replace hardware.
NOTE: For 60 rpm reel speed it will be
necessary to purchase an additional 10 1/2 inch
O.D. pulley from your Dealer.
e. Replace reel drive belt and tighten. Check reel
drive chain tension. See Maintenance /Service
section for recommended belt and chain
tension.
9 ½" OD
Pulley Position
10 ½" OD
Pulley Position
Reel
Speed
B A 53 rpm
A B 66 rpm
none A & B 60 rpm
REEL SPEED CHART
(for positions (A) & (B) see photo below)
REEL POSITION
Reel position has been found to be a critical factor in achieving good results in adverse conditions. The reel
position is factory set for average straight standing crop. It can be adjusted both vertically and horizontally
(fore-aft) for different crop conditions. See the chart below for recommended reel position in unusual crop
conditions. (Continued next page.)
REEL POSITION CHART
Unusual Crop Condition Reel Position
· Crop down or lodged
Forward & down (also increase reel speed)
· Wet or dead material collects Back & down (close to guards)
on cutterbar, plugging sickle.
·
Short crop. Back
· Thick stemmed or heavy standing crop. Up and forward

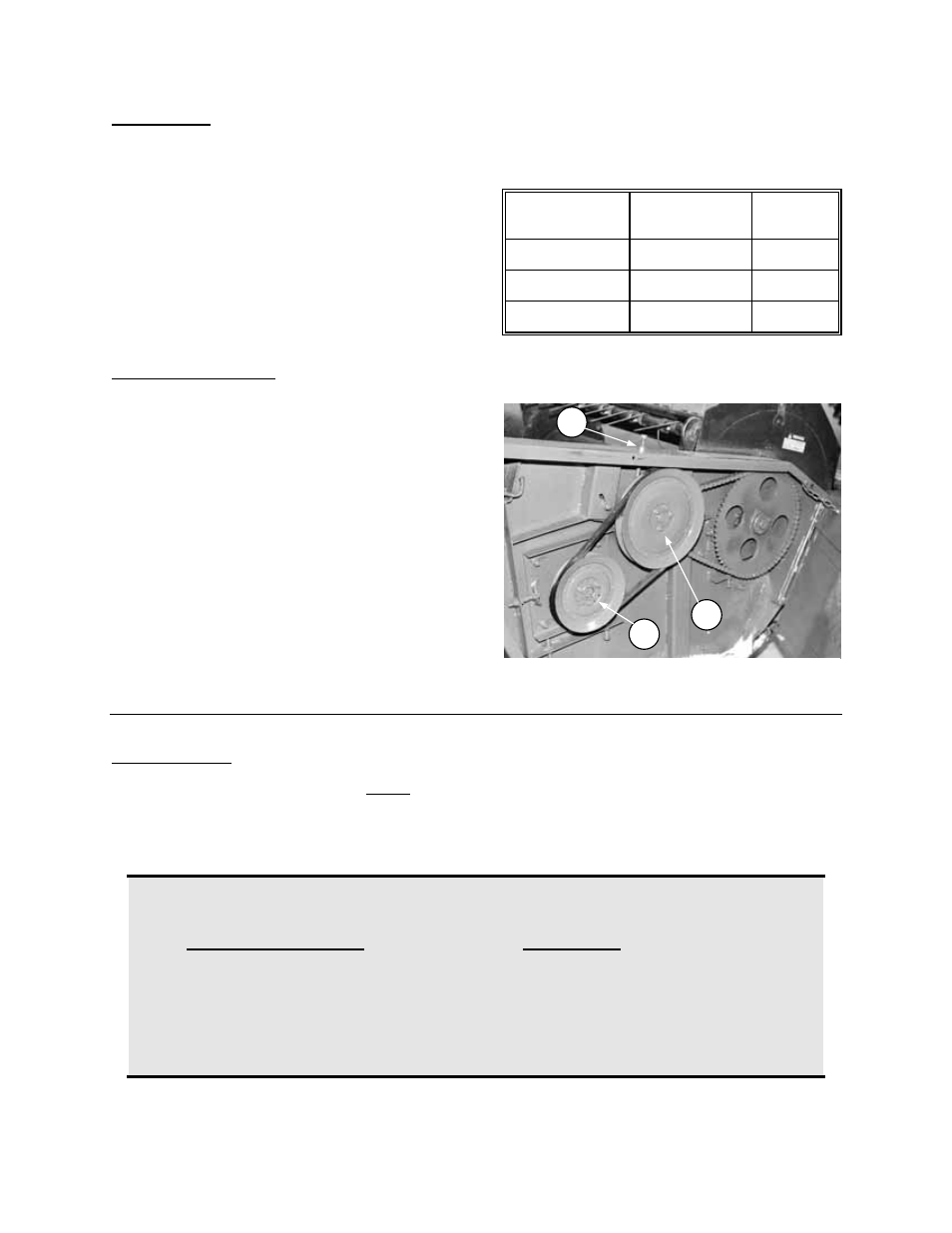

CHANGING REEL SPEED
53 rpm CONFIGURATION SHOWN
A
B
C
