Adapter Mounting Instructions
for Cat Lexion Combines
ATTACHING ADAPTER TO COMBINE (continued)
4. Install pump as follows:
a. Remove pump from storage position (A) on adapter
and slide pump onto R/H feeder house output shaft.
NOTE: The first time the pump is installed, hoses
may have to be loosened for proper alignment.
Tighten hoses after installation.
b. Engage pump torque arm on support arm on
combine and secure with lynch pin at (B).
5. Tighten combine feeder chain and check
clearances.

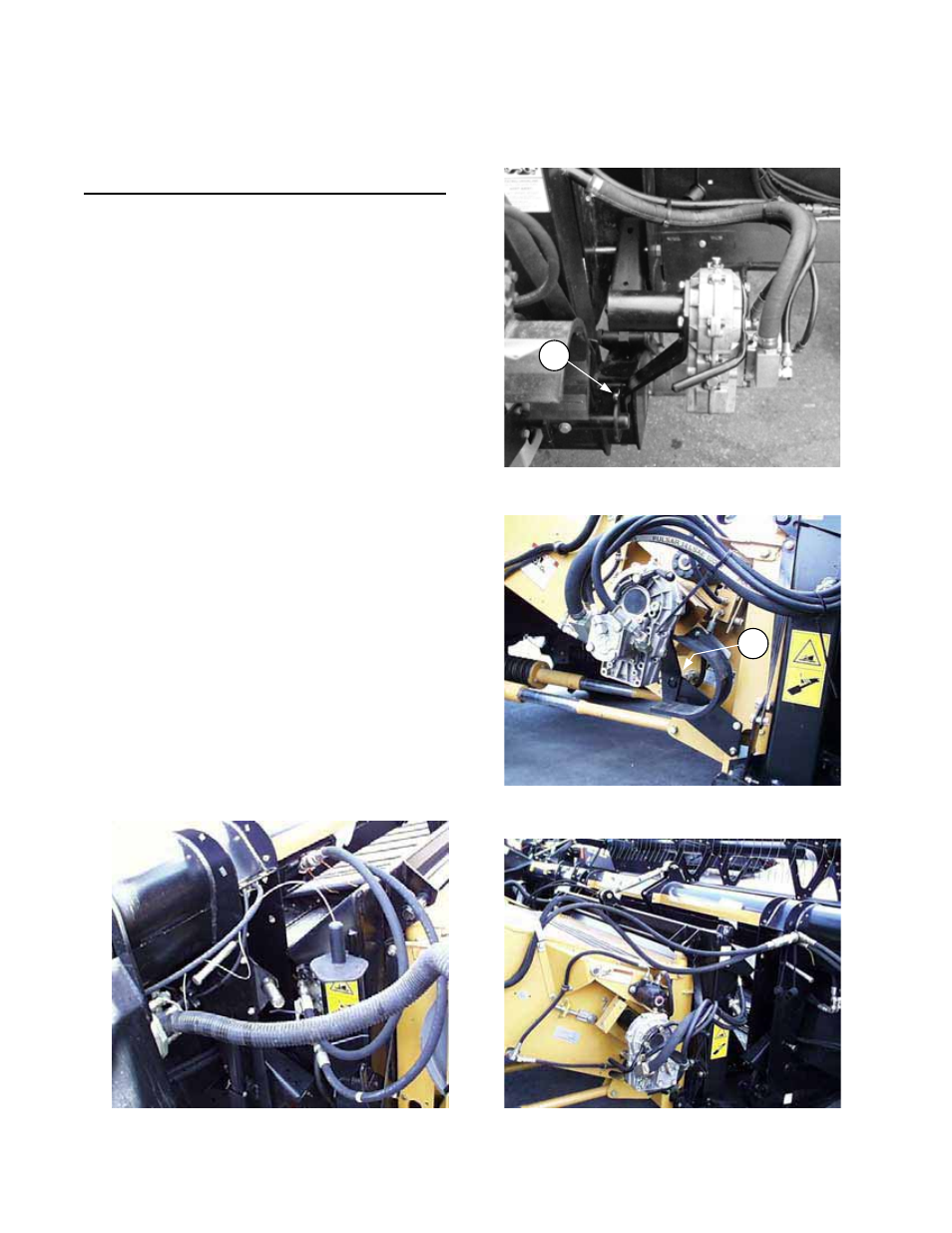

PUMP STORAGE ON ADAPTER
A
PUMP IN WORKING POSITION
B
CONNECTIONS – LEFT SIDE CONNECTIONS – RIGHT SIDE
