57
Adapter Mounting Instructions
for New Holland Combines

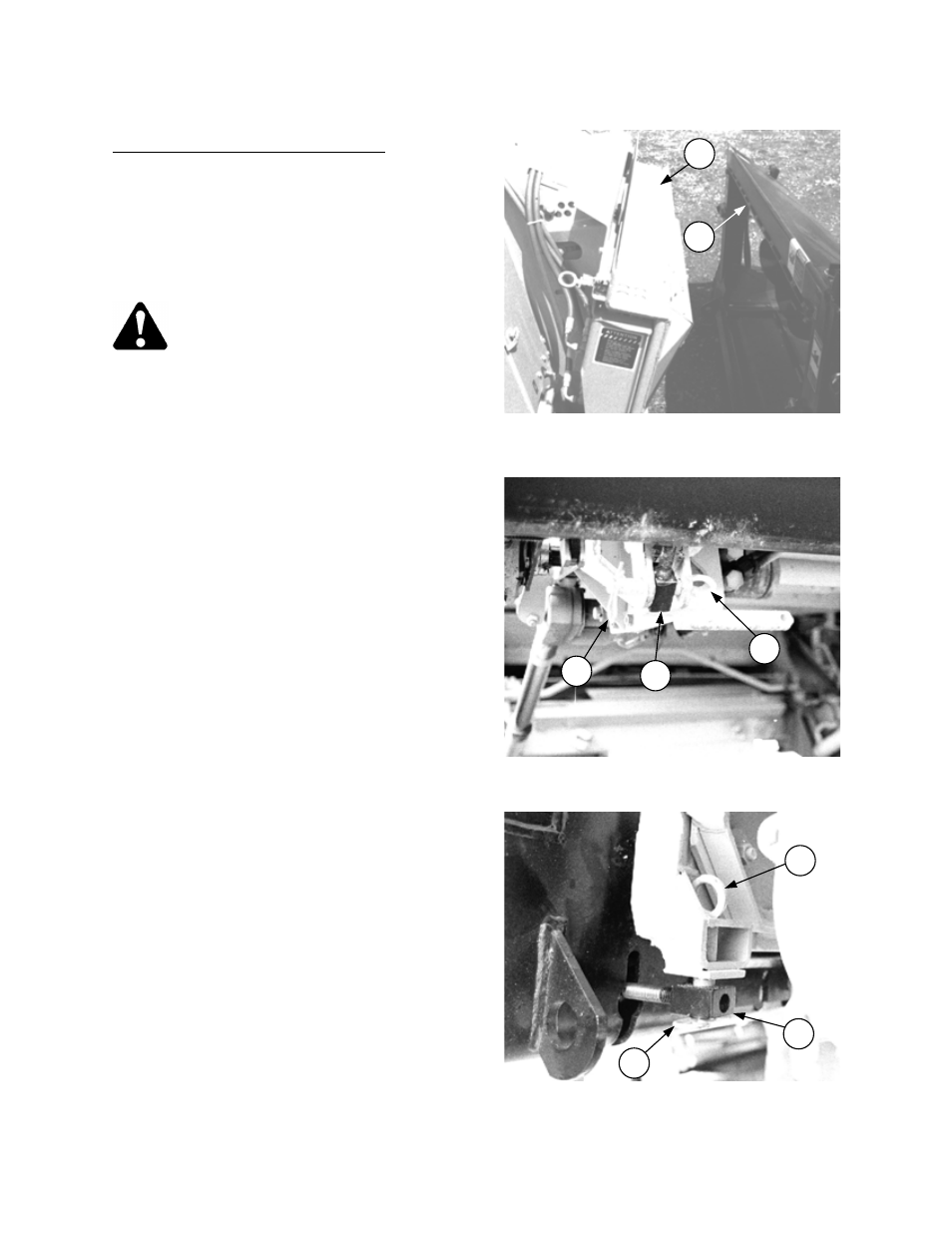

ATTACHING ADAPTER TO COMBINE
1. Slowly drive combine up to adapter until feeder
saddle (C) is directly under adapter top cross-
member (D).
2. Raise feeder house to lift adapter, ensuring
feeder saddle is properly engaged in adapter
frame. Raise adapter fully.
WARNING: To avoid bodily injury or
death from unexpected start-up or
fall of raised attachment; stop
engine, remove key and engage lift cylinder
stop before proceeding with hook-up.
3. Raise eye bolt (E) up to feeder house. Turn eye
bolt (E) until pin (F) on feeder house lines up
with hole in eye bolt (E).
4. Install pin (F) through feeder house frame and
eye bolt (E). Lock with hair pin (G).
ALIGN FEEDER SADDLE UNDER
ADAPTER FRAME
C
D
ENGAGE LOCK PINS - BOTH SIDES (TX)
F
E
G
ENGAGE LOCK PINS - BOTH SIDES (TR)
F
G
E
