Adapter Mounting Instructions
for Cat Lexion Combines
ATTACHING ADAPTER TO COMBINE

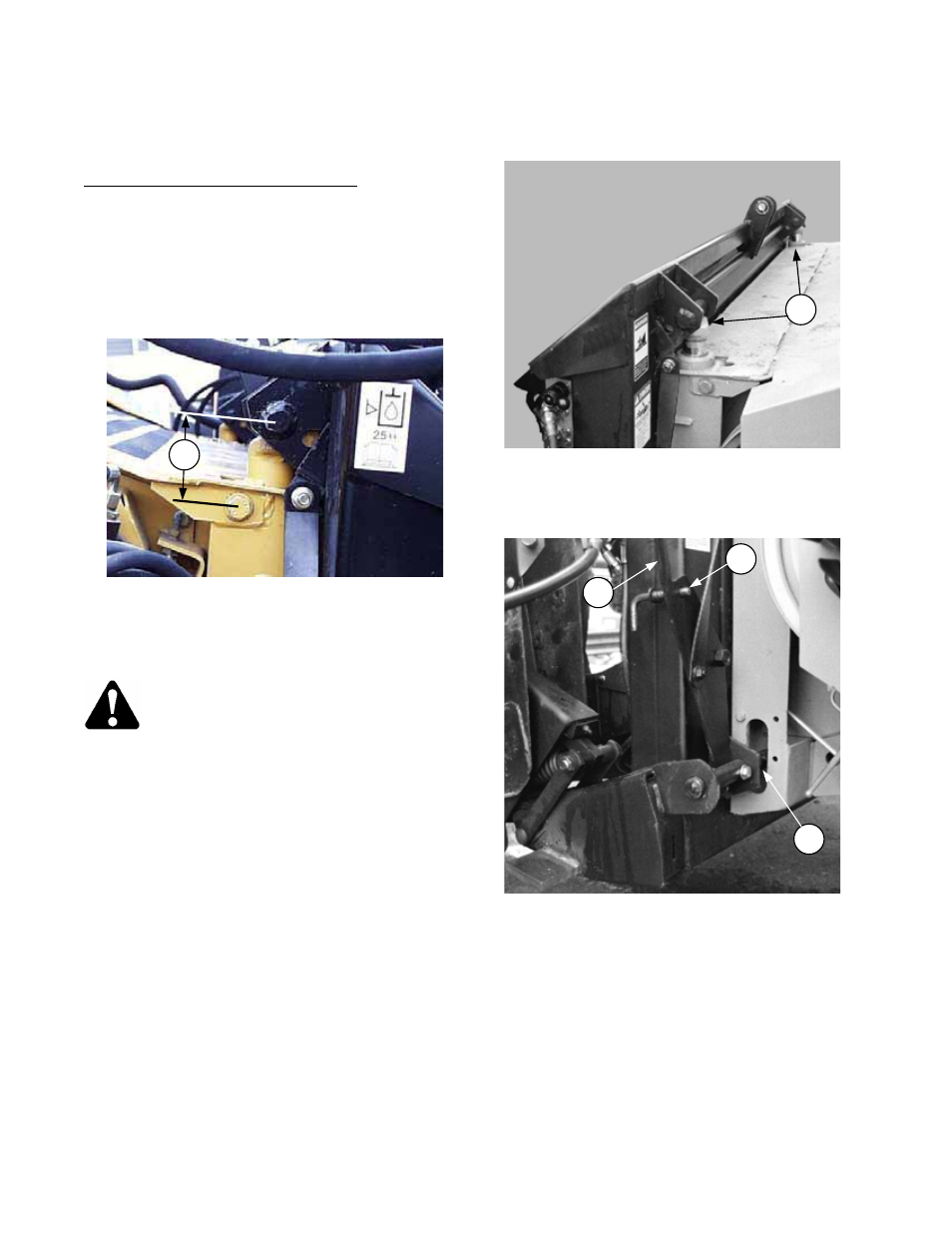

1. Slowly drive combine up to adapter until lift lugs (C)
are hooked behind upper latches on adapter.
NOTE: For non-CAC feeder houses, check that
dimension (E) is 148 mm (5.83”). This dimension
may be 103 mm (4.05”). If so, modify header
mounts per Service Bulletin 9943, or order kit
B4208 from your MacDon Dealer.
2. Raise feeder house to lift adapter, ensuring lift lugs
are properly engaged. Raise adapter fully.
WARNING: To avoid bodily injury or
death from unexpected start-up or fall
of raised attachment; stop engine,
remove key and engage lift cylinder stop before
proceeding with hook-up.
3. Release spring-loaded pin and pull handle (B)
outward to engage lower pins (A). Release spring-
loaded pin to engage in slot (D).
E
CHECK DIMENSION – NON C.A.C. FEEDER
ENGAGE LUGS BEHIND UPPER LATCHES
C
ENGAGE LOCK PINS
A
D
B
